24V WIFI Programmable Digital Heating Alexa Thermostat STN705W Air Conditioner Smart Thermostat
STN705W is the connected single stage member of the STN700 platform. It works with Alexa, runs 7 day, 5/1/1 or non-programmable schedules and controls up to 1 heat and 1 cool on conventional equipment. Because the mode is chosen in setup, the same connected stat serves a villa that wants a full schedule and a hotel room that wants none.
Key Benefits
- Alexa voice control alongside app and keypad access
- Three schedule modes in one unit reduce the number of connected SKUs to stock
- Electric or gas configuration set on site rather than at the order stage
- White, blue or green backlight to match the room
- Shares the 120 x 98 x 28 mm body with the rest of the STN700 platform
Problems It Solves
- Separate connected SKUs for programmable and non-programmable rooms
- Site visits just to change a setpoint
- Mixed thermostat body sizes across one building
- Radio paperwork gaps on connected products
Who It Is For
- Smart home integrators
- Hospitality and facilities teams
- Distributors adding a connected model to an existing range
- OEM buyers needing an FCC documented WiFi single stage stat
Technical Features
- Universal WiFi control that works with Alexa
- Up to 1 heat and 1 cool conventional
- 7 day, 5/1/1 or non-programmable, selected in setup
- Easy menu driven programming with wake, leave, return and sleep icons
- Temperature range 32 F to 99 F (1 C to 40 C), setpoint range 44 F to 90 F (7 C to 32 C)
- Display accuracy +/-1 C at 20 C
- Power supply 24 VAC (18 to 30VAC), 50/60 Hz hardwired with common wire
- ABS and PC housing, 120 x 98 x 28 mm, white, blue or green backlight, FCC
Specifications
| Model | STN705W |
| Programmability | 7 Day,5/1/1 or Non-Programmable |
| Power Supply | 24 VAC |
| Switchable Voltage | 24VAC (18~30VAC), 50/60 Hz for hardwire (common wire) |
| Temperature Range | 32℉ to 99℉ (1℃ to 40℃) |
| Setpoint Range | 44℉ to 90℉ (7℃ to 32℃) |
| Display accuracy | ±1°C (at 20°C) |
| Screen | LCD |
| Material | ABS+PC |
| Dimension | 120 x98 x28 mm |
| Application | Villa, Hotel, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket |
| Type | Air Conditioning/Heating/HVAC Systems |
| Feature | Save Energy |
| Certification | FCC |
| Warranty | 1 Year |
| After-sale Service | Online technical support, Return and Replacement |
Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.
Application Scenarios
- Villas and apartments with voice assistants already in use
- Hotels and office buildings needing remote adjustment
- Hospitals and schools where the operator sets the pattern centrally
- Malls, sports venues and supermarkets on single stage plant
Quality Control
- WiFi association and voice service link verified on every unit
- All three schedule modes exercised during the functional test
- Radio performance records kept against the FCC file
Customisation Options
- Default schedule mode preset at the factory
- App and voice skill branding on ODM projects
- Backlight white, blue or green
- Housing marking, manual and carton to the buyer's artwork
How It Compares
Installing And Commissioning
Step 1
Confirm a common wire is present, since the unit runs on 24 VAC hardwired
Step 2

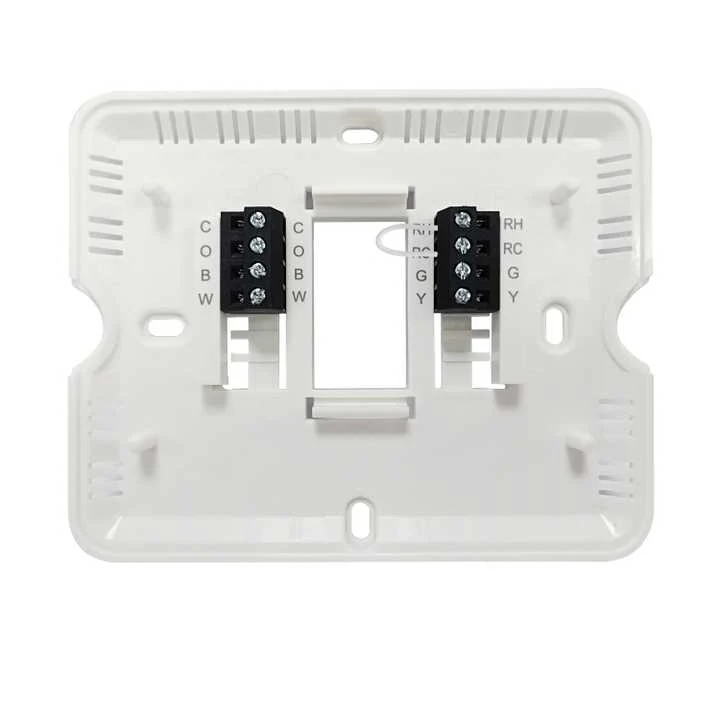

Land the conductors on the colour coded terminals
Step 3
Choose electric or gas configuration in setup
Step 4
Select 7 day, 5/1/1 or non-programmable and enter the periods
Step 5
Join the thermostat to WiFi and link the Alexa account
24V WIFI Programmable Digital Heating Alexa Thermostat STN705W Air Conditioner Smart Thermostat: Buyer Questions
Does the STN705W work with Alexa?
Yes, it is listed as working with Alexa, alongside app and keypad control.
Can it be used without a schedule?
Yes. 7 day, 5/1/1 and non-programmable are all selectable, and we can preset the default.
What power supply does it need?
24 VAC (18 to 30VAC), 50/60 Hz hardwired, so a common wire is required.
How many stages does it control?
Up to 1 heat and 1 cool conventional.
What are the dimensions?
120 x 98 x 28 mm.
What radio approval does it hold?
FCC. Tell us the destination market and we will confirm the rest of the documentation.
