STN725W heat pump WiFi thermostat with dual band connection

WiFi Smart Thermostat 24V WiFi Smart Thermostat Heat Pump Thermostat Electric and Gas Thermostat Programmable Thermostat Non-Programmable Thermostat

Heat Pump 2 Heat 1 Cool WIFI Thermostat

Name: Heat Pump 2 Heat 1 Cool WIFI Thermostat
Brand: Smart Therm

STN725W is the connected heat pump thermostat that joins both 2.4 GHz and 5.0 GHz networks, which matters on sites where the 2.4 GHz band is saturated or where guest networks run 5 GHz only. It works with Alexa, drives heat pump staging plus up to 2 heat and 2 cool conventional, and can be set to 7 day, 5/1/1 or non-programmable.

Request A Quote Email For A Datasheet

Key Benefits

Joins 2.4 GHz and 5.0 GHz networks, unlike most connected thermostats
Works with Alexa for voice control alongside the app
Heat pump staging plus up to 2 heat 2 cool conventional
Three programme modes from one connected part number
Measurement accuracy +/-1 C at 20 C

Problems It Solves

Connected thermostats that will not join a 5 GHz network
Congested 2.4 GHz bands causing drop-outs
Separate connected SKUs for scheduled and unscheduled rooms
Heat pump staging unsupported by generic smart stats

Who It Is For

Smart home integrators
Facility teams on modern wireless networks
Heat pump installers on connected projects
OEM buyers needing dual band WiFi

Technical Features

Universal WiFi on 2.4 GHz and 5.0 GHz, works with Alexa
Heat pump control plus up to 2 heat and 2 cool conventional
7 day, 5/1/1 or non-programmable
Temperature range 32 F to 99 F (1 C to 40 C), control range 44 F to 90 F (7 C to 32 C)
Measurement accuracy +/-1 C at 20 C

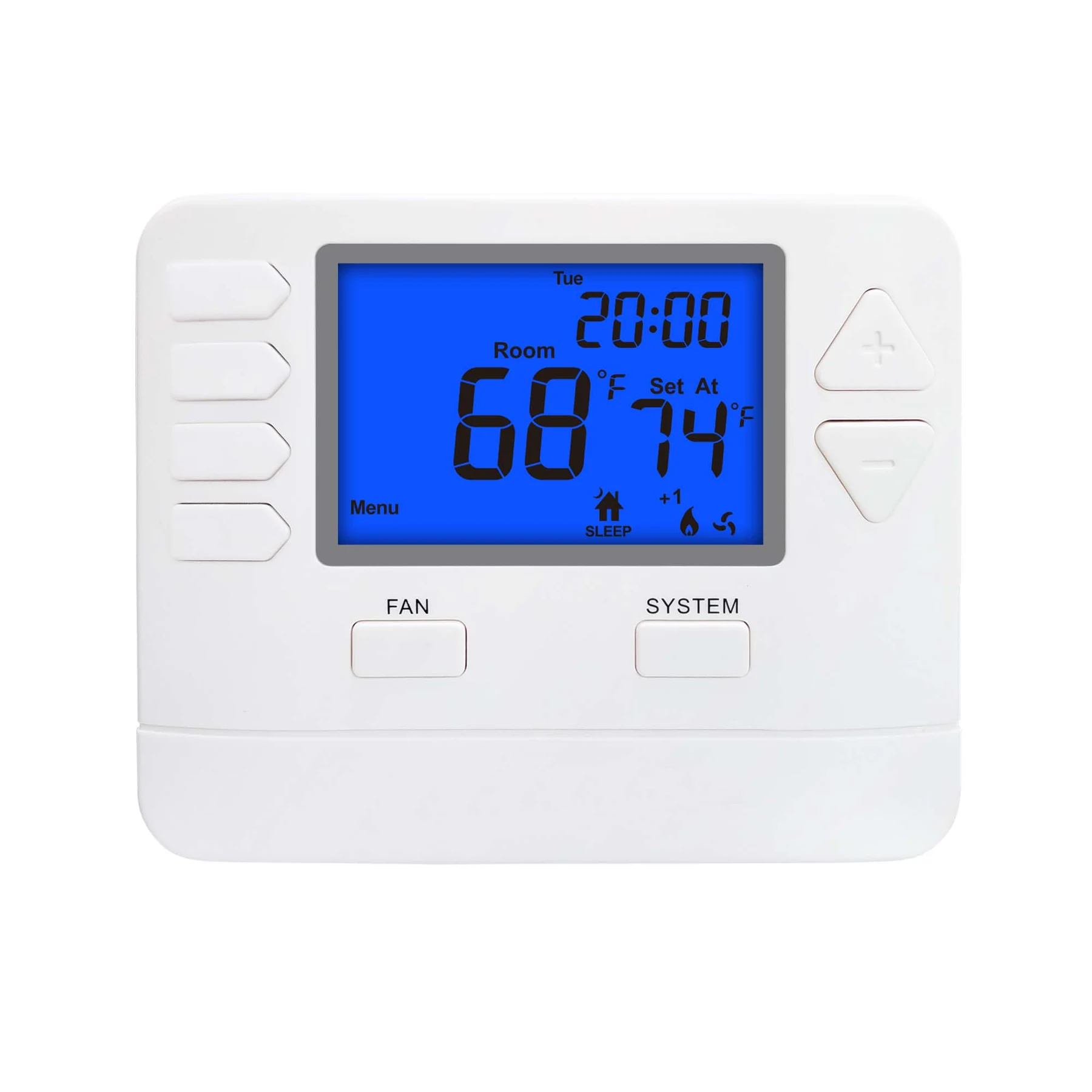

Easy menu driven programming with wake, leave, return and sleep icons

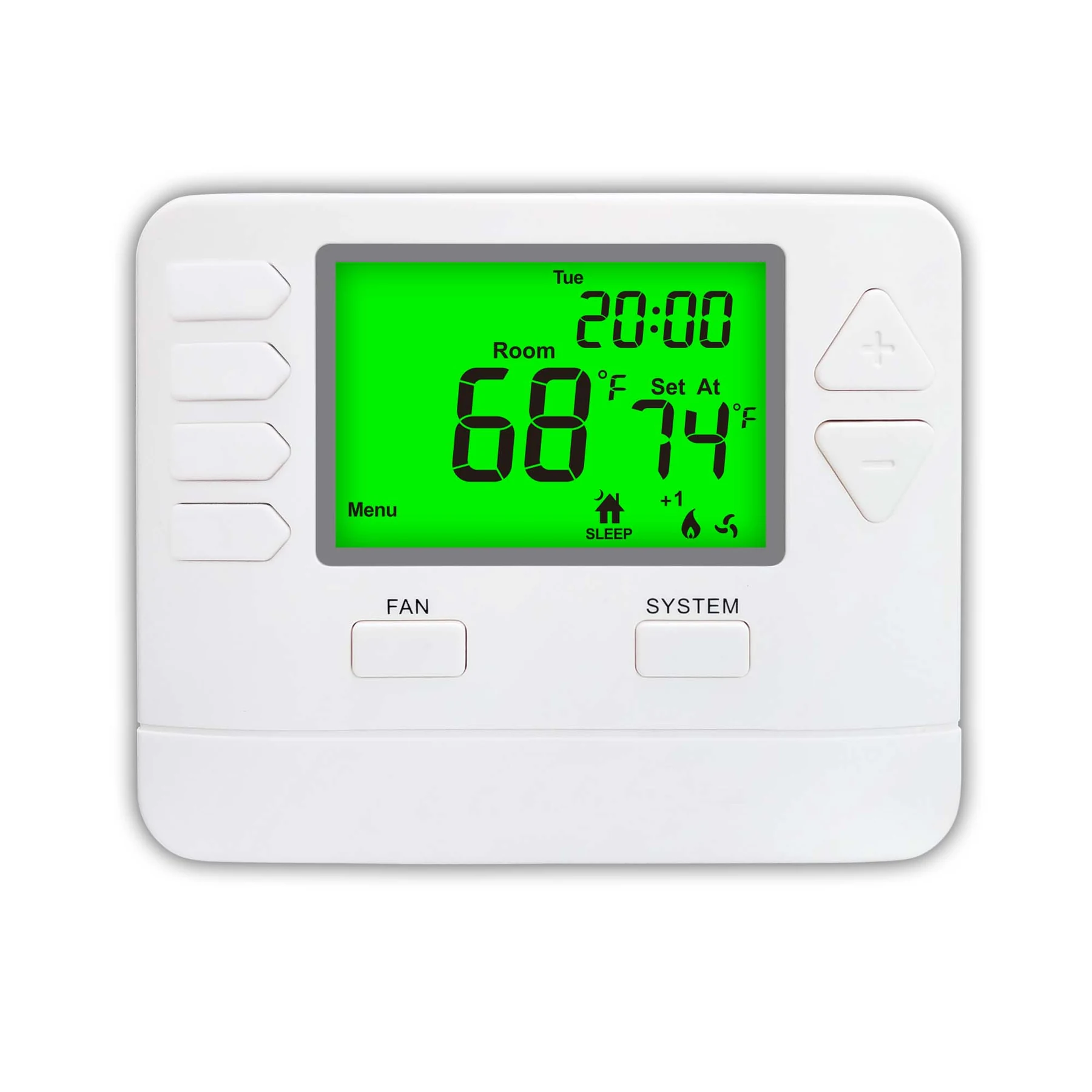

Electric or gas configurable, white, blue or green backlight
Power source 24VAC, dimensions 120 x 98 x 28 mm

Specifications

Programmability	Programmable
Power Source	24VAC
Temperature Range	32˚F-99˚F (1°C-40°C)
Control Temp.Range	44˚F-90˚F (7°C-32°C)
Temp.Meas.Accuracy	±1°C (at 20°C)
Dimension	120 x98 x28 mm

Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.

Application Scenarios

Buildings where the 2.4 GHz band is congested
Sites running 5 GHz only wireless networks
Heat pump homes with voice assistants
Estates mixing heat pump and conventional plant

Quality Control

Each unit joined to both a 2.4 GHz and a 5.0 GHz test network
Voice service link verified before packing
Staging outputs exercised across heat pump and conventional modes

Customisation Options

App and voice skill branding on ODM projects
Default programme mode preset at the factory
Backlight white, blue or green
Housing marking, manual and carton

Comparison

How It Compares

STN721W

STN725W adds full scheduling and a second cooling stage, where STN721W is non-programmable with up to 2 heat 1 cool.

STN725 wired version

STN725W adds dual band WiFi and Alexa on the same 120 x 98 x 28 mm body.

Use guide

Installing And Commissioning

Step 1

Confirm a 24VAC supply with a common wire is available

Step 2

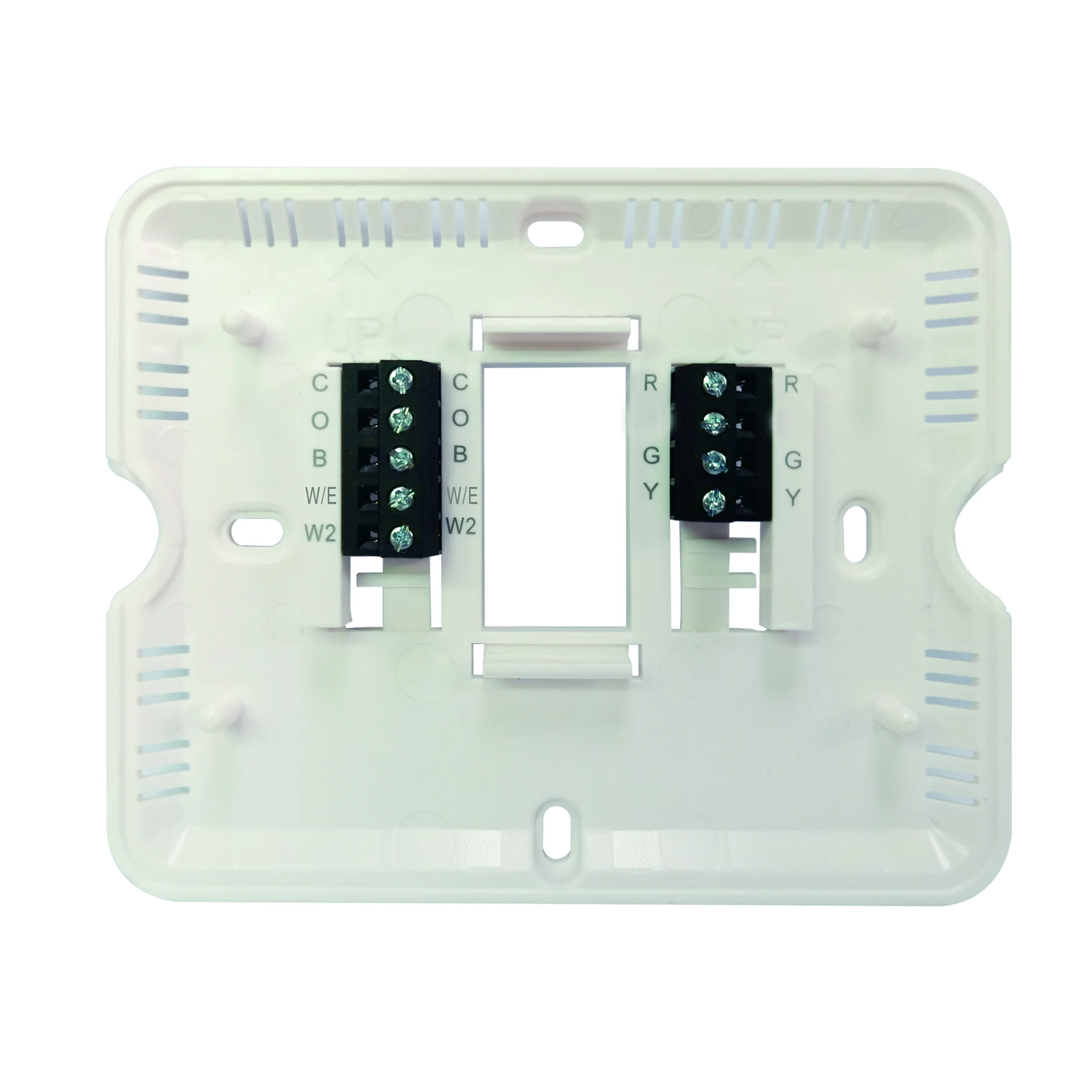

Land the conductors on the colour coded terminals

Step 3

Select heat pump or conventional staging in the installer menu

Step 4

Join the thermostat to either the 2.4 GHz or 5.0 GHz network

Step 5

Choose the programme mode and link the Alexa account
