Tractor Light 5 Inch 90W

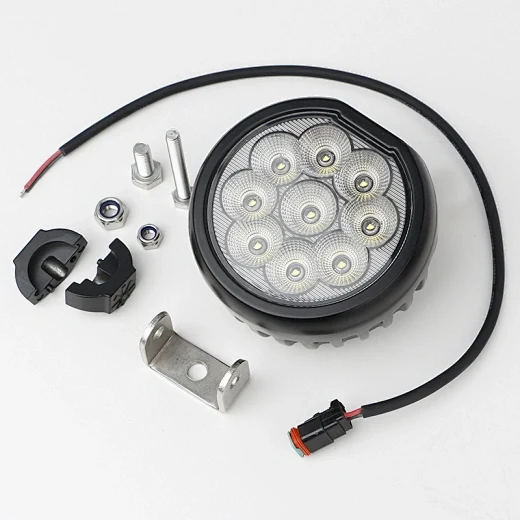

The SLL-0701-90 is a 5 inch round LED tractor light designed for heavy machinery that operates in harsh conditions, including vibration, dust, rain, and extreme temperatures. It delivers 7200 effective lumens with a flood or spot beam option, using nine 10W Osram LEDs to illuminate the immediate work area around forestry and construction equipment. The die-cast aluminium housing with UV-resistant polycarbonate lens and IP68 sealing ensures long-term reliability in outdoor environments.
- 90W real power draw with 7200 effective lumens for clear visibility in low-light and dusty conditions
- Flood or spot beam options allow matching the light to the task, from close-range work to distant target illumination
- IP68 sealing and a durable polycarbonate lens prevent water and dust ingress during pressure washing and field use
- Die-cast aluminium housing with UV-resistant polyester powder coating resists corrosion and fading over time
- Operates across 9–32V DC, covering both 12V and 24V vehicle systems without requiring different part numbers
Where This Lamp Is Used
- Front and side lighting on forestry tractors and harvesters operating at night in dense woodland
- Auxiliary lighting on excavators and loaders where vibration from digging breaks standard sealed lamps
- Work area illumination on construction site vehicles that are frequently washed with water and cleaning agents
- Lighting on utility and service vehicles used in remote areas with no reliable power grid or infrastructure
- Mounting on machinery with limited space where a compact 5 inch round light fits within tight clearance zones
Who It Is For
- Machinery OEMs integrating lighting into production line builds with consistent mounting patterns
- Distributors sourcing a single part number that works on both 12V and 24V fleets to reduce SKU count
- Fleet operators replacing halogen lights that fail under vibration and draw excessive current
- 4x4 and agricultural accessory brands developing a private label lighting range with beam flexibility
- Equipment dealers fitting lights on used or refurbished machines where reliability and long life are critical
Problems It Solves
- Halogen lights fail quickly under vibration and draw significantly more current than LED alternatives
- Cheap sealed lights let water in through the cable entry or lens seal, leading to fogging after a few wash cycles
- Narrow beam lights leave the near edge of the machine dark, increasing the risk of operator error
- Lights that do not support 12V and 24V systems require two separate SKUs, increasing inventory complexity
- Exposure to UV and salt spray causes painted housings to fade or peel, reducing both appearance and protection
Technical Features
- Nine 10W Osram LEDs with a real power draw of 90W and a maximum rating of 90W
- Flood beam pattern with a 1 lux reading at 60 meters; spot beam available as an option
- Semi-gloss black UV-resistant polyester powder coating over the full housing

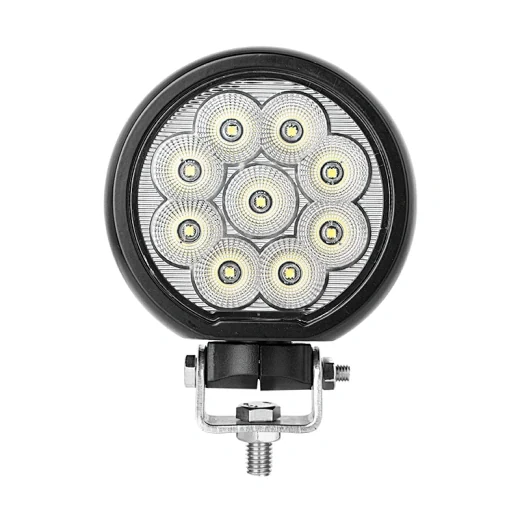

- 360 degree adjustable mounting with a 5 inch diameter base for upright or pendant installation
- Bare wire lead of 40cm as standard with Deutsch connector available on request
- Overvoltage and overheat protection built into the internal circuitry
- Operating window of -40 to +85 degrees Celsius, suitable for extreme cold and hot environments
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-0701-90 |
|---|---|
| Max Power | 90W |
| Real Power | 90W |
| LED | 9 pcs x 10W Osram |
| Beam Pattern | Flood or Spot (optional) |
| 1 Lux Reading | Flood 60 meters |
| Colour Temperature | 6000K |
| Operating Voltage | 9–32V DC |
| Lens Material | Anti-scratch UV-resistant polycarbonate |

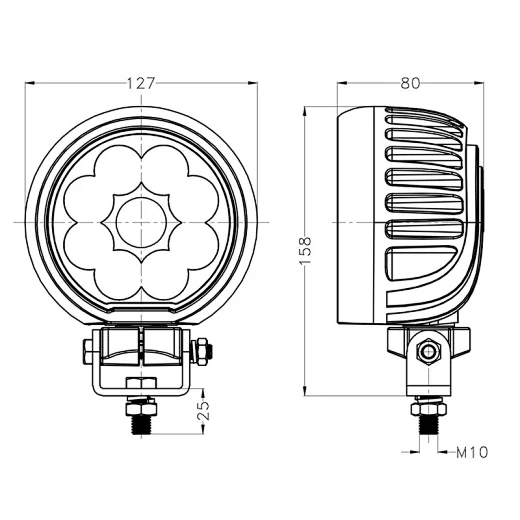

| Mounting | Bottom mount, 360 degree adjustable, 5 inch diameter base |
| Waterproof Rating | IP68 |
| Operating Temperature | -40 to +85 degrees Celsius |
| Electrical Connection | Bare wire 40cm, Deutsch connector available |
| Certification | CE, RoHS |
Materials Used

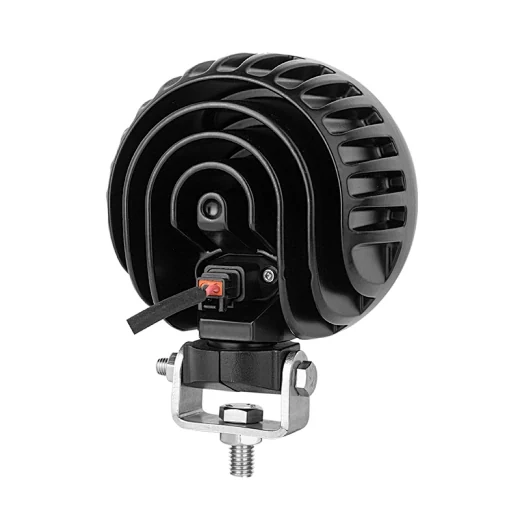

- Anti-scratch UV-resistant polycarbonate lens
- Semi-gloss black UV-resistant polyester powder coating
- Silicone rubber gasket and sealed cable entry gland
- Internal overvoltage and overheat protection circuitry
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black with UV resistance
LED board assembly with Osram emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating before shipment
- Vibration testing on a vibration test machine to simulate machine-mounted service
- Salt spray corrosion testing on housing coating and cable gland
- High and low temperature alternating humidity testing across the -40 to +85 degrees Celsius range
Customisation Options
- Deutsch DT connector instead of the standard 40cm bare wire lead
- Spot beam optics in place of the flood pattern
- Private label logo on the housing and printed carton
- Alternative cable length for a specific machine harness
- Mixed cartons combining this lamp with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Round 4 inch work lamp | The 5 inch body provides more LED area behind the same mounting footprint but requires a flat surface for the bottom bracket |
|---|---|
| Spot beam version of the same lamp | Flood covers the near working area evenly while spot reaches further ahead but leaves the machine edges dark |
| Larger 6 inch work lamp | Lower output but fits guard rails and cab pillars where a 6 inch body will not clear |
How to Fit and Use It
- Mount on a flat surface using the bottom bracket and check the 5 inch diameter base against the machine bracket before drilling
- Leave a drip loop in the 40cm lead so water runs away from the gland rather than into it
- Aim the flood beam at the working area close to the machine and use a spot lamp separately for distance
- Clean the PC lens with water and a soft cloth only, since solvents will haze the anti-scratch coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 9 to 32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant, which meets European safety and environmental standards for electrical equipment.
Get a Price on Tractor Light 5 Inch 90W
Send the quantity, the destination port and any branding requirement. You will get pricing, packing data and the production lead time.
