Tractor LED Work Lights

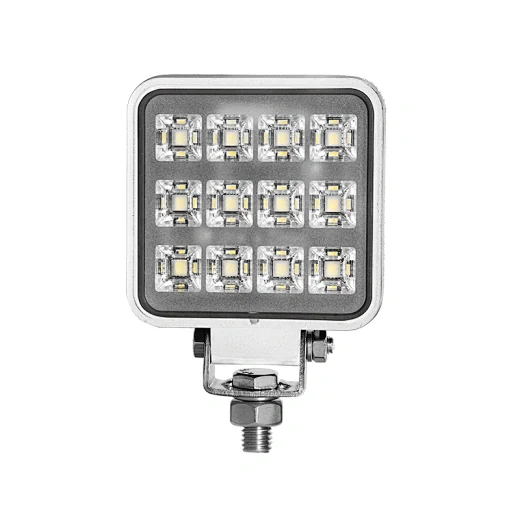

The SLL-0802-12-M is a 3 inch square LED work light designed for tractors and other agricultural or industrial machines that operate in low-light conditions. It delivers 960 effective lumens with a wide flood beam, ensuring consistent illumination across the immediate work zone without hot spots. The die-cast aluminium housing and polycarbonate lens are rated IP68 for dust and water resistance, making it suitable for daily washdowns and harsh outdoor environments. The 12V DC to 32V DC operating range allows direct fitment on both 12V and 24V systems without requiring different part numbers.
- 960 effective lumens from 12 x 1W Osram LEDs provide broad, even lighting across the work area
- Wide flood beam pattern eliminates dark edges around the machine compared to narrow beam lamps
- IP68 sealing and a durable polycarbonate lens resist water, dust, and impact during daily operation
- Operates reliably from 9 to 32V DC, eliminating the need for separate SKUs for 12V and 24V fleets
- Overvoltage and overheat protection prevent damage from electrical surges or prolonged high-load use
Where This Lamp Is Used
- Front and side work lighting on tractors and harvesters during early morning or late evening field operations
- Cab and hood lighting on utility vehicles and service trucks used in remote or poorly lit areas
- Auxiliary lighting on agricultural machinery where vibration and exposure to dirt and moisture are constant
- Lighting for loading and unloading operations on farm trailers and transport vehicles
- Nighttime maintenance lighting on construction and engineering vehicles where visibility is critical
Who It Is For
- Distributors of agricultural and industrial vehicle lighting needing one part number for 12V and 24V systems
- Machinery OEMs integrating work lights into production lines with consistent mounting and electrical specs
- Fleet operators replacing halogen lights that fail under vibration or after a few hundred hours
- 4x4 and agricultural accessory brands developing a private label work light range with proven durability
- Equipment dealers fitting lights on machines sold to customers in wet or dusty environments
Problems It Solves
- Halogen work lights burn out quickly under vibration and draw excessive current from the vehicle’s electrical system
- Narrow beam lamps create a bright spot but leave the edges of the work area in shadow
- Cheap plastic lenses degrade under UV exposure and become cloudy after a few months
- Lights with poor sealing allow water to enter through the cable entry and fog up after a single wash cycle
- Lack of overvoltage protection leads to premature failure when alternators spike during engine start
Technical Features
- Twelve 1W Osram LEDs with a real power draw of 12W and a maximum rating of 12W
- Semi-gloss black powder coating over the full housing and bracket
- Bare wire lead of 40cm as standard with overvoltage and overheat protection built into the circuit
- Operating window of -40 to +85 degrees Celsius, suitable for extreme cold and hot climates
- IP68 sealing with a sealed cable entry gland and silicone rubber gasket
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-0802-12-M |
|---|---|
| Max Power | 12W |
| Real Power | 12W |
| LED | 12 pcs x 1W Osram |
| Effective Lumen | 960 lm |
| Beam Pattern | Wide Flood |
| Colour Temperature | 6000K |
| Operating Voltage | 9 – 32V DC |
| Lens Material | Anti-scratch, UV resistant polycarbonate |
| Waterproof Rating | IP68 |
| Operating Temperature | -40 to +85 degrees Celsius |
| Electrical Connection | Bare wire 40cm, overvoltage and overheat protection built-in |
| Certification | CE, RoHS |
Materials Used
- Anti-scratch, UV resistant polycarbonate lens
- Semi-gloss black powder coating on housing and bracket
- Silicone rubber gasket and sealed cable entry gland
- Overvoltage and overheat protection circuitry
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black
LED board assembly with Osram emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating before shipment
- Vibration testing on a vibration test machine to reproduce machine mounted service
- Salt spray corrosion testing on housing coating and bracket
- High and low temperature alternating humidity testing across the -40 to +85 degrees Celsius window
Customisation Options
- Deutsch DT connector instead of the standard 40cm bare wire lead
- Spot beam optics in place of the flood pattern
- Private label logo on the housing and printed carton
- Alternative cable length for a specific machine harness
- Mixed cartons combining this lamp with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Round 3 inch work lamp | The square body fits the same mounting footprint but provides more LED area and better heat dissipation |
|---|---|
| Spot beam version of the same lamp | Flood covers the near working area evenly while spot reaches further ahead but leaves the machine edges dark |
| Larger 4 inch work lamp | Lower output but fits in tight spaces where a 4 inch body would interfere with guards or controls |
How to Fit and Use It
- Leave a drip loop in the 40cm lead so water runs away from the gland rather than into it
- Aim the flood beam at the immediate work zone close to the machine and use a spot lamp separately for distance
- Clean the PC lens with water and a soft cloth only, as solvents will degrade the anti-scratch coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 9 to 32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant, and carries IP68 sealing and overvoltage protection for reliable performance in vehicle environments.
Get a Price on Tractor LED Work Lights
Send the quantity, the destination port and any branding requirement. You will get pricing, packing data and the production lead time.
