Tractor LED Lights Version 2
The SLL-0902-32 is a 4 inch oval LED work light designed for tractors and other agricultural machinery that operate in low light, dust, and vibration. It delivers 1,170 effective lumens from 13 x 1W Osram LEDs, providing even flood illumination across the work area instead of a narrow bright spot. The die-cast aluminium housing with UV-resistant polycarbonate lens is sealed to IP68 and operates reliably from 9 to 32V DC, making it suitable for both 12V and 24V systems without requiring different part numbers.
- 1,170 effective lumens from 13 x 1W Osram LEDs spread evenly across the work area with a flood beam
- IP68 sealing and a durable polycarbonate lens resist water, dust, and impact during field use
- Operates from 9 to 32V DC, so the same part number works on 12V and 24V tractors and machinery
- Overvoltage and overheat protection prevent failure during electrical spikes or high ambient temperatures

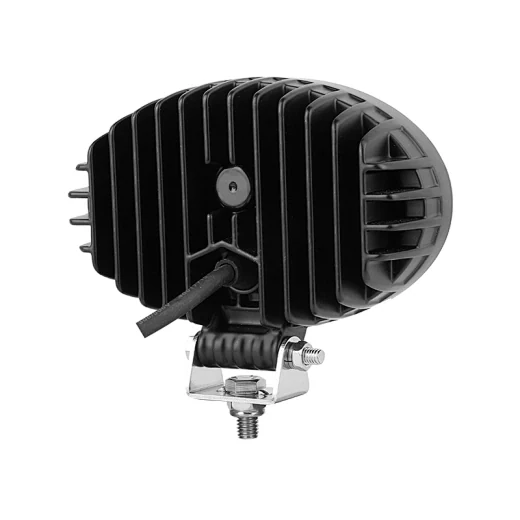

- Die-cast aluminium housing with UV-resistant polyester powder coating resists corrosion and fading
Where This Lamp Is Used
- Front and side work lighting on tractors during night field operations
- Cab roof and loader bucket lighting on harvesters and forklifts in low light
- Auxiliary lighting on agricultural trailers and utility vehicles used after dark
- Mounting on excavators and construction equipment where vibration damages standard lamps
- Fleet lighting on service vehicles that operate in dusty or wet environments
Who It Is For
- Distributors of 12V and 24V vehicle lighting needing one part number for both systems
- Agricultural machinery OEMs fitting work lights on production lines with consistent mounting
- Fleet operators replacing halogen lights that fail under vibration and high heat
- 4x4 and farm accessory brands building a private label work lamp range with consistent performance
Problems It Solves
- Halogen work lights burn out quickly under vibration and draw more current than LED alternatives
- Cheap sealed lamps let water in through the cable entry and fog up after a few wash cycles
- Narrow beam lamps leave the working edge of the machine dark while creating a hot spot in the center
- Lights with no overvoltage protection fail during alternator spikes common in older tractors
- Painted metal housings fade and corrode in UV and wet conditions, reducing lifespan
Technical Features
- 13 x 1W Osram LEDs with a real power draw of 13W and 32W maximum rating
- Semi-gloss black UV-resistant polyester powder coating over the full housing
- Bare wire lead of 40cm as standard with a Deutsch connector available on request
- Overvoltage and overheat protection built into the driver circuit
- Operating window of -40 to +85 degrees Celsius, suitable for extreme climates
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-0902-32 |
|---|---|
| Max Power | 32W |
| Real Power | 13W |
| LED | 13 pcs x 1W Osram |
| Beam Pattern | Flood |
| Colour Temperature | 6000K |
| Operating Voltage | 9-32V DC |
| Lens Material | Anti-scratch UV resistant polycarbonate |
| Waterproof Rating | IP68 |
| Operating Temperature | -40 to +85 degrees Celsius |
| Electrical Connection | Bare wire 40cm, Deutsch connector available |
| Certification | CE, RoHS |
Materials Used
- Anti-scratch UV resistant polycarbonate lens
- Silicone rubber gasket and sealed cable entry gland
- Semi-gloss black UV-resistant polyester powder coating
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black with UV resistance
LED board assembly with Osram emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating before shipment
- Vibration testing on a vibration test machine to reproduce machine mounted service
- Salt spray corrosion testing on housing coating and stainless bracket
- High and low temperature alternating humidity testing across the -40 to +85 degrees Celsius window
Customisation Options
- Deutsch DT connector instead of the standard 40cm bare wire lead
- Spot beam optics in place of the flood pattern
- Private label logo on the housing and printed carton
- Alternative cable length for a specific machine harness
- Mixed cartons combining this lamp with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Round 4 inch work lamp | The oval body fits better on curved surfaces like tractor cabs and provides more LED area behind the same mounting footprint |
|---|---|
| Spot beam version of the same lamp | Flood covers the near working area evenly while spot reaches further ahead but leaves the machine edges dark |
| Larger 5.5 inch work lamp | Lower output but fits tight spaces where a 5.5 inch body will not clear, such as under cab rails |
How to Fit and Use It
- Leave a drip loop in the 40cm lead so water runs away from the gland rather than into it
- Aim the flood beam at the working area close to the machine and use a spot lamp separately for distance
- Clean the PC lens with water and a soft cloth only, since solvents will haze the anti-scratch coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 9 to 32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant and carries IP68 sealing, which supports use on machines that operate on public roads.
Get a Price on Tractor LED Lights Version 2
Send the quantity, the destination port and any branding requirement. You will get pricing, packing data and the production lead time.
