Sunlitec 20W LED Side Shooter Work Light Y1119
The SLL-Y1119 is a 20W side shooter work light designed for vehicles and machinery that operate in harsh conditions with limited visibility. It delivers 25000 effective lumens from a single side-facing beam, illuminating the immediate work zone on excavators, forklifts, and service trucks without requiring a separate front light. The die-cast aluminium alloy housing resists deformation under impact and maintains performance across extreme temperatures from -45 to +85 degrees Celsius. The IP67 sealing prevents water ingress during high-pressure washing, which is common in mining and construction environments.
- 25000 effective lumens from a single side-facing beam illuminate the work zone without requiring a front-mounted light
- IP67 sealing prevents water and dust ingress during high-pressure washing and daily exposure to rain
- 10 to 32V DC operation allows use on both 12V and 24V systems without voltage regulation
- Die-cast aluminium alloy housing resists impact and maintains structural integrity under repeated vibration
- 50000 hour lifespan reduces replacement frequency on machines that run multiple shifts
Where This Lamp Is Used
- Side work lighting on excavators and loaders during night shift operations in mining and construction
- Cab side and boom lighting on forklifts and material handlers in warehouse and yard environments
- Auxiliary lighting on service trucks and utility vehicles where space limits front-mounted options
- Emergency lighting on engineering vehicles where a side shooter avoids interference with front-mounted sensors
- Work zone illumination on tipper trucks and dump bodies where a front light would be blocked by cargo
Who It Is For
- Distributors of vehicle lighting who need one part number to serve both 12V and 24V fleets
- Machinery OEMs fitting side shooter lights on production lines with limited mounting space
- Fleet operators replacing halogen side lights that fail under vibration and heat
- 4x4 and industrial accessory brands building a private label range with side shooter functionality
- Equipment dealers fitting lights on machines where front mounting is obstructed by other components
Problems It Solves
- Halogen side lights burn out quickly under vibration and draw excessive current from the vehicle’s electrical system
- Front-mounted lights are blocked by cargo or attachments on tipper trucks and loaders, leaving the work zone dark
- Lights with lower IP ratings fail after a few wash cycles due to water ingress through the cable entry
- Narrow beam lights only illuminate a small area, leaving the edges of the work zone in shadow
- Lights with plastic housings deform under heat or impact, leading to seal failure and early failure
Technical Features
- 20W LED power with a real luminous flux of 25000 lumens from a side-facing beam pattern

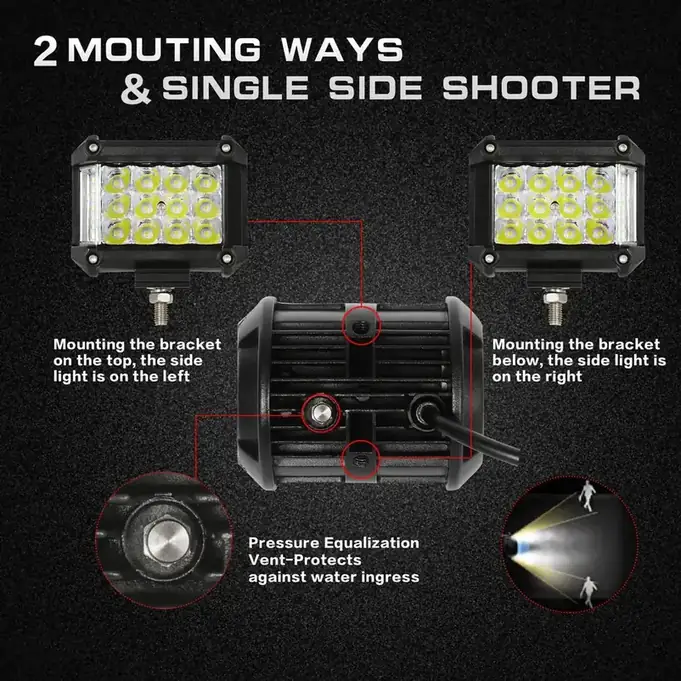

- Single side shooter beam design with no need for front-mounted lights on machines with limited space
- Die-cast aluminium alloy housing with a semi-gloss black powder coating for corrosion resistance
- IP67 sealing with a sealed cable entry gland to prevent water and dust ingress during washing
- 10 to 32V DC input range supports both 12V and 24V vehicle systems without voltage regulation
- Operating temperature range of -45 to +85 degrees Celsius for use in extreme climates
- Anti-scratch UV resistant polycarbonate lens to resist damage from debris and weathering
- Rated for more than 50000 hours of operation under continuous use
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-Y1119 |
|---|---|
| LED Power | 20W |
| Beam Pattern | Side Shooter |
| Operating Voltage | 10-32V DC |
| Waterproof Rating | IP67 |
| Housing Material | Aluminium alloy |
| Lens Material | Anti-scratch UV resistant PC |
| Bracket Material | Aluminium alloy |
| Operating Temperature | -45 to +85 degrees Celsius |
Materials Used
- Die-cast aluminium alloy housing and bracket
- Anti-scratch UV resistant polycarbonate lens
- Silicone rubber gasket and sealed cable entry gland
- Semi-gloss black powder coating on the housing
- Bare copper wire lead with PVC insulation
How This Lamp Is Built
Die casting of the aluminium housing and bracket
Powder coating in semi-gloss black
LED board assembly with high-efficiency emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP67 rating before shipment
- Vibration testing on a vibration test machine to reproduce machine-mounted service
- Salt spray corrosion testing on housing coating and bracket
- High and low temperature alternating humidity testing across the -45 to +85 degrees Celsius window
Customisation Options
- Alternative cable length for integration with a specific machine harness
- Private label logo on the housing and printed carton
- Mixed cartons combining this lamp with other SUNLITEC models for trial orders
- Spot beam optics in place of the standard side shooter pattern
How It Compares With the Alternatives
| Front-mounted work light | Side shooter avoids interference with front-mounted sensors and attachments on machines with limited front space |
|---|---|
| Halogen side light | Draws less than 2A at 12V and survives vibration that destroys filament-based lights |
| Round 20W work light | The side shooter beam pattern directs light directly into the work zone without requiring a separate front light |
| Larger 30W side shooter | Lower power but fits in tighter spaces where a larger body would interfere with other components |
| Plastic housing side shooter | Aluminium alloy resists impact and heat deformation, maintaining seal integrity over time |
How to Fit and Use It
- Wire through a fused feed sized for 2A at 12V or 1A at 24V and keep the cable entry pointing downward
- Use the side shooter beam pattern to illuminate the immediate work zone without requiring a front-mounted light
- Clean the PC lens with water and a soft cloth only, since solvents will haze the anti-scratch coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 10 to 32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for use on machines that operate in extreme temperatures
Yes. The lamp is rated for operation from -45 to +85 degrees Celsius and has been tested under high and low temperature alternating humidity conditions.
Get a Price on Sunlitec 20W LED Side Shooter Work Light Y1119
Send the quantity, the destination port and any branding requirement. You will get pricing, packing data and the production lead time.
