Side Emitting Slim 30W 7.8 Inch 12V/24V CREE LED Work Light for Car 4x4 Offroad SLL-0830

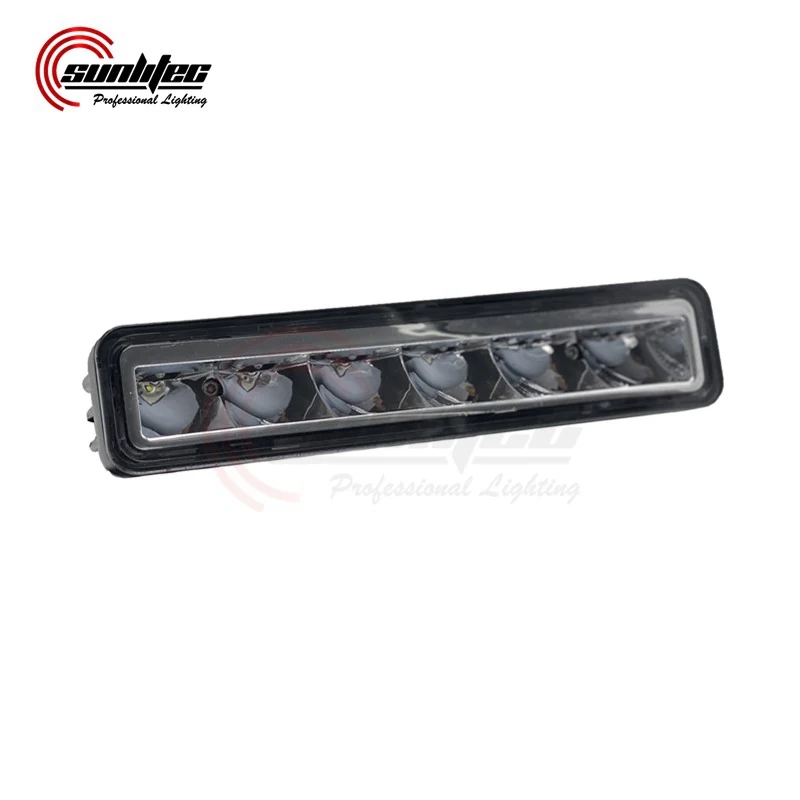

The SLL-0830 is a side-emitting slim 30W LED work light designed for off-road vehicles and 4x4s that need a focused, long-range beam without obstructing the vehicle's front profile. Twelve 5W CREE XPG2 LEDs deliver a driving beam with approximately 1035 effective lumens, providing clear visibility on rough terrain at night. The die-cast aluminium housing and 304 stainless steel bracket ensure durability in vibration-heavy environments, while IP68 sealing prevents water ingress during off-road driving or pressure washing.
- Side-emitting beam pattern allows mounting on narrow spaces like fenders or bumpers without blocking the main headlight beam
- 12 x 5W CREE XPG2 LEDs provide 1035 effective lumens with a focused driving beam for long-range visibility
- IP68 sealing and a sealed cable entry gland prevent water and dust ingress during off-road use and pressure washing
- 304 stainless steel bracket resists corrosion on vehicles exposed to mud, salt, or moisture
- 10-30V DC operation supports both 12V and 24V electrical systems, reducing SKU count for fleet operators
Where This Lamp Is Used
- Front bumper mounting on 4x4s and off-road vehicles where front space is limited and a side beam avoids headlight interference
- Auxiliary lighting on utility trucks and service vehicles operating in remote areas with poor road lighting
- Night driving on construction sites, mining operations, or logging roads where a focused beam improves safety
- Fleet vehicles with mixed 12V and 24V systems using the same part number across different vehicle types
- Mounting on narrow fenders or side panels of off-road machines where a standard front-facing light would not fit
Who It Is For
- Distributors of off-road vehicle lighting needing a compact, high-output work light with a unique mounting profile
- 4x4 accessory brands building a private label range with side-emitting lights for fender mounting
- Fleet operators replacing halogen lights with lower power draw and longer life in 12V and 24V vehicles
- Machinery OEMs fitting work lights on compact off-road vehicles with limited front mounting space
- Equipment dealers supplying lighting for utility and service vehicles used in remote or harsh environments
Problems It Solves
- Front-mounted lights block the main headlight beam on narrow fenders or bumpers, reducing visibility
- Halogen work lights draw excessive current and fail quickly under vibration and moisture
- Standard round lights take up too much front space on compact off-road vehicles
- Lights with poor sealing fail after a few wash cycles due to water ingress through the cable entry
- Lack of compatibility between 12V and 24V systems forces distributors to stock multiple SKUs
Technical Features
- Side-emitting driving beam pattern with a light output of approximately 1035 effective lumens
- Semi-gloss black powder coating on the full housing and bracket for corrosion resistance

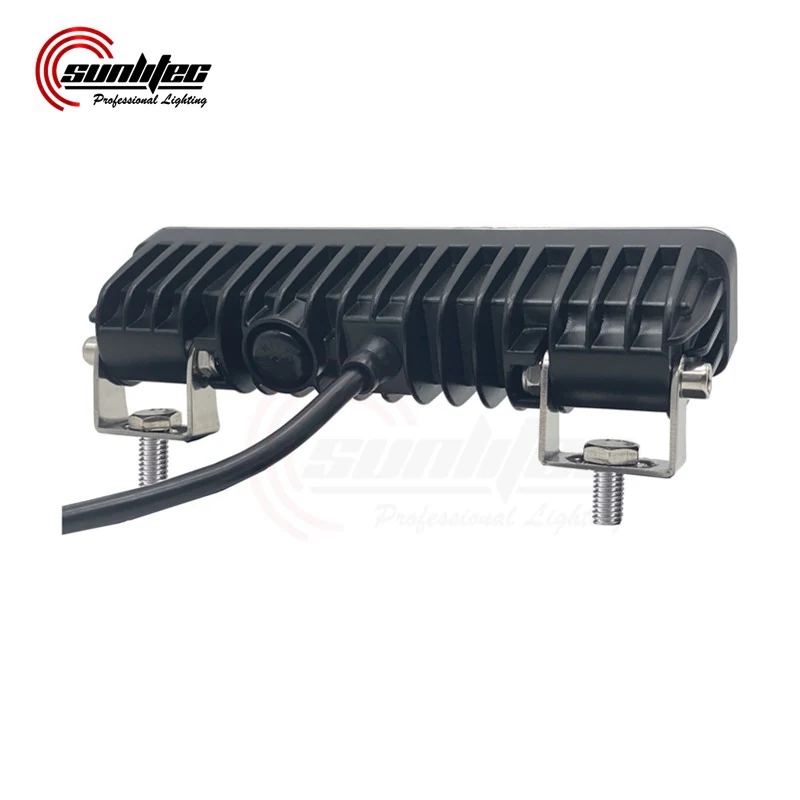

- 304 stainless steel U-shaped bracket with a 30mm width for secure mounting on fenders or side panels
- Bare wire lead of 40cm as standard with a Deutsch connector available on request
- EMC protected wiring and an operating window of -40 to +50 degrees Celsius
- Sealed cable entry gland with silicone gasket to maintain IP68 rating under vibration
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-0830 |
|---|---|
| Real Power | 30W |
| LED | 12 pcs x 5W CREE XPG2 |
| Effective Lumen | 1035 lm |
| Beam Pattern | Driving |
| 1 Lux Reading | Not specified |
| Colour Temperature | 5700K |
| Operating Voltage | 10-30V DC |
| Lens Material | Anti-reflective polycarbonate |
| Bracket Material | 304 stainless steel |
| Mounting | Side mount, 30mm bracket width, U-shaped |
| Waterproof Rating | IP68 |
| Operating Temperature | -40 to +50 degrees Celsius |
| Electrical Connection | Bare wire 40cm, Deutsch connector available |
| Certification | CE, RoHS, EMARK, ECE R10, R23 |
Materials Used
- Anti-reflective UV-resistant polycarbonate lens
- 304 stainless steel U-shaped mounting bracket
- Silicone rubber gasket and sealed cable entry gland
- Semi-gloss black powder coating
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black
LED board assembly with CREE XPG2 emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating before shipment
- Vibration testing on a vibration test machine to reproduce off-road service
- Salt spray corrosion testing on housing coating and stainless bracket
- High and low temperature alternating humidity testing across the -40 to +50 degrees Celsius window
Customisation Options
- Deutsch DT connector instead of the standard 40cm bare wire lead
- Alternative beam pattern (e.g. flood or spot) on request
- Private label logo on the housing and printed carton
- Alternative cable length to match a specific machine harness
- Mixed cartons combining this light with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Front-facing round LED work light | Side-emitting design fits narrow fenders without blocking the main headlight beam |
|---|---|
| Standard 4 inch round work light | Slimmer profile allows mounting on tight side panels where a round light would not fit |
| Larger 8 inch work light | Lower output but fits in restricted spaces like fenders or side rails where a larger body would interfere |
How to Fit and Use It
- Mount on a flat side surface using the 30mm wide U bracket and verify clearance before drilling
- Leave a drip loop in the 40cm lead so water runs away from the gland rather than into it
- Aim the driving beam at the road ahead and use a separate flood lamp for near-side work areas
- Clean the PC lens with water and a soft cloth only, since solvents will degrade the anti-reflective coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 10 to 30V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant and carries ECE R10 and R23 approvals for electromagnetic compatibility and safety.
Get a Price on Side Emitting Slim 30W 7.8 Inch 12V/24V CREE LED
Send the quantity, the destination port and any branding requirement. You will get pricing, packing data and the production lead time.
