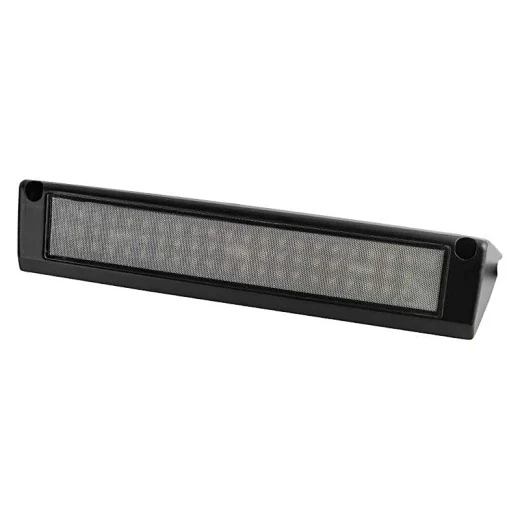

RV Lights 13 Inch 60W 4 800 LM 6 000K
The SLL-13X-60 is a 13 inch LED exterior light designed for RVs, trailers, campers, caravans, and motorhomes that need reliable lighting for porch, awning, and exterior use. It delivers 4800 effective lumens with a 45-degree surface mount and flood beam pattern, providing even illumination across wide areas without glare. The die-cast aluminium housing with UV polyester powder coating resists corrosion and UV damage, while IP67 sealing protects against water, dust, and insects. Operates on 9 to 32V DC, making it compatible with both 12V and 24V systems, and includes overvoltage and overheat protection for stable performance in extreme conditions.
- 4800 effective lumens spread evenly across a wide area with a 45-degree flood beam, ideal for illuminating porches and awnings
- IP67 sealing prevents water, dust, and insects from entering, suitable for outdoor use in rain, snow, and dusty environments
- 9 to 32V DC operation allows use on both 12V and 24V RV systems without changing part numbers
- Overvoltage and overheat protection prevent damage from electrical surges or high ambient temperatures
- Die-cast aluminium housing with UV polyester powder coating resists corrosion and fading over time
Where This Lamp Is Used
- Porch lighting on motorhomes and campers during evening use or overnight stays
- Awning lighting on trailers and caravans to provide safe access at night
- Exterior lighting on RV cabinets and storage compartments for visibility in low light
- Side and rear lighting on RVs used in remote or off-grid locations without street lighting
- Lighting on RVs operating in coastal or high-humidity areas where corrosion is a concern
Who It Is For
- Distributors of RV and trailer accessories needing a single LED light for multiple vehicle types
- RV and caravan manufacturers integrating lighting into production lines with consistent mounting patterns
- Fleet operators maintaining a fleet of RVs and trailers that require durable, low-maintenance lighting
- 4x4 and outdoor equipment brands building private label lighting solutions for recreational vehicles
- DIY RV owners upgrading from halogen or incandescent lights with higher energy efficiency and longer life
Problems It Solves
- Halogen lights used on RVs burn out quickly and draw more current, increasing alternator load
- Cheap plastic lights degrade under UV exposure and crack or yellow over time in direct sunlight
- Inadequate sealing in low-cost lights allows water and dust to enter, causing short circuits or fogging
- Narrow beam lights create hot spots and leave edges of awnings or porches in shadow
- Lights not rated for 24V systems require separate SKUs, increasing inventory complexity
Technical Features
- Flood beam pattern with a 45-degree mounting angle for wide-area coverage
- Effective lumen output of 4800 lm at 6000K colour temperature, providing bright white light
- Die-cast aluminium housing with durable UV polyester powder coating for long-term durability
- Anti-UV, impact-resistant polycarbonate lens with scratch-resistant surface
- Overvoltage protection and overheat protection circuits for electrical safety
- IP67 rating for dustproof and water-resistant performance in harsh conditions
- Operating temperature range of -40 to +85 degrees Celsius, suitable for extreme climates
- 9 to 32V DC input range compatible with 12V and 24V vehicle electrical systems
- 45-degree surface mount design for easy installation on flat or slightly angled surfaces
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-13X-60 |
|---|---|
| Max Power | 60W |
| Real Power | 60W |
| LED | 60 pcs x 1W Osram |
| Theoretical Lumen | 6000 lm |
| Effective Lumen | 4800 lm |
| Beam Pattern | Flood |
| Colour Temperature | 6000K |
| Operating Voltage | 9-32V DC |
| Housing Material | Die-cast aluminium with UV polyester powder coating |
| Lens Material | Anti-UV polycarbonate |
| Mounting | 45-degree surface mount |
| Waterproof Rating | IP67 |
| Operating Temperature | -40 to +85 degrees Celsius |
| Certification | CE, RoHS |
Materials Used
- Die-cast aluminium housing with UV polyester powder coating
- Anti-UV, impact-resistant polycarbonate lens
- Silicone gasket and sealed cable entry for IP67 protection
- Osram 1W LEDs with high thermal stability
- Internal overvoltage and overheat protection circuitry
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating with UV polyester finish in semi-gloss black
LED board assembly with 60 x 1W Osram emitters
Lens bonding and gasket sealing for IP67 integrity
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP67 rating before shipment
- Vibration testing on a vibration test machine to simulate RV road use
- Salt spray corrosion testing on housing coating and internal components
- High and low temperature alternating humidity testing across the -40 to +85 degrees Celsius range
Customisation Options
- Alternative colour temperature options beyond 6000K
- Custom cable length or connector type (e.g. Deutsch DT) on request
- Private label logo on the housing and printed carton
- Mixed cartons combining this light with other SUNLITEC models for trial orders
- Alternative mounting bracket or angle for specific RV panel designs
How It Compares With the Alternatives
| Round 13 inch LED light | The square body fits flush on flat surfaces and allows a 45-degree surface mount without overhang |
|---|---|
| Spot beam version of the same lamp | Flood covers wide areas like porches and awnings evenly, while spot is better for distance but leaves edges dark |
| Smaller 8 inch RV light | Higher output and wider beam but requires more space for mounting on larger RV panels |
How to Fit and Use It
- Mount on a flat surface using the 45-degree surface mount pattern and ensure the angle matches the intended lighting direction
- Leave a drip loop in the cable near the entry point so water runs away from the gland
- Aim the flood beam at the area to be illuminated, such as the porch or awning edge, and avoid pointing directly at windows
- Clean the polycarbonate lens with water and a soft cloth only; avoid solvents that may damage the anti-UV coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V systems
Yes. The operating range is 9 to 32V DC, so the same part number can be fitted to 12V and 24V RVs.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for outdoor use on RVs
The lamp is CE and RoHS compliant, with an IP67 rating for dustproof and water-resistant performance in outdoor conditions.
