RV Awning Lights

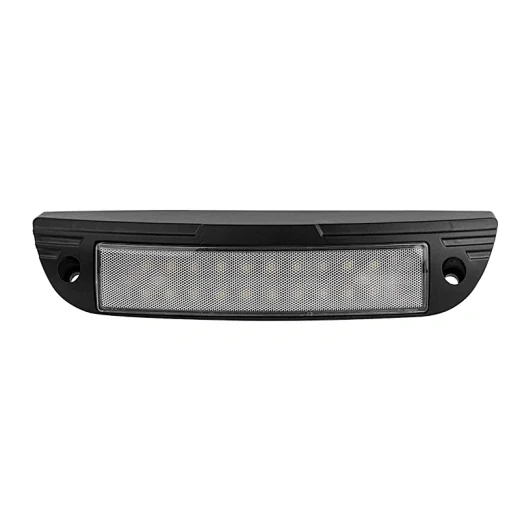

The SLL-12X-20 is a 9 inch LED awning light designed for RVs and outdoor camping setups that operate in variable weather and need reliable, long-lasting lighting. Twenty 1W Osram LEDs deliver 1,600 raw lumens and 1,280 effective lumens in a wide flood beam, illuminating the full awning area without hot spots. The die-cast aluminium housing with UV-resistant powder coating and polycarbonate lens resists damage from sunlight, dust, and moisture, while the 9–32V DC operating range ensures compatibility with both 12V and 24V RV electrical systems.
- Wide flood beam spreads 1,280 effective lumens evenly across the awning area instead of a narrow bright spot
- IP67 sealing prevents water and dust ingress during rain, washing, or dusty campsite conditions
- 9–32V DC input allows the same part number to be used on 12V and 24V RV systems, reducing SKU complexity
- 20W real power draw with 1,600 raw lumens and 1,280 effective lumens offers high output with low energy consumption
- Overvoltage and overheat protection prevent damage from electrical spikes or prolonged high ambient temperatures
Where This Lamp Is Used
- Awning lighting on RVs and motorhomes during evening use at campgrounds
- Outdoor living area lighting on travel trailers and pop-up campers
- Side and rear lighting on RVs used in remote or off-grid locations
- Lighting for outdoor cooking and storage areas under the awning
- Backup lighting on RVs where halogen lights fail quickly under vibration and weather
Who It Is For
- Distributors of RV lighting needing a single part number for 12V and 24V systems
- RV accessory brands building private label awning light kits
- Fleet operators maintaining RVs or mobile service units with consistent lighting
- Machinery OEMs fitting lighting on mobile units that operate in dusty or wet environments
- RV owners replacing halogen lights that burn out after a few hundred hours
Problems It Solves
- Halogen awning lights fail early under vibration and draw excessive current from the RV battery
- Cheap plastic lenses yellow and crack under UV exposure, reducing light output over time
- Narrow beam lights leave the edges of the awning dark, creating unsafe walking zones
- Lights with poor sealing let water in during rain or pressure washing, causing short circuits
- Single voltage lights require two SKUs for 12V and 24V RV fleets, increasing inventory cost
Technical Features
- Twenty 1W Osram LEDs with a real power draw of 20W and 1,600 raw lumens
- Semi-gloss black or white powder coating over the full housing and bracket
- Bare wire lead of 40cm as standard with optional Deutsch connector available
- Overvoltage and overheat protection built into the internal circuitry
- Operating window of -40 to +85 degrees Celsius for extreme climate use
- IP67 sealing prevents dust and water ingress during heavy rain or washing
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-12X-20 |
|---|---|
| Max Power | 20W |
| Real Power | 20W |
| LED | 20 pcs x 1W Osram |
| Raw Lumen | 1,600 lm |
| Effective Lumen | 1,280 lm |
| Beam Pattern | Wide Flood |
| Colour Temperature | 6000K |
| Operating Voltage | 9–32V DC |
| Lens Material | Anti-UV polycarbonate |
| Bracket Material | Die-cast aluminium |
| Waterproof Rating | IP67 |
| Operating Temperature | -40 to +85 degrees Celsius |
| Electrical Connection | Bare wire 40cm, Deutsch connector available |
| Lifetime | More than 50,000 hours |
| Certification | CE, RoHS |
Materials Used
- Anti-UV, durable polycarbonate lens
- Semi-gloss black or white powder coating
- Silicone rubber gasket and sealed cable entry
- Bare wire lead with overvoltage and overheat protection circuit
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black or white
LED board assembly with Osram emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP67 rating before shipment
- Vibration testing on a vibration test machine to simulate RV movement
- Salt spray corrosion testing on housing coating and bracket
- High and low temperature alternating humidity testing across the -40 to +85 degrees Celsius window
Customisation Options
- Deutsch DT connector instead of the standard 40cm bare wire lead
- Alternative colour finish (black or white) on the housing
- Private label logo on the housing and printed carton
- Alternative cable length for a specific RV harness
- Mixed cartons combining this lamp with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Round 9 inch awning light | The flat circular body fits flush under awning rails and allows even light distribution across the area |
|---|---|
| Spot beam version of the same lamp | Wide flood covers the entire awning area evenly while spot reaches further ahead but leaves the edges dark |
| Larger 12 inch awning light | Lower output but fits under standard awning rails where a 12 inch body would not clear |
How to Fit and Use It
- Leave a drip loop in the 40cm lead so water runs away from the gland rather than into it
- Aim the flood beam at the awning floor and use a spot lamp separately for distance if needed
- Clean the PC lens with water and a soft cloth only, since solvents will haze the anti-UV coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 9 to 32V DC, so the same part number can be fitted to 12V and 24V RV systems.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for outdoor use on RVs
The lamp is CE and RoHS compliant and carries IP67 sealing, making it suitable for outdoor use on RVs and camping equipment.
Get a Price on RV Awning Lights
Send the quantity, the destination port and any branding requirement. You will get pricing, packing data and the production lead time.
