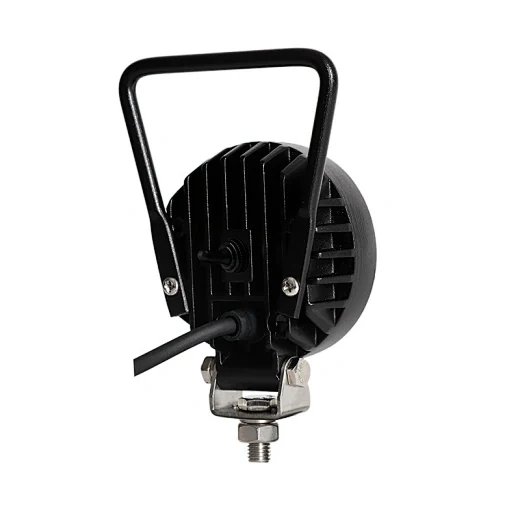

Portable LED Work Light
The SLL-0702-12H is a 3 inch portable LED work light designed for temporary or mobile lighting on vehicles and machinery that operate in harsh conditions. It delivers 960 effective lumens in a wide flood beam pattern, illuminating a broad area around a forklift, crane, or service truck without creating a hot spot. The die-cast aluminium housing with UV resistant powder coating and IP68 sealing ensures long-term durability in dust, rain, and vibration. The 9–32V DC operating range supports both 12V and 24V systems, reducing the need for multiple SKUs.
- 960 effective lumens in a wide flood beam pattern cover a large work zone evenly instead of a narrow bright spot
- IP68 sealing and a sealed cable entry prevent water and dust ingress during pressure washing or outdoor use
- 9–32V DC operation allows the same part number to be used on 12V and 24V fleets, simplifying inventory
- Die-cast aluminium housing with UV resistant powder coating resists corrosion and fading in sunlight
- Overvoltage and overheat protection prevent damage from electrical surges or blocked airflow
Where This Lamp Is Used
- Temporary lighting on forklifts and warehouse vehicles during night shifts
- Mobile work lighting on cranes and excavators during maintenance or repair
- Auxiliary lighting on service trucks and utility vehicles in low-light environments
- Emergency lighting on engineering vehicles during roadside repairs
- Portable illumination on boats and vessels during night loading or inspection
Who It Is For
- Distributors of vehicle lighting needing a single model for 12V and 24V applications
- Fleet operators replacing halogen work lights that fail under vibration or heat
- Machinery OEMs integrating a portable light into service or maintenance kits
- Equipment dealers offering a compact, durable work light as an accessory
- 4x4 and off-road accessory brands building a private label portable lighting range
Problems It Solves
- Halogen work lights burn out quickly under vibration and draw excessive current from the vehicle’s electrical system
- Cheap portable lights with plastic housings degrade under UV exposure and fail in high heat
- Narrow beam lights leave edges of the work area in shadow, increasing risk of tripping or misalignment
- Lights with poor sealing let water in through the cable entry and fog up after a few wash cycles
- Single-voltage models require two SKUs for 12V and 24V fleets, increasing stock complexity
Technical Features
- Twelve 1W Osram LEDs with a real power draw of 12W and 1080 raw lumens
- Semi-gloss black powder coating over the full housing and handle
- Bare wire lead of 40cm as standard with a Deutsch connector available on request
- Overvoltage and overheat protection circuits built into the driver
- Operating window of -40 to +85 degrees Celsius for extreme cold and hot environments
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-0702-12H |
|---|---|
| Max Power | 12W |
| Real Power | 12W |
| LED | 12 pcs x 1W Osram |
| Effective Lumen | 960 lm |
| Beam Pattern | Wide Flood |
| Colour Temperature | 6000K |
| Operating Voltage | 9–32V DC |
| Lens Material | Anti-UV polycarbonate |
| Handle | Integrated, die-cast aluminium |
| Waterproof Rating | IP68 |
| Operating Temperature | -40 to +85 degrees Celsius |
| Electrical Connection | Bare wire 40cm, Deutsch connector available |
| Certification | CE, RoHS |
Materials Used
- Anti-UV polycarbonate lens
- Semi-gloss black powder coating
- Silicone rubber gasket and sealed cable entry
- Internal overvoltage and overheat protection circuit
How This Lamp Is Built
Die casting of the aluminium housing and handle
Powder coating in semi-gloss black
LED board assembly with Osram emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating before shipment
- Vibration testing on a vibration test machine to simulate machine-mounted service
- Salt spray corrosion testing on housing coating and internal components
- High and low temperature alternating humidity testing across the -40 to +85 degrees Celsius range
Customisation Options
- Deutsch DT connector instead of the standard 40cm bare wire lead
- Alternative cable length for a specific machine harness
- Private label logo on the housing and printed carton
- Mixed cartons combining this lamp with other SUNLITEC models for trial orders
- Spot beam optics in place of the flood pattern (on request)
How It Compares With the Alternatives
| Halogen work lamp of similar output | Draws 1A at 12V against roughly 3A for halogen and survives vibration that destroys a filament |
|---|---|
| Round 3.5 inch work light | Smaller footprint fits tight spaces but has lower output; the 3 inch body allows mounting on narrow brackets |
| Spot beam version of the same lamp | Flood covers the near work area evenly while spot reaches further ahead but leaves the machine edges dark |
| Larger 4 inch work light | Lower output but fits in tight spaces where a 4 inch body will not clear, such as under cab roofs or on narrow rails |
How to Fit and Use It
- Leave a drip loop in the 40cm lead so water runs away from the gland rather than into it
- Aim the flood beam at the working area close to the machine and use a spot lamp separately for distance
- Clean the PC lens with water and a soft cloth only, since solvents will haze the anti-UV coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 9 to 32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant, but ECE R10 approval is not listed for this model.
