LED Work Lights 2 Inch 10W
The SLL-0701-10 is a 2 inch round LED work light designed for machines that operate in harsh conditions with frequent vibration, dust, and water exposure. One 10W CREE LED delivers 800 effective lumens in either flood or spot beam, providing clear visibility across the immediate work area on construction sites, forestry equipment, or utility vehicles. The die-cast aluminium housing with UV-resistant polyester powder coating and polycarbonate lens ensures long-term durability. The light operates on 9–32V DC, making it compatible with both 12V and 24V systems, and includes overvoltage and overheat protection for stable performance under fluctuating electrical loads.
- 10W CREE LED delivers 800 effective lumens in flood or spot beam for clear visibility in low-light work zones
- IP68 sealing and a polycarbonate lens resist water, dust, and impact, maintaining clarity after repeated exposure
- 9–32V DC operation allows one part number to serve both 12V and 24V fleets, reducing SKU complexity
- Overvoltage and overheat protection prevent failure during electrical surges or prolonged high-load use
- 360 degree rotation mounting enables precise beam aiming on uneven or angled machine surfaces
Where This Lamp Is Used
- Front and side work lighting on excavators and loaders operating in wet or dusty environments
- Auxiliary lighting on forestry cutters and brush cutters where vibration and impact are common
- Cab and hood lighting on utility trucks and service vehicles used at night or in tunnels
- Machine edge lighting on forklifts and material handlers where a narrow beam would leave blind spots
- Temporary lighting on construction site equipment during night shifts or emergency repairs
Who It Is For
- Distributors sourcing LED work lights for 12V and 24V vehicle fleets who need a single SKU for both systems
- Machinery OEMs integrating lighting into production line builds with consistent mounting and electrical specs
- Fleet operators replacing halogen or low-lumen LED lights that fail under vibration or moisture
- 4x4 and utility accessory brands developing a private label work light line with beam flexibility
Problems It Solves
- Halogen work lights burn out quickly under vibration and draw excessive current from the vehicle’s electrical system
- Cheap plastic lenses fog, crack, or yellow under UV exposure, reducing light output over time
- Non-IP68 sealed lights allow water ingress during pressure washing, leading to internal corrosion
- Fixed beam lights cannot be re-aimed after installation, limiting flexibility on uneven machine surfaces
- Lights with no overvoltage protection fail during alternator surges or jump-starts, causing downtime
Technical Features
- One 10W CREE LED with a raw output of 1,000 lumens and 800 effective lumens
- Beam pattern available in flood or spot, selectable at time of order

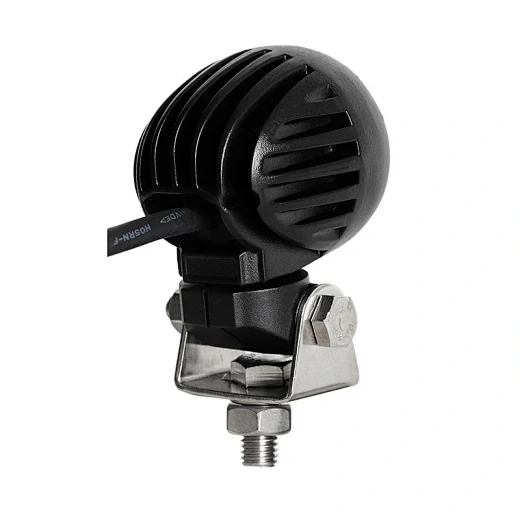

- Die-cast aluminium housing with semi-gloss UV-resistant polyester powder coating

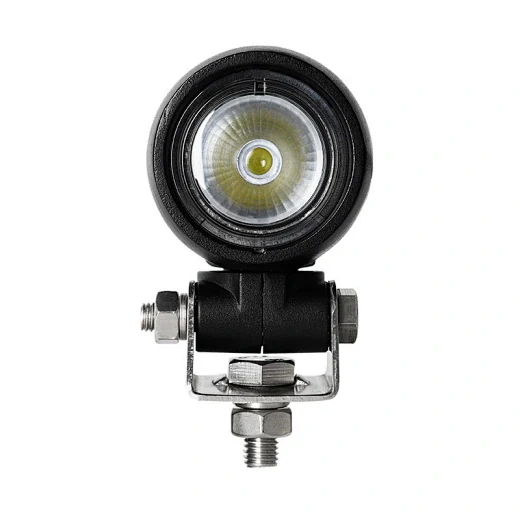

- Durable polycarbonate lens with anti-scratch and UV protection
- 360 degree adjustable mounting for upright or pendant installation with a 2 inch diameter base
- Overvoltage and overheat protection built into the internal circuitry
- Operating voltage range of 9–32V DC, compatible with 12V and 24V systems
- Operating temperature range of -40 to +85 degrees Celsius
- IP68 sealing for full protection against water and dust ingress
- Cable entry with sealed gland to prevent moisture entry at the connection point
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-0701-10 |
|---|---|
| LED | 1 x 10W CREE |
| Raw Lumen | 1,000 lm |
| Effective Lumen | 800 lm |
| Beam Pattern | Flood or Spot (selectable) |
| Operating Voltage | 9–32V DC |
| Housing Material | Die-cast aluminium, UV-resistant polyester powder coating |
| Lens Material | Durable polycarbonate |
| Mounting | 360 degree adjustable, 2 inch diameter base |
| Waterproof Rating | IP68 |
| Operating Temperature | -40 to +85 degrees Celsius |
| Lifetime | 50,000 hours |
| Certification | CE, RoHS |
Materials Used
- Die-cast aluminium housing with semi-gloss UV-resistant polyester powder coating
- Durable polycarbonate lens with anti-scratch and UV protection
- Silicone rubber gasket and sealed cable entry gland
- Internal circuit board with overvoltage and overheat protection components
- Copper wire leads with PVC insulation and strain relief
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating with UV-resistant polyester finish
LED board assembly with a single 10W CREE emitter
Lens bonding with UV-stable adhesive and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere for lumen accuracy
- Sealing tested to IP68 standard using water immersion and pressure testing
- Vibration testing on a vibration test machine to simulate machine-mounted service
- Salt spray corrosion testing on the housing coating and mounting components
- High and low temperature alternating humidity testing across the -40 to +85 degrees Celsius range
Customisation Options
- Beam pattern selection: flood or spot at time of order
- Deutsch connector or other terminal type instead of standard bare wire
- Private label logo on the housing and printed carton
- Alternative cable length to match a specific machine harness
- Mixed cartons combining this model with other SUNLITEC work lights for trial orders
How It Compares With the Alternatives
| Round 3 inch 40W LED work light | Lower output but fits in tighter spaces where a larger body would interfere with guards or controls |
|---|---|
| Spot beam version of the same lamp | Flood covers a wider area near the machine while spot reaches further ahead but leaves the immediate work zone dark |
| Non-IP68 sealed LED light | Resists water ingress during pressure washing and maintains performance after repeated exposure to rain and dust |
How to Fit and Use It
- Mount on a flat or slightly curved surface using the 360 degree adjustable bracket and ensure the 2 inch diameter base fits the machine bracket
- Leave a drip loop in the cable to prevent water from running into the gland
- Select flood or spot beam based on the work area—flood for close-range coverage, spot for distance
- Clean the polycarbonate lens with water and a soft cloth only; avoid solvents that may damage the anti-scratch coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 9–32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant, with IP68 sealing and overvoltage protection, suitable for use on vehicles that operate on public roads.
Get a Price on LED Work Lights 2 Inch 10W
Send the quantity, the destination port and any branding requirement. You will get pricing, packing data and the production lead time.
