LED Hand Work Light

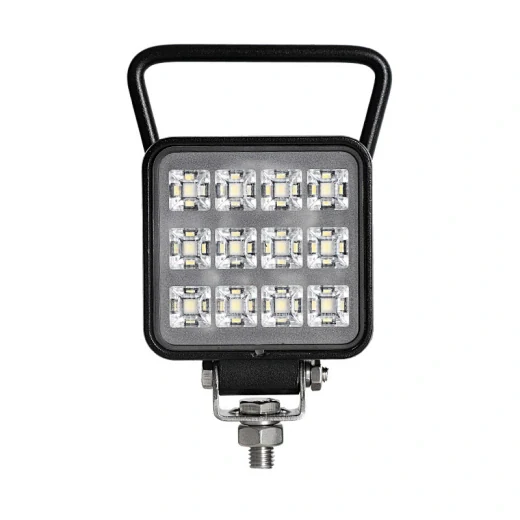

The SLL-0802-12H is a 3 inch square LED hand work light designed for portable use on trucks and heavy machinery that operate in low light, dust, and vibration. It delivers 960 effective lumens from twelve 1W Osram LEDs, providing broad, even illumination across a work area without the need for a fixed mount. The die-cast aluminium housing and IP68 sealing ensure durability in harsh environments, while the 9–32V DC operation supports both 12V and 24V vehicle systems, reducing the need for multiple SKUs.
- 960 effective lumens from twelve 1W Osram LEDs spread evenly across a wide flood beam, reducing shadows on work surfaces
- IP68 sealing and a durable polycarbonate lens resist water, dust, and impact during field use
- 9–32V DC input allows one part number to serve both 12V and 24V truck and machinery electrical systems
- Overvoltage and overheat protection prevent damage from electrical spikes or prolonged use
- Compact 3 inch size and low weight make it easy to carry and use in tight spaces
Where This Lamp Is Used
- Handheld lighting for truck mechanics working under the chassis or in the cargo bay after dark
- Temporary illumination on construction equipment during maintenance or repair in low light
- Emergency lighting on fleet vehicles during roadside breakdowns or night service calls
- Auxiliary lighting on forklifts and loaders during night warehouse operations
- Portable work light for field technicians servicing mining or agricultural machinery
Who It Is For
- Fleet operators needing a lightweight, durable work light for maintenance crews
- Machinery OEMs integrating a portable light into service kits for new machines
- Distributors selling replacement work lights for trucks and utility vehicles
- 4x4 accessory brands building a compact, high-output hand light for off-road use
- Equipment dealers offering a multi-voltage hand light as a standard service tool
Problems It Solves
- Halogen hand lights burn out quickly under vibration and draw more current than needed
- Cheap plastic lights crack or fog in cold or high heat, reducing visibility
- Narrow beam lights create hot spots and leave edges of the work area in shadow
- Non-IP68 lights fail after exposure to rain, washdowns, or dusty conditions
- Single-voltage lights require separate SKUs for 12V and 24V fleets, increasing inventory
Technical Features
- Twelve 1W Osram LEDs with a real power draw of 12W and a maximum rating of 12W
- Semi-gloss black powder coating over the full housing and bracket
- Bare wire lead of 40cm as standard with a Deutsch connector available on request
- EMC protected wiring and an operating window of -40 to +85 degrees Celsius
- Overvoltage and overheat protection built into the circuit board
- IP68 sealing with a silicone rubber gasket and sealed cable entry gland
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-0802-12H |
|---|---|
| Max Power | 12W |
| Real Power | 12W |
| LED | 12 pcs x 1W Osram |
| Effective Lumen | 960 lm |
| Beam Pattern | Wide Flood |
| Colour Temperature | 6000K |
| Operating Voltage | 9–32V DC |
| Lens Material | Anti-scratch PC |
| Waterproof Rating | IP68 |
| Operating Temperature | -40 to +85 degrees Celsius |
| Electrical Connection | Bare wire 40cm, Deutsch connector available |
| Certification | CE, RoHS |
Materials Used
- Anti-scratch UV resistant polycarbonate lens
- Silicone rubber gasket and sealed cable entry gland
- Semi-gloss black powder coating
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black
LED board assembly with Osram emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating before shipment
- Vibration testing on a vibration test machine to reproduce machine mounted service
- Salt spray corrosion testing on housing coating and stainless bracket
- High and low temperature alternating humidity testing across the -40 to +85 degrees Celsius window
Customisation Options
- Deutsch DT connector instead of the standard 40cm bare wire lead
- Spot beam optics in place of the flood pattern
- Private label logo on the housing and printed carton
- Alternative cable length for a specific machine harness
- Mixed cartons combining this lamp with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Round 3 inch work light | The square body provides more LED area behind the same footprint but requires a flat mounting surface |
|---|---|
| Spot beam version of the same lamp | Wide flood covers the immediate work zone evenly while spot reaches further ahead but leaves the edges dark |
| Larger 4 inch work lamp | Lower output but fits in tight spaces where a 4 inch body would not clear |
How to Fit and Use It

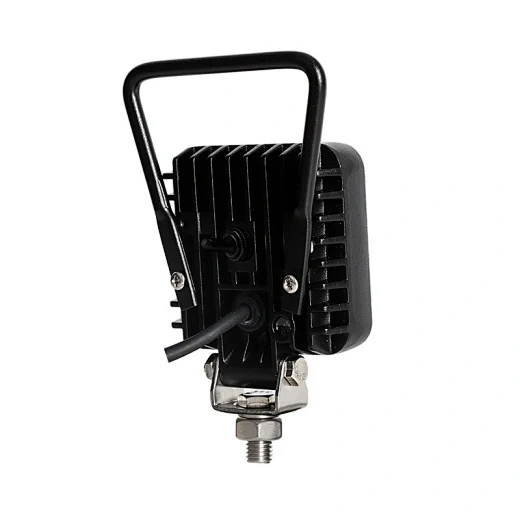

- Use the bottom bracket to mount on a flat surface or carry by the handle for handheld use
- Leave a drip loop in the 40cm lead so water runs away from the gland rather than into it
- Aim the flood beam at the work surface close to the machine and use a spot lamp separately for distance
- Clean the PC lens with water and a soft cloth only, since solvents will haze the anti-scratch coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 9 to 32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant and carries IP68 sealing, but ECE R10 approval is not listed for this model.
Get a Price on LED Hand Work Light
Send the quantity, the destination port and any branding requirement. You will get pricing, packing data and the production lead time.
