6 Inch 60W Rectangle LED Work Light
Six 10W Osram LEDs deliver 5400 effective lumens with a flood or spot beam pattern, ensuring visibility across the work zone without creating a single hot spot. The die-cast aluminium housing is sealed to IP68 and includes over and reverse voltage protection, which prevents damage from electrical faults common in industrial vehicles. A built-in Deutsch DT connector simplifies wiring and reduces installation time on fleet vehicles and machinery.
- 60W real power from six 10W Osram LEDs produces 5400 effective lumens for clear visibility across the work area
- Flood or spot beam pattern allows selection based on task—wide coverage or long-distance reach
- IP68 sealing and a Bayer® PC lens resist water, dust, and impact during heavy use and pressure washing
- Built-in Deutsch DT connector eliminates loose wiring and reduces installation time on 12V and 24V systems
- Over and reverse voltage protection prevents damage from electrical surges common in vehicle alternators
Where This Lamp Is Used
- Front and side work lighting on excavators and cranes during night shifts in construction zones
- Auxiliary lighting on tipper trucks and hook lift bodies where vibration and dust degrade standard lamps
- Cab and roof lighting on agricultural tractors and harvesters working in low-light field conditions
- Mounting on forklifts and engineering vehicles where a universal pedestal bracket allows quick installation
- Lighting on mining support vehicles and service trucks where electrical faults are frequent and repairs costly
Who It Is For
- Distributors of industrial vehicle lighting needing a single part number for 12V and 24V fleets
- Machinery OEMs integrating lighting into production lines with consistent mounting and wiring
- Fleet operators replacing halogen or low-lumen LED lamps that fail under vibration and voltage spikes
- 4x4 and off-road accessory brands building a private label work light range with quick installation
Problems It Solves
- Halogen work lights burn out quickly under vibration and draw excessive current from vehicle electrical systems
- Cheap LED lamps with no over-voltage protection fail after a single electrical surge in a vehicle
- Lamps with poor sealing let water in during pressure washing, leading to fogging and early failure
- Narrow spot beams leave the near work area dark, while unbalanced flood beams create uneven lighting
- Lack of a standard connector forces custom wiring, increasing installation time and risk of poor connections
Technical Features
- Six 10W Osram LEDs with a real power draw of 60W and a maximum rating of 60W
- Flood or spot beam pattern selectable based on application, with a 1 lux reading at 60 meters for spot
- Built-in Deutsch DT connector for secure, plug-and-play wiring with no soldering required
- Over and reverse voltage protection prevents damage from electrical faults in vehicle systems
- Operating voltage range of 10 to 30V DC supports both 12V and 24V vehicle systems without changing part numbers
- Rated for more than 50000 hours of operation, reducing replacement frequency on high-use machines
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-W6030 |
|---|---|
| Max Power | 60W |
| Real Power | 60W |
| LED | 6 pcs x 10W Osram |
| Theoretical Lumen | 5400 lm |
| Effective Lumen | 5400 lm |
| Beam Pattern | Flood/Spot |
| 1 Lux Reading | Spot 60 meters |
| Operating Voltage | 10-30V DC |
| Lens Material | Anti-scratch Bayer® PC |
| Waterproof Rating | IP68 |
| Electrical Connection | Built-in Deutsch DT connector |
| Lifetime | More than 50000 hours |
| Certification | CISPR25 Class-4 |
Materials Used

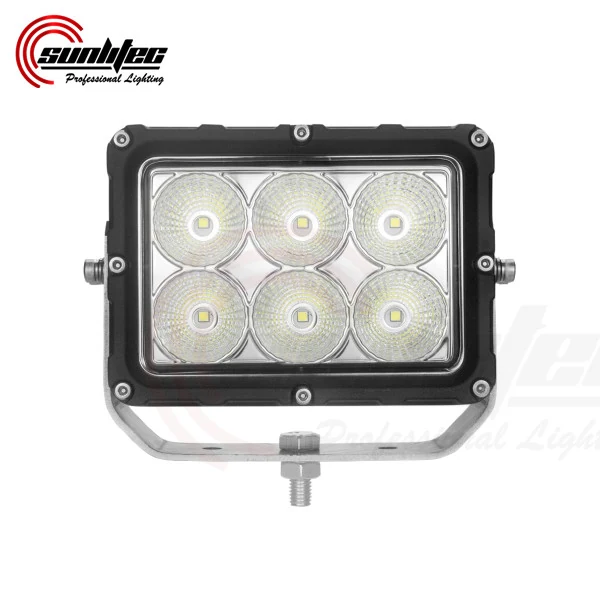

- Anti-scratch Bayer® polycarbonate lens

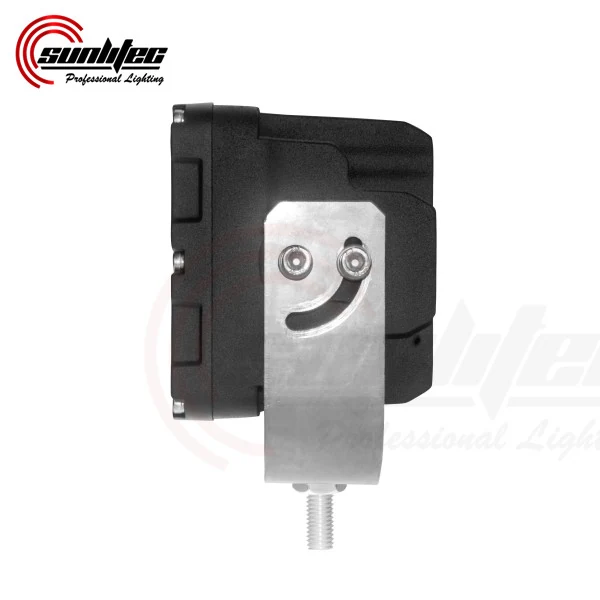

- Die-cast aluminium universal pedestal bracket
- Silicone rubber gasket and sealed cable entry
- Semi-gloss black powder coating on housing and bracket
- Deutsch DT connector with metal housing and sealed contacts
How This Lamp Is Built

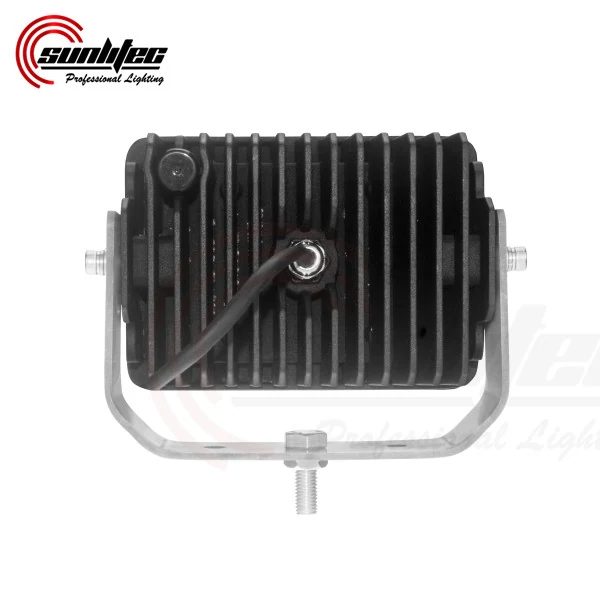

Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black
LED board assembly with Osram emitters
Lens bonding with UV-resistant adhesive
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating before shipment
- Vibration testing on a vibration test machine to simulate machine-mounted service
- Salt spray corrosion testing on housing coating and bracket
- High and low temperature alternating humidity testing across the -40 to +60 degrees Celsius window
- CISPR25 Class-4 electromagnetic compatibility test completed
Customisation Options
- Spot beam optics instead of flood pattern
- Alternative cable length for a specific machine harness
- Private label logo on the housing and printed carton
- Mixed cartons combining this lamp with other SUNLITEC models for trial orders
- Deutsch connector replaced with bare wire lead on request
How It Compares With the Alternatives
| Halogen work lamp of similar output | Draws 5A at 12V against roughly triple that for halogen and survives vibration that destroys a filament |
|---|---|
| Round 6 inch work lamp | The rectangle body fits better on flat surfaces and guard rails but requires a flat mounting area |
| Flood beam version of the same lamp | Spot reaches further ahead but leaves the near work area darker, useful for long-range visibility |
| Larger 8 inch work lamp | Lower output but fits in tight spaces where an 8 inch body would interfere with other components |
How to Fit and Use It
- Keep the cable entry pointing downward to prevent water from entering the gland
- Aim the flood beam at the near work area or the spot beam at distant targets, depending on the task
- Clean the PC lens with water and a soft cloth only—avoid solvents that may damage the anti-scratch coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 10 to 30V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CISPR25 Class-4 approved for electromagnetic compatibility and carries IP68 sealing, which supports compliance with vehicle electrical standards.
Get a Price on 6 Inch 60W Rectangle LED Work Light
Send the quantity, the destination port and any branding requirement. You will get pricing, packing data and the production lead time.
