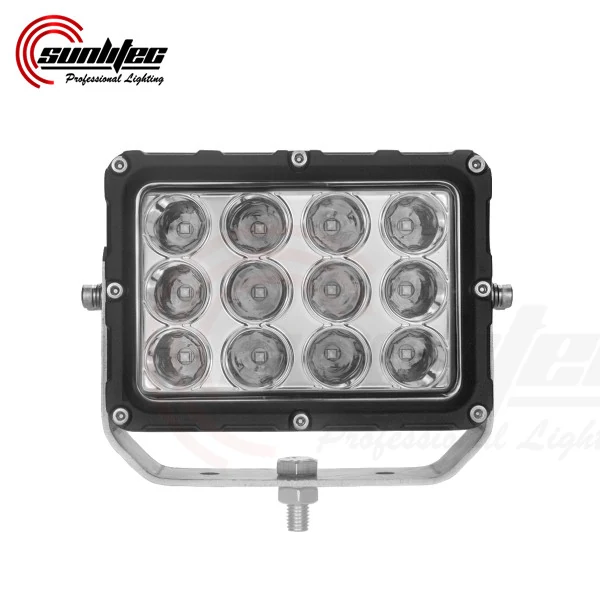

6 Inch 60W Osram Rectangle LED Work Light
Twelve 5W Osram LEDs deliver 5400 effective lumens with a flood or spot beam pattern, ensuring visibility across the work zone or at distance. The die-cast aluminium housing is sealed to IP68 and includes over and reverse voltage protection, making it suitable for machines with unstable electrical systems. The universal pedestal mount allows quick installation on trucks, excavators, forklifts, and other equipment without custom brackets.
- 12 x 5W Osram LEDs provide 5400 effective lumens for clear visibility in dark or dusty environments
- IP68 sealing and over/ reverse voltage protection prevent damage from water, dust, and electrical spikes
- Universal pedestal mount enables fast installation on a wide range of vehicles and machines
- Flood or spot beam pattern can be selected to match the task—near area coverage or long-distance illumination
- 10-30V DC operation runs on both 12V and 24V systems, reducing the number of SKUs needed
Where This Lamp Is Used
- Front and side work lighting on excavators and loaders during night construction shifts
- Auxiliary lighting on forklifts in warehouses with low ambient light and high vibration
- Rear and side illumination on tipper trucks and service vehicles used in mining or transport
- Cab roof lighting on agricultural machinery operating in low-light field conditions
- Emergency lighting on engineering vehicles where consistent performance is critical
Who It Is For
- Distributors sourcing LED work lights for 12V and 24V vehicle fleets who need a single SKU for both systems
- Machinery OEMs integrating lighting into production line builds with a repeatable mounting solution
- Fleet operators replacing halogen lamps that fail under vibration or in wet conditions
- 4x4 accessory brands developing a private label work light range with reliable performance
- Equipment dealers fitting lighting on machines where installation speed and durability matter
Problems It Solves
- Halogen work lights burn out quickly under vibration and draw excessive current from the vehicle’s electrical system
- Cheap LED lamps with poor sealing let water in during wash cycles, leading to fogging and early failure
- Lack of over voltage protection causes premature LED failure when alternators spike during engine start
- Fixed beam patterns limit use to one task—flood lights miss distant objects, spot lights leave near edges dark
- Custom brackets or complex mounting systems slow down installation and increase inventory complexity
Technical Features
- Twelve 5W Osram LEDs with a total rated power of 60W and real output of 5400 effective lumens
- Beam pattern selectable as flood or spot to suit near or long-distance visibility
- Semi-gloss black powder coating on the full housing for corrosion resistance
- Universal pedestal mount with a flat base for quick attachment to any flat surface
- Over and reverse voltage protection built into the driver circuit to prevent electrical damage
- CISPR25 Class-4 electromagnetic compatibility approval for use on vehicles with sensitive electronics
- Operating voltage range of 10-30V DC, compatible with both 12V and 24V systems
- Bare wire lead of 40cm standard, with Deutsch connector available on request
- Rated for more than 50000 hours of continuous operation under normal conditions
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-W6032 |
|---|---|
| Max Power | 60W |
| LED | 12 pcs x 5W Osram |
| Theoretical Lumen | 5400 lm |
| Effective Lumen | 5400 lm |
| Beam Pattern | Flood / Spot |
| Operating Voltage | 10-30V DC |
| Lens Material | Bayer® PC |
| Mounting | Universal pedestal mount, flat base |
| Waterproof Rating | IP68 |
| Electrical Protection | Over and reverse voltage protection |
| EMC Compliance | CISPR25 Class-4 |
| Lifetime | More than 50000 hours |
| Certification | CE, RoHS, EMC, CISPR25 Class-4 |
Materials Used
- Bayer® anti-reflective polycarbonate lens
- Semi-gloss black powder coated finish on housing
- Silicone rubber gasket and sealed cable entry
- Internal over and reverse voltage protection circuit
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black
LED board assembly with 12 x 5W Osram emitters
Bayer® PC lens bonding with UV protection
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating before shipment
- Vibration testing on a vibration test machine to simulate machine-mounted service
- Salt spray corrosion testing on housing coating and internal components
- High and low temperature alternating humidity testing across the -40 to +60 degrees Celsius range
Customisation Options
- Deutsch DT connector instead of the standard 40cm bare wire lead
- Spot beam optics instead of flood pattern
- Private label logo on the housing and printed carton
- Alternative cable length to match a specific machine harness
- Mixed cartons combining this lamp with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Round 6 inch work lamp | The rectangle body fits better on flat surfaces and guard rails where a round lamp would not align |
|---|---|
| Flood beam version of the same lamp | Spot beam reaches further ahead but leaves the near working area less illuminated |
| Larger 8 inch work lamp | Lower output but fits in tight spaces where a larger body would interfere with other components |
How to Fit and Use It
- Install on a flat surface using the universal pedestal mount and verify the base fits the machine bracket before drilling
- Leave a drip loop in the 40cm lead so water runs away from the gland rather than into it
- Choose flood beam for near work area coverage or spot beam for long-distance visibility
- Clean the PC lens with water and a soft cloth only—solvents will degrade the anti-reflective coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 10 to 30V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant and carries CISPR25 Class-4 approval for electromagnetic compatibility.
Get a Price on 6 Inch 60W Osram Rectangle LED Work Light
Send the quantity, the destination port and any branding requirement. You will get pricing, packing data and the production lead time.
