6.3 Inch 18W Flush Mount Marine LED Work Lamps SLL-6318-18W

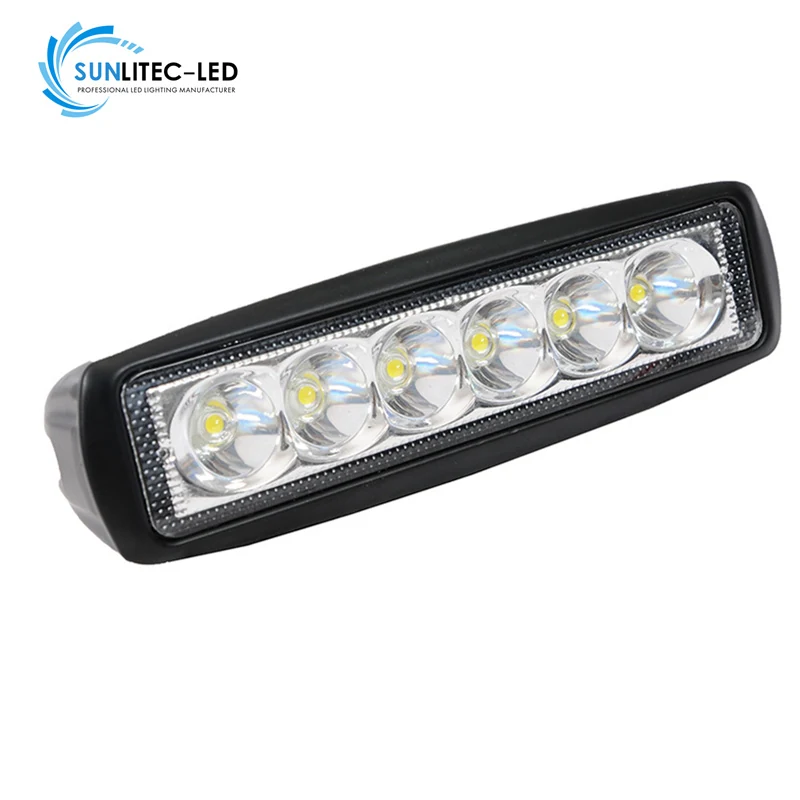

The SLL-6318-18W is a 6.3 inch flush mount marine LED work lamp designed for heavy-duty vehicles and machinery that operate in wet, dusty and high-vibration environments. Six 3W Epistar LEDs deliver 1260 effective lumens with a flood or spot beam pattern, providing clear illumination across the work zone without glare. The die-cast aluminium housing is sealed to IP69K, allowing direct exposure to high-pressure water jets and salt spray, which is essential for marine and industrial applications. The lamp is rated for 36 months warranty and operates on 10-30V DC, making it compatible with both 12V and 24V systems.
- IP69K sealing allows operation in high-pressure washdown environments, including marine vessels and construction equipment
- Six 3W Epistar LEDs deliver 1260 effective lumens with a choice of flood or spot beam for flexible lighting coverage
- Vibration-free mount with stainless steel bracket and rubber cushion reduces failure risk on rough terrain and moving machinery
- Flush mount design fits flush with the surface, reducing snagging and improving aerodynamics on vehicles
- 10-30V DC input supports both 12V and 24V fleets, reducing the number of SKUs needed for inventory
Where This Lamp Is Used
- Deck and hatch lighting on fishing boats and service vessels exposed to saltwater and pressure washing
- Cab roof and side lighting on excavators and cranes working in wet or dusty conditions
- Auxiliary lighting on tipper trucks and dump bodies where vibration and water exposure are constant
- Mounting on forklifts and industrial vehicles operating in high-moisture environments like food processing plants
- Work lighting on mining and engineering vehicles where dust, water and shock are common
Who It Is For
- Marine equipment suppliers fitting LED lights on boats and service vessels that require washdown resistance
- Fleet operators maintaining 12V and 24V vehicles with a single lamp model across both systems
- Machinery OEMs integrating a reliable flush mount lamp into production line builds
- Distributors seeking a durable work lamp with a long warranty for resale to industrial users
- 4x4 accessory brands developing a marine-rated lighting line with vibration-resistant mounting
Problems It Solves
- Standard sealed lamps fail after repeated high-pressure washdowns due to inadequate sealing at the cable entry
- Cheap brackets loosen under vibration, causing the lamp to fall off or misalign on moving machinery
- Halogen or low-lumen LED lamps do not provide sufficient visibility in dark or wet conditions
- Non-flush mount lamps create protrusions that catch on cargo, guard rails or overhead structures
- Lamps not rated for 10-30V DC require different SKUs for 12V and 24V fleets, increasing inventory complexity
Technical Features
- Six 3W Epistar LEDs with a real power draw of 18W and a maximum rating of 20W
- Semi-gloss black powder coating over the full housing and bracket
- Mounting pattern designed for flush installation on flat or slightly curved surfaces
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-6318-18W |
|---|---|
| Real Power | 18W |
| LED | 6 pcs x 3W Epistar |
| Effective Lumen | 1260 lm |
| Beam Pattern | Flood/Spot |
| Operating Voltage | 10-30V DC |
| Lens Material | Anti-scratch PC |
| Mounting | Flush mount, bolt fastened, rubber cushioned |
| Waterproof Rating | IP69K |
| Net Weight | 0.41 kg per set |
| Warranty | 36 months |
| Certification | CE, RoHS |
Materials Used
- Anti-scratch UV resistant polycarbonate lens
- Silicone rubber gasket and sealed cable entry
- Semi-gloss black powder coating
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black
LED board assembly with Epistar emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP69K rating before shipment
- Vibration testing on a vibration test machine to reproduce machine mounted service
- Salt spray corrosion testing on housing coating and stainless bracket
Customisation Options
- Spot beam optics in place of the flood pattern
- Private label logo on the housing and printed carton
- Alternative cable length for a specific machine harness
- Mixed cartons combining this lamp with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Standard 6 inch flush mount lamp | The 6.3 inch size fits flush with standard mounting holes but has a wider beam pattern than older models |
|---|---|
| Flood beam version | The spot beam extends visibility further ahead but leaves the near working area less evenly lit |
| Non-flush mount lamp | Flush mount reduces protrusion and snag risk on vehicles with tight clearance |
| Lamp with plastic bracket | The stainless steel bracket with rubber cushion resists vibration and corrosion better than plastic |
How to Fit and Use It
- Aim the flood beam at the near work zone or the spot beam at distance, depending on the task
- Clean the PC lens with water and a soft cloth only, since solvents will haze the anti-scratch coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 10 to 30V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for marine and industrial environments
The lamp is IP69K rated, CE and RoHS compliant, and tested for salt spray and vibration, making it suitable for marine and heavy-duty industrial use.
Get a Price on 6.3 Inch 18W Flush Mount Marine LED Work Lamps S
Send the quantity, the destination port and any branding requirement. You will get pricing, packing data and the production lead time.
