4 Inch MANUFACTURER OFFROAD DUAL SIDE SHOOTER LED WORK LIGHT BAR SLL-0460C-60W
The SLL-0460C-60W is a 4 inch dual side shooter LED work light bar designed for off-road vehicles and heavy machinery that operate in harsh conditions. It delivers 4800 effective lumens with a combo beam pattern, providing both wide coverage and extended reach. The die-cast aluminium housing is rated IP69K, ensuring protection against high-pressure water jets and dust ingress during frequent washdowns. The light operates on 9-32V DC, making it compatible with both 12V and 24V systems without requiring a voltage regulator.
- Combo beam pattern combines wide flood coverage with focused spot reach, illuminating both near and distant work zones
- IP69K sealing withstands high-pressure water jets and dust, suitable for daily washdowns on construction and mining machines
- 9-32V DC input range allows one part number to serve both 12V and 24V vehicle fleets, reducing inventory complexity
- CREE LED chips provide consistent light output and long life under vibration and thermal stress
- Bottom mount bracket with 4 inch footprint fits standard mounting points on off-road vehicles and excavators
Where This Lamp Is Used
- Side lighting on off-road vehicles and ATVs during night trail navigation and recovery operations
- Front and side work lighting on excavators and loaders in low-light construction zones
- Auxiliary lighting on mining trucks and service vehicles where high-pressure washdowns are routine
- Mounting on the side of a crane or engineering vehicle to illuminate the work zone without obstructing the operator's view
- Fleet fitment on 12V and 24V trucks where a single light bar model simplifies procurement and stock management
Who It Is For
- Distributors sourcing LED work lights for off-road and industrial applications who need a single SKU for mixed voltage fleets
- Machinery OEMs integrating work lights into production line builds with consistent mounting patterns and electrical specs
- Fleet operators replacing halogen or lower-rated LED bars that fail under vibration and washdown
- 4x4 accessory brands developing a private label work light bar with dual beam functionality
- Equipment dealers fitting lights on machines used in mining, agriculture, and construction with frequent cleaning cycles
Problems It Solves
- Halogen side shooter lights burn out quickly under vibration and draw excessive current from vehicle alternators
- Narrow spot beams leave the immediate work area dark, while wide flood beams lack reach for distant object detection
- Inconsistent voltage input across 12V and 24V systems requires two separate SKUs, increasing inventory and ordering complexity
- Poorly sealed cable entries allow water ingress during wash cycles, leading to internal corrosion and early failure
Technical Features
- Sixteen CREE 5W LED chips with a real power draw of 60W maximum and 4800 effective lumens
- Semi-gloss black powder coating over the full housing and bracket
- 9-32V DC input range supports both 12V and 24V vehicle systems without voltage regulation
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-0460C-60W |
|---|---|
| Max Power | 60W |
| Real Power | 60W |
| Theoretical Lumen | 4800 lm |
| Effective Lumen | 4800 lm |
| Beam Pattern | Combo |
| Colour Temperature | 6000K |
| Operating Voltage | 9-32V DC |
| Lens Material | Anti-scratch PC |
| Bracket Material | Aluminium, bottom mount |
| Waterproof Rating | IP69K |
| Certification | CE, RoHS |
Materials Used
- Anti-scratch UV resistant polycarbonate lens
- Aluminium bottom mount bracket

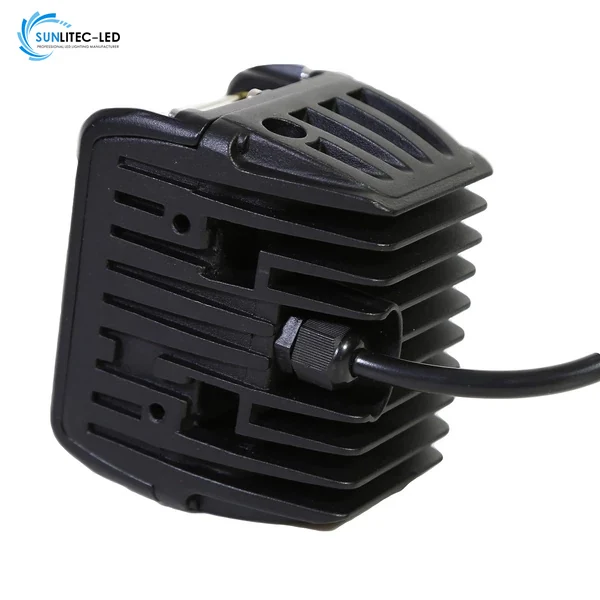

- Silicone rubber gasket and sealed cable entry gland
- Semi-gloss black powder coating
How This Lamp Is Built

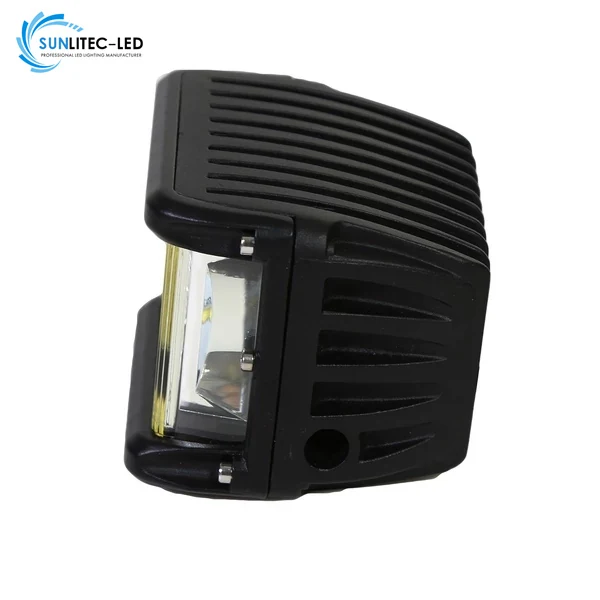

Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black
LED board assembly with CREE emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP69K rating before shipment
- Vibration testing on a vibration test machine to reproduce machine mounted service
- Salt spray corrosion testing on housing coating and bracket
Customisation Options
- Alternative beam pattern (flood or spot) on request
- Private label logo on the housing and printed carton
- Alternative cable length for a specific machine harness
- Mixed cartons combining this light bar with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Round 4 inch work light bar | The square body fits the same mounting footprint but provides more LED area and better heat dissipation |
|---|---|
| Spot beam version of the same lamp | Combo beam covers both near and distant areas, while spot only reaches far ahead and leaves the immediate zone dark |
How to Fit and Use It
- Mount on a flat surface using the bottom bracket and verify the 4 inch footprint matches the machine bracket before drilling
- Aim the combo beam to cover both the immediate work zone and the distance ahead, using a spot lamp separately if needed
- Clean the PC lens with water and a soft cloth only, as solvents will damage the anti-scratch coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 9 to 32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant, which are required for sale in Europe and North America, but it does not carry ECE R10 approval.
