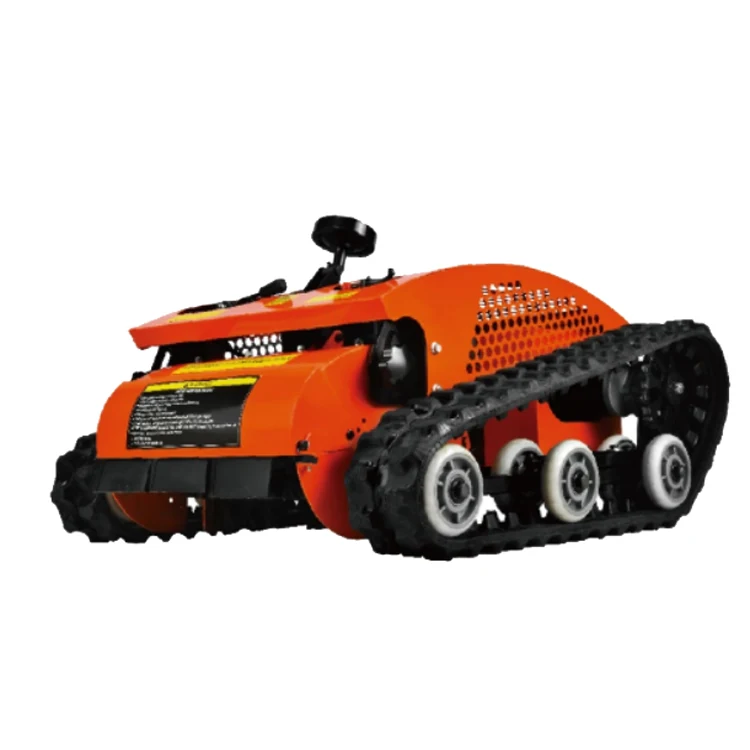

Remote Control Flail Mower SJ-Y01 With 50cm Cutting Width
The SJ-Y01 is a radio controlled flail mower for orchard, embankment and slope maintenance crews who currently have to send an operator onto ground that is too steep or too rough to walk safely. A 224cc RATO225 OHV engine drives a flail rotor with a 50cm cutting width, and the operator works it from up to 200m away rather than behind the handlebars. It shreds undergrowth and crop residue down to a 0.5 to 4cm stubble instead of laying it in windrows that then have to be collected. At 112kg gross in a 116*75*60cm carton it loads 50 units to a 20'GP and 100 to a 40'GP, which is what makes it viable for a dealer stocking a full season.
- Operated by radio from up to 200m away, so embankments and steep orchard banks are cut without putting a person on the slope
- 50cm cutting width works between tree rows and along canal edges where a tractor deck will not fit
- Stubble height adjustable from 0.5 to 4cm so the same machine does fine lawn edges and rough scrub knockdown
- Flail rotor shreds residue in place instead of leaving windrows that need a second collection pass
- Solid tires remove the roadside puncture that takes a machine off the route for a day
- 100 units per 40'GP keeps the landed cost per machine workable for a distributor buying in volume
Product Gallery
Specifications
| Model No | SJ-Y01 |
|---|---|
| Engine | RATO225 |
| Engine Type | OHV 4-stroke |
| Displacement | 224cc |
| Max Power | 4.9kW |
| Max Speed | 3600r/min |
| Start Mode | Recoil |
| Fuel Type | Unleaded gasoline |
| Fuel Volume | 3.9L |
| Oil Volume | 0.55L |
| RC Receiving Distance | 200m |
| Gear Shifting | 2, 1, 0, -1 |
| Tires Type | Durable solid tires |
| Cutting Width | 50cm |
| Stubble Height | 0.5-4cm |
| Gross / Net Weight | 112 / 92kgs |
| Carton Size | 116*75*60cm |
| Load Qty 20'GP / 40'GP | 50pcs / 100pcs |
Figures as supplied by the factory. Confirm critical dimensions in writing before ordering.
Application Scenarios
- Orchards and vineyards clearing undergrowth between tree rows without damaging surface roots
- Rice paddies where weeds have to be managed on bunds and terraces
- Post harvest stubble management, shredding crop residue so it breaks down faster
- Road embankments, canal edges and parkland maintained by public infrastructure teams
- Disaster recovery crews clearing flood damaged vegetation or post storm debris
Who It Is For
- Importers and distributors adding remote control ground care to an agricultural machinery range
- Municipal and highway vegetation maintenance departments
- Orchard, vineyard and plantation operators
- Landscape and grounds maintenance contractors
- Equipment hire fleets serving slope and embankment work
Problems It Solves
- Walk behind mowers put an operator on slopes and wet bunds where footing is the main injury risk; the 200m radio link keeps them off it
- Tractor mounted decks are too wide for 50cm gaps between tree rows and canal shoulders
- Rotary mowers leave cut material lying, which forces a raking or collection pass after every cut
- Pneumatic tires puncture constantly in cleared scrub and post storm debris; solid tires do not
- Machines with no gear range either scalp fine grass or stall in heavy bush, while 2/1/0/-1 shifting lets the operator match ground conditions
Technical Features
- RATO225 OHV four stroke engine, 224cc, rated 4.9kW at 3600r/min
- Radio control with 200m receiving distance
- Flail rotor cutting 50cm wide with stubble height set between 0.5 and 4cm
- Gear shifting with two forward speeds, neutral and one reverse
- Durable solid tires
- Recoil start on unleaded gasoline, 3.9L fuel volume and 0.55L oil volume
Quality Control
- Incoming inspection on engines, gearboxes and steel before they reach the line
- In process checks during welding and assembly of the mower deck and rotor
- Radio link and drive function tested on every finished machine
- 100% inspection before packing, with real time production status shared with the buyer
Customization Options
- OEM and ODM production to buyer drawings and specification
- Buyer branding, colour and decal set
- Manual and packaging artwork in the destination market language
- Carton and packing format to suit the sales channel
How It Compares
Against Walk behind flail mower
A walk behind machine needs the operator on the same ground as the mower. The SJ-Y01 is worked from up to 200m away, which is the difference between cutting a steep embankment and refusing the job.
Against Rotary lawn mower
A rotary deck cuts and drops material that then has to be collected. The flail rotor shreds it in place at 0.5 to 4cm stubble, so there is no second pass.
Against Tractor mounted mower
A tractor deck cannot get into a 50cm gap between tree rows or onto a canal shoulder. This machine is sized for exactly that work.
Use Guide
- Check oil level and fill with fresh unleaded gasoline before the first start of the day
- Confirm the radio link and stop function at working distance before driving onto a slope
- Set stubble height to suit the ground, higher for rough scrub and lower for maintained grass
- Work in first gear in heavy growth and shift up only once the rotor clears freely
- Stop the engine before inspecting or clearing the rotor, and check flails for wear at the end of each season
RC Flail mower Buyer Questions
What is the minimum order quantity?
One 20ft container, which holds 50 units of this model. A single sample order is also accepted if you want to test the machine first.
How long is the lead time?
25 to 35 days for a full 40HQ container. A sample order ships in 1 to 7 days.
How many units fit in a container?
50 units in a 20'GP and 100 units in a 40'GP, packed at a carton size of 116*75*60cm and 112kgs gross per machine.
How far will the remote control work?
The receiving distance is 200m. Always confirm the link and the stop function at working distance before starting on a slope.
What warranty and spare parts support do you provide?
Within the warranty period, spare parts needed because of a quality problem are supplied free of charge. Outside the warranty period, spare parts are sold at cost price.
Can the mower be supplied under our own brand?
Yes. OEM and ODM production is available, including buyer branding, colour scheme, manual and packaging artwork.
What payment terms and shipping port do you use?
Western Union, PayPal or T/T depending on order quantity, shipped from Ningbo or Shanghai.
