Wall Lights
High Purity Aluminium Wall Light SB2167 IP54
IP54 aluminium wall light in three lengths, 8 W to 24 W, matt black matt white or gold
Wall Lights
Product Overview

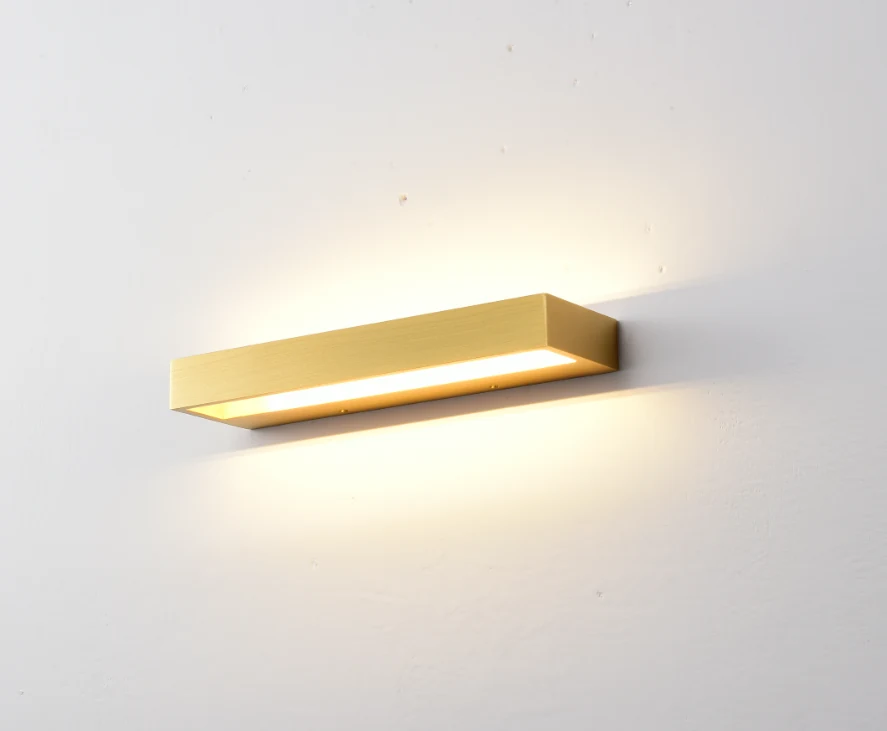

SB2167 is an IP54 rated wall light in three lengths, 220 mm, 300 mm and 600 mm, all 35 mm deep and 95 mm high. It uses a CREE LED board with a Done brand driver at 8 W, 12 W or 24 W by length, in an aluminium body with a high quality silicone diffuser. The IP54 rating means it can be used in bathrooms and covered outdoor areas, not only in dry rooms.
| Material | Aluminium + high quality silicone diffuser |
|---|---|
| Product Size | SB2167-1S L220 *W35 *H95mm / SB2167-1M L300 *W35 *H95mm / SB2167-1L L600 *W35 *H95mm |
| Available Colours | Matt black/ Matt white / Gold |
| LED Colour Temperature | 3000K/4000K/6000K |
| LED and Driver | CREE LED+Done brand driver 8W/12W/24W |
| Product Weight | 1.2KG/ 1.8KG/2.5 |
| Packaging | Single packaging per piece |
| Production Time | 20 days or less |
| Delivery Time | Based on the mode of shipping chosen |
Key Benefits
What You Get From This Model
- IP54 rating covers bathrooms, covered balconies and entrance walls, which a standard indoor wall light does not
- Three lengths share one profile, so a project can mix sizes without a visual break
- 35 mm depth keeps the fixture close to the wall in a corridor
- CREE LED with a Done brand driver rather than an unbranded board
- Matt black, matt white and gold are all standard finishes
Problems It Solves
What It Fixes On Site
- Indoor-only wall lights fail early in bathrooms and covered outdoor areas
- Deep wall fixtures project into narrow corridors
- Mixing indoor and IP rated fixtures from different ranges leaves a visible mismatch
Application Scenarios
Where This Model Is Installed
- Bathroom mirror walls in hotels and apartments
- Covered entrance walls and balconies
- Corridors where a projecting fixture would be a hazard
- Stairwell walls as low level guidance light
Who It Is For
Buyers Who Specify It
- Hotel buyers who need one wall light family for dry and damp rooms
- Apartment developers specifying bathroom lighting
- Distributors who need an IP rated decorative wall light
Technical Features
How It Is Built
- Three lengths: 1S 220 mm, 1M 300 mm, 1L 600 mm, all 35 x 95 mm in section
- IP54 rated
- CREE LED with Done brand driver, 8 W, 12 W and 24 W by length
- Aluminium body with high quality silicone diffuser
- Weights 1.2 kg, 1.8 kg and 2.5 kg by length
Quality Control
What We Check Before It Ships
- Raw material selection checked before processing
- In process checks during assembly and wiring
- Every fixture powered and inspected before packing
- Packing verified by drop test before a run ships
Customisation Options
What Can Be Changed To Order
- Colour temperature selected per line item: 3000K, 4000K or 6000K
- Body colour sprayed to order outside the standard finishes
- Suspension drop cut at the factory when the measured ceiling height is supplied
- Private label cartons and labelling agreed at order stage
Certification documents beyond our export certificate are supplied on request against the destination market. We do not publish claims we cannot evidence.
Use Guide
Installing And Living With It
- Mount at 1800 to 2000 mm above finished floor beside a mirror so the light falls on the face
- Use the 600 mm 1L length above a double basin and the 220 mm 1S beside a single mirror
- IP54 covers splash, not immersion, so keep it out of shower zones that require a higher rating
Comparison
How It Differs From The Alternatives
| Compared with | Difference |
|---|---|
| SX2126-RS | Wall mounted and IP54 rated, where SX2126 is a dry-room ceiling fixture |
| SD2169-A | A wall fixture that needs no suspension, for corridors and bathrooms with no ceiling option |
Also Consider
Related Products
Floor LightsGesture Dimming Floor Light SL2312-1C1300 mm upright floor light with top button dimming, Cree COB 5 W, 3.1 kgView specification
Chandeliers and Pendant LightsHigh Purity Alu Pendant Light SD2343-M1270 mm linear wave pendant, 50 mm wide, 18 W, sand black and greyView specification
Chandeliers and Pendant LightsHigh Purity Alu Pendant Light SD2169-A1200 mm straight linear pendant, 120 mm wide, 34 W, sand blackView specificationCase Studies
Projects Using This Range
Case StudyChandelier Project in DubaiA lobby ceiling of that size cannot be held by one fixture, so the installation had to be built from repeated elements that still read as one piece.Read more
Case StudyLighting Project in SpainA long space lit by repeated fixtures shows any colour temperature variation along the run.Read moreKnowledge Centre
Related Guides
Buying GuideWhy Driver Brand Matters in Decorative LightingWe publish the driver brand on every model: Eaglerise, YSD, Waiberlon or Done brand. Most decorative lighting catalogues do not, and there is a reason for that.Read more
Material GuideSilicone PC and Acrylic Diffusers ComparedOur specifications name the diffuser material on every model. The choice between silicone, PC and acrylic changes how the fixture looks, how bright it is and how it survives shipping.Read moreQuestions Buyers Ask
High Purity Aluminium Wall Light SB2167 IP54 Questions
What is the IP rating of SB2167?
IP54, which covers dust and splashing water. It is not rated for immersion or direct shower spray.
What lengths are available?
220 mm (1S), 300 mm (1M) and 600 mm (1L), all 35 mm deep and 95 mm high.
What are the wattages?
8 W, 12 W and 24 W, matched to the three lengths.
Which LED and driver are used?
A CREE LED board with a Done brand driver.
Can it be used outdoors?
In covered outdoor areas such as a porch or a balcony soffit. It is not intended for fully exposed positions.
What finishes are standard?
Matt black, matt white and gold.
Quote High Purity Aluminium Wall Light SB2167 IP54
Tell us the quantity, the finish and the colour temperature and we come back with a price and a production slot.
