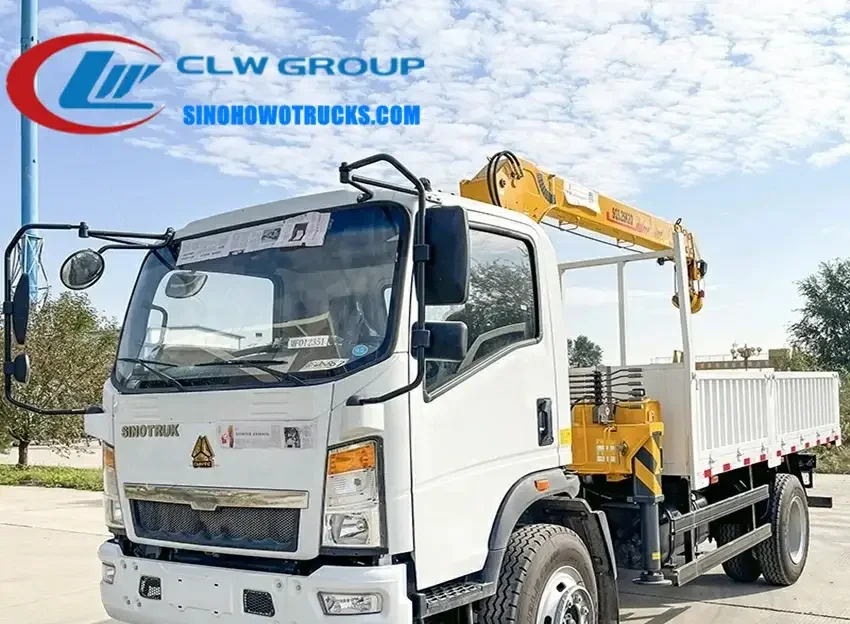

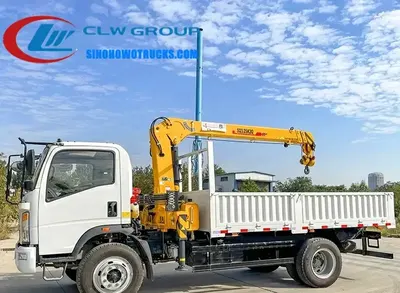

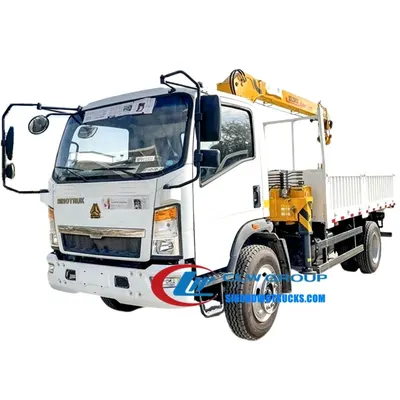

The Sinotruk Wangpai small crane truck is a 4x2 light-duty truck mounted crane built on a left-hand drive HOWO chassis, designed for construction, logistics, and utility operations in regions with limited access to heavy lifting equipment. It carries a 10 to 12 ton payload and features a fully integrated crane system that enables self-loading and unloading without requiring a separate crane. The crane operates with 360-degree rotation, extension, and lifting functions, making it suitable for urban, rural, and off-road environments where mobility and compact operation are essential.
| Chassis | Sinotruk Wangpai 4x2 left hand drive |
|---|---|
| Chassis Model | ZZ1107G4215C1 |
| Engine | 140 HP 4-cylinder inline diesel, water cooled |
| Gearbox | 6-speed manual |
| Wheelbase | 3450 mm |
| Loading Capacity | 10 to 12 tons |
| Cargo Box Inner Dimension | 6500 x 2300 x 2300 mm |
| Cargo Box Thickness | Bottom: 3 mm, Sides: 1.5 mm |
| Crane Type | Telescopic or knuckle boom (optional) |
| Crane Manufacturer | Palfinger, XCMG, or Chengli (China’s top brand) |
| Emission Standard | EURO 2 |
| Drive Type | Left hand driving |
| Truck Size | 6000 x 2200 x 2800 mm |
| Lead Time | 20 days |
| Shipping Port | China main port |
| Payment | T/T |
| Mobile crane with separate truck and crane | Higher cost and longer setup time, but better lifting capacity and reach |
|---|---|
| Standard flatbed truck with manual lifting | Slower and more labor-intensive, but lower initial cost and simpler maintenance |
| Heavy-duty crane truck with 6x4 chassis | Higher payload and stability, but less maneuverable in tight urban or rural areas |
Generally 20 days after the advance payment is received. The exact date depends on crane type and component availability.
Yes. The crane can be supplied as either a telescopic or knuckle boom, depending on your lifting and reach requirements.
T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
No. The standard is left-hand drive. Right-hand drive is not available for this model.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
Yes. The cargo box color and logo are applied free of charge to match your branding.
Yes. Radio remote control is an optional fitment and can be added at order stage.
Send us your destination port and we will quote price, lead time and freight.
