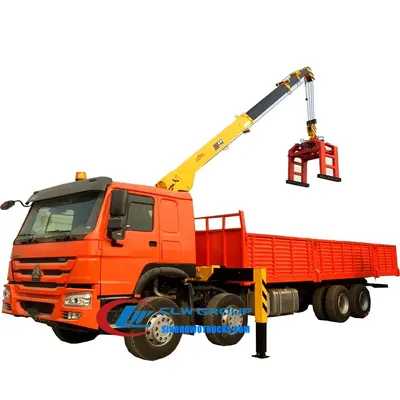

The Sinotruk HOWO 18 ton telescopic truck mounted crane with grabber is a 41,000 kg gross weight vehicle built on an 8x4 HOWO chassis with a 371 HP diesel engine and 10 speed manual gearbox. It is designed for construction sites, quarries, ports, and material handling operations where a self-loading crane is needed without relying on external lifting equipment. The crane can rotate 360 degrees, extend its boom, and lift up to 18 tons at its maximum capacity, making it suitable for loading and unloading heavy cargo, containers, and bulk materials in remote or low-infrastructure areas.
| Chassis | Sinotruk HOWO ZZ1317N4667W, 8x4 left hand drive |
|---|---|
| Engine | 371 HP diesel |
| Gearbox | 10 shift manual, HW19710 |
| Overall Size | 12500 x 2550 x 4050 mm |
| Kerb Weight | 21500 kg |
| Wheelbase | 1800 + 4600 + 1350 mm |
| Front Axle | SINOTRUK HF7 |
| Rear Axle | SINOTRUK ST16 Heavy reduction drive axle |
| Crane Capacity | 18 tons at maximum outreach |
| Boom Type | Telescopic, optional knuckle boom |
| Control Options | Top seat control or radio remote control optional |
| Lead Time | 20 days |
| Shipping Port | China main port |
| Payment | T/T |
| 8x4 mobile crane with fixed boom | Higher lifting capacity and reach but less maneuverable in tight spaces and requires more setup time |
|---|---|
| Standard truck with forklift attachment | Better for palletized loads but cannot handle bulk or irregular materials with a grabber |
| Truck mounted crane with lower capacity | Cheaper but cannot lift heavy or bulky items and may require multiple trips |
Generally 20 days after the advance payment is received. The exact date depends on chassis availability and equipment configuration.
Yes. The standard is telescopic, but knuckle boom is available as an option. Specify at order stage.
T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
No. The chassis is left hand drive only. Confirm this at order stage as it cannot be changed later.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
Yes. The grabber can be tailored for scrap metal, aggregates, or other materials. Provide material type and handling rate for configuration.
Yes. Free operator training is provided at the factory before shipment, including crane operation and safety procedures.
Send us your destination port and we will quote price, lead time and freight.
