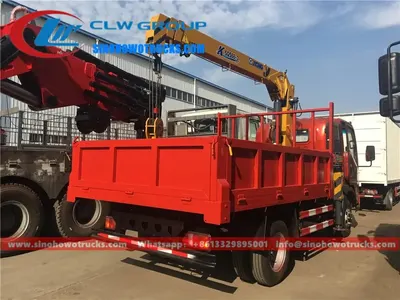

Rear view of the HOWO truck crane showing the 360 degree rotating boom and cargo box

Side view of the truck crane with the boom extended and the operator using the top seat control

Sinotruk Howo 5 ton small truck mounted crane for sale Senegal

Name: Sinotruk Howo 5 ton small truck mounted crane for sale Senegal
Brand: Sinotruk HOWO

The Sinotruk HOWO 5 ton small truck mounted crane is a 4x2 left hand drive vehicle built on a 140 HP diesel chassis with a 6-speed manual gearbox. It carries a 7000 kg payload and a 4800 x 2300 x 550 mm cargo box, designed for construction sites, logistics hubs, and industrial maintenance teams that need to load and unload freight without relying on external cranes. The crane is mounted on the rear and can rotate 360 degrees, extend and lift with a single cylinder synchronization system, allowing one operator to handle the entire process efficiently.

Request A Quote Email Specification

Key Benefits

4x2 HOWO chassis with 140 HP engine ensures reliable performance on rough terrain and unpaved access roads
7000 kg payload capacity allows transport and on-site lifting of heavy materials without a second crane
Single cylinder synchronization with guy cable technology improves lifting efficiency and reduces cycle time
Pentagon and hexagon boom design increases anti-bending strength and stability under load
Float three-point bridge structure reduces stress on the chassis during travel
Optional radio remote control and top seat control allow flexible operation from multiple positions
High-strength steel construction ensures durability under repeated lifting cycles

Buyer Profile

Who It Is for

Construction companies operating in West Africa with limited crane availability
Utility and telecom contractors needing mobile lifting for pole and line work
Port and warehouse operators managing freight without fixed crane access
Mining and quarry fleet owners requiring mobile lifting for maintenance tasks
Government infrastructure projects with tight budgets and remote work zones
Equipment rental companies offering crane services without owning multiple machines

Operating Problems

Problems It Solves

Lack of fixed cranes at remote or temporary work sites requiring on-site lifting
High cost of hiring external cranes for short-duration or one-off lifting tasks
Delays caused by waiting for crane availability at job sites with tight schedules
Inability to move heavy loads across rough or unpaved terrain with standard trucks
Need for multiple vehicles to transport and lift materials, increasing logistics complexity
High maintenance costs and downtime from using older or non-specialized lifting trucks

Where It Works

Application Scenarios

Construction sites in Senegal and West Africa where crane access is limited and roads are unpaved
Industrial maintenance teams moving heavy components between storage and equipment
Logistics contractors handling bulk goods at ports or warehouses without fixed crane infrastructure
Utility crews installing poles, transformers, or overhead lines in remote rural areas
Mining and quarry operations requiring mobile lifting for equipment and spare parts
Roadside repair teams lifting heavy components during emergency vehicle maintenance

Engineering

Technical Features

4x2 left hand drive chassis with 140 HP diesel engine and 6-speed manual gearbox
Single cylinder synchronization system with guy cable for balanced boom movement
Pentagon and hexagon boom design with symmetrical center for improved bending resistance
Compact hinge point design reduces overall footprint and improves maneuverability
Float three-point bridge structure minimizes chassis stress during transit
Self-developed slewing machine with high drive force for varied working conditions
Anti-slewing impulse equipment improves vehicle stability during lifting operations
Optional radio remote control and top seat control for operator flexibility
All structural components made from high-strength steel for long-term durability
Crane options: telescopic boom or knuckle boom, selected at order stage

Specifications

Technical Data


Chassis	Sinotruk HOWO 4x2 left hand drive
Engine	YC4E160-33, 160 HP, turbocharged, high pressure common rail
Gearbox	6-speed manual
Payload Capacity	7000 kg
Curb Weight	Approx. 5800 kg
Wheelbase	4500 mm
Overall Dimension	Approx. 8100 x 2450 x 3400 mm
Cargo Box Dimension	4800 x 2300 x 550 mm
Crane Type	Telescopic or knuckle boom, optional
Lifting Capacity	5 tons
Boom Extension	360 degree rotation, extendable
Control Options	Standard control, optional radio remote, optional top seat control
Lead Time	20 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

High-strength steel used in all structural components of the crane and chassis
Steel cargo box with welded construction for load integrity
Aluminium alloy used in crane control panels and non-load-bearing parts
Rubber seals and gaskets in hinge points and access doors for weather resistance

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and verified for wheelbase and drive configuration
Cargo box is cut, formed, and welded to the chassis frame with high-strength steel
Crane boom and lifting mechanism are assembled and aligned with the chassis
Single cylinder synchronization system and guy cables are installed and tested
Float three-point bridge structure is fitted to reduce chassis stress during travel
Slewing machine and anti-slewing impulse system are mounted and calibrated
Control panel, remote control, and top seat control are installed and tested
Vehicle is painted and logos applied as per customer request
Final inspection includes crane function, load test, and chassis stability check

Testing

Quality Control

All structural welds inspected using non-destructive testing methods
Crane lifting capacity tested under full load at 100% rated capacity
360 degree rotation and boom extension tested for smooth operation and safety
Chassis stress tested during simulated travel with full load
Every unit is 100 percent tested before delivery
Photos and videos of the finished truck are sent to the buyer before balance payment

Build to Order

Customization Options

Crane type selected at order stage: telescopic boom or knuckle boom
Radio remote control and top seat control available as optional fitments
Cargo box color and logo applied free of charge
Chassis drive configuration confirmed at order stage (left hand drive standard)
Custom load distribution and mounting points available upon request
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

Mobile crane with separate transport truck	Higher total cost and more vehicles to manage, but greater lifting capacity and reach
Fixed crane at a job site	Less flexible and requires site preparation, but more stable and higher rated capacity
Smaller 3 ton truck crane	Lower lifting capacity but better maneuverability in tight urban or rural areas

Operating Notes

Use Guide

Confirm left hand drive configuration at order stage as it cannot be changed after production
Use only the designated lifting points and do not exceed the 5 ton rated capacity
Engage the anti-slewing impulse system before lifting to prevent vehicle instability
Perform daily checks on hydraulic lines, cables, and boom hinges before operation
Use radio remote control or top seat control only when the vehicle is stationary or moving slowly
Drain hydraulic fluid and inspect seals after prolonged exposure to high humidity or rain

Buyer Questions About This Truck

What is the lead time for this truck crane?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and crane configuration.

Can the crane be a telescopic or knuckle boom?

Yes. You can choose between telescopic boom or knuckle boom at the time of order.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Is right hand drive available?

No. The standard configuration is left hand drive. Right hand drive is not available for this model.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the cargo box color and logo be customized?

Yes. The cargo box color and logo are applied free of charge based on your request.
