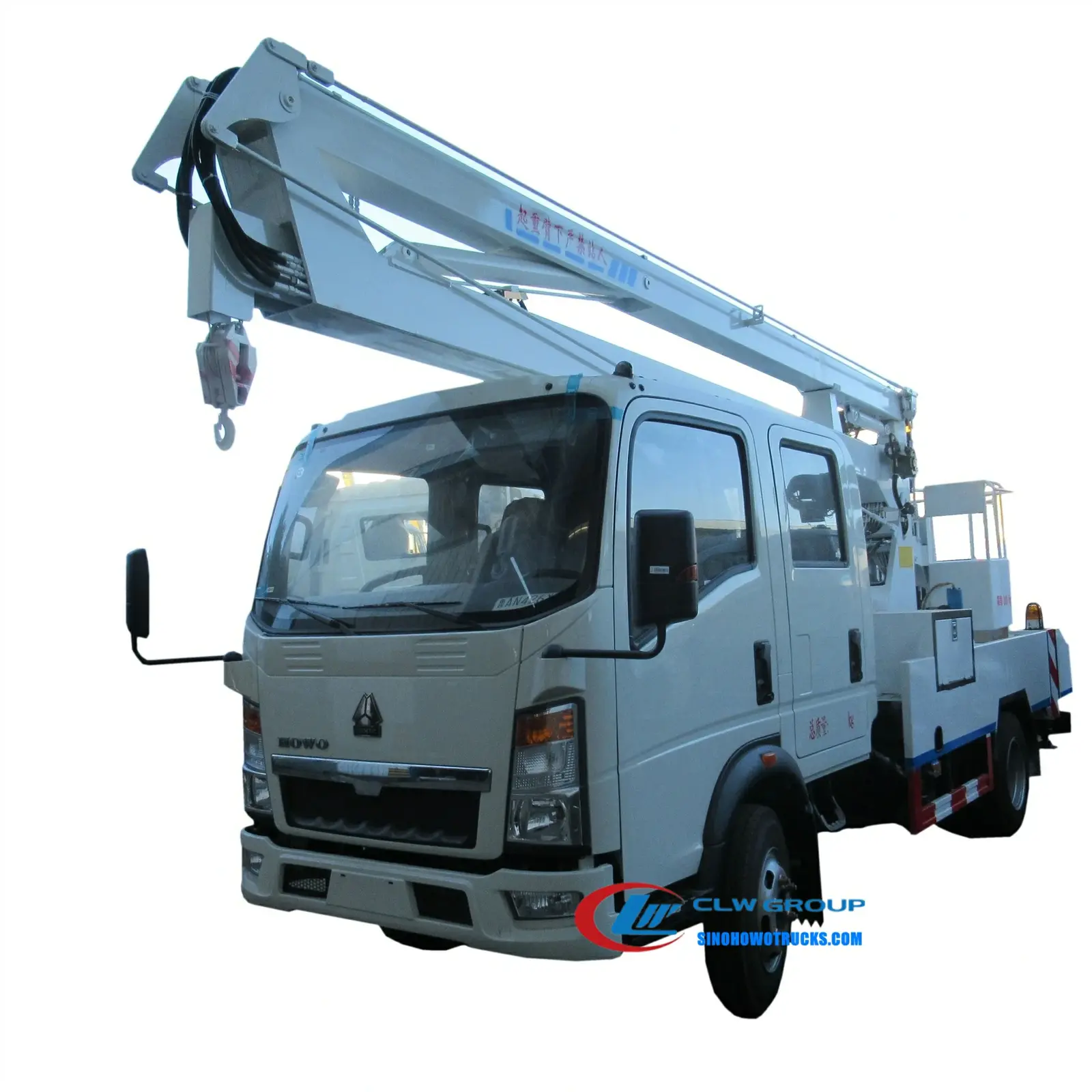

Sinotruk HOWO double cabin 12 meter aerial bucket truck in urban setting with telescopic boom raised

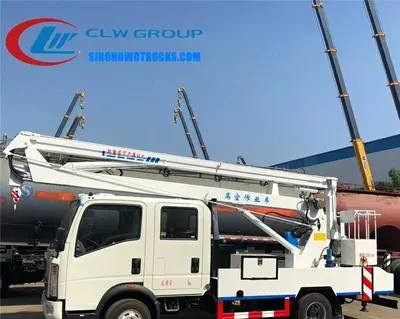

Side view of the HOWO aerial lift truck showing double cabin and work basket with 90 degree rotation

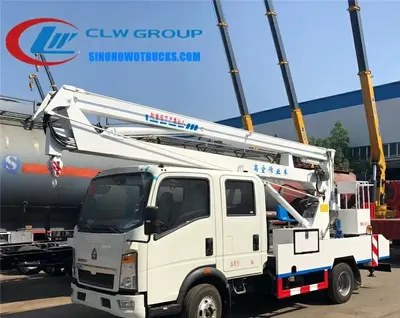

Rear view of the HOWO boom lift truck with outriggers deployed and hydraulic system visible

Sinotruk Howo double cabin 12meters aerial bucket truck Turkmenistan

Name: Sinotruk Howo double cabin 12meters aerial bucket truck Turkmenistan
Brand: Sinotruk HOWO

The Sinotruk HOWO double cabin 12 meter aerial bucket truck is a 4x2 chassis mounted telescopic boom lift built for overhead maintenance tasks in urban and rural infrastructure. It is specified by municipal utilities, road maintenance departments, and telecom contractors that require a stable, high-reach platform for working on traffic signals, street lighting, power lines, and signage. The 12 meter telescopic boom supports a 120 kg rated work basket with 90 degree left and right rotation, enabling access to structures in tight spaces. The truck is designed for operation in harsh environments with a 120 HP engine, 6-speed manual gearbox, and a robust chassis capable of sustained use over 500,000 km without overhaul.

Request A Quote Email Specification

Key Benefits

12 meter telescopic boom lifts workers to 12 meters with 90 degree rotation for access to complex structures
Double cabin design with air conditioning and USB interface radio improves operator comfort and control
Three operating modes: wireless remote, wired control, and handle operation allow use in varied site conditions
Four outriggers and front support stabilize the truck during lift operations on uneven ground
Computer intelligent control with automatic range limits and danger condition alarms enhances safety
15 years of spare parts and technical support availability ensures long-term serviceability
120 HP engine and 6-speed manual gearbox provide reliable power for continuous operation
Work basket available in steel or reinforced fiberglass with insulation for electrical safety

Buyer Profile

Who It Is for

Municipal public works departments managing street lighting and traffic control systems
Telecom and power utility companies maintaining overhead line networks
Highway and road authority maintenance teams for signage and signal upkeep
Airport and industrial park facility managers requiring safe access to elevated equipment
Contractors supplying turnkey maintenance services to infrastructure operators
Government agencies procuring durable, long-life aerial platforms for public service fleets

Operating Problems

Problems It Solves

Lack of stable, high-reach platforms for working on overhead infrastructure in remote or hard to access areas
Shortages of reliable aerial lifts that can operate in extreme temperatures and dusty conditions
High downtime due to limited availability of spare parts and technical support for imported models
Inadequate safety systems in low-cost platforms that lack automatic alarms or load limits
Poor access to operator controls in confined or high-vibration environments
Inflexible operation modes that prevent use in tight or complex work zones

Where It Works

Application Scenarios

Municipal road maintenance crews servicing traffic lights and street signs on busy urban roads
Telecom and power line contractors performing repairs on overhead cables in remote or rural areas
Landscape teams pruning trees near power lines or high voltage infrastructure
Highway departments installing or replacing signage on bridges and overpasses
Utility companies maintaining overhead electrical distribution lines in dusty or hot climates
Airport ground crews accessing lighting and signage on runways and taxiways

Engineering

Technical Features

12 meter fully telescopic hydraulic boom with 90 degree left and right rotation
Work basket rated for 120 kg with steel or reinforced fiberglass construction
Three control modes: wireless remote, wired, and handle operation for flexible use
Computer intelligent control with automatic range limits and danger condition alarms
Four outriggers and front support for enhanced stability during lift operations
Relief valves, balance valves, double-way hydraulic locks, and motor emergency system for safety
120 HP engine with 6-speed manual gearbox and 500,000 km no-overhaul durability
Double cabin with air conditioning, USB interface radio, and oil brake with vacuum booster
Working height of 12 meters with a 120 kg load capacity at maximum extension
Folding arm design allows compact storage and easier maneuvering in urban areas

Specifications

Technical Data


Chassis	Sinotruk HOWO double cabin 4x2
Engine	120 HP, 66 kW, 90 Hp, CY4100Q
Gearbox	6-speed manual
Overall Size	7400 x 1980 x 3110 mm
GVW	Appro × 4325 kg
Curb Weight	Appro × 4000 kg
Payload	Appro × 325 kg
Wheelbase	3300 mm
Front/Rear Track	1506 / 1466 mm
Approach/Departure Angle	19° / 11°
Suspension	1032 / 1968 mm
Max Speed	95 km/h
Drive System	4x2
Tire Specification	7.00-16, 7 units
Number of Axles	2
Working Height	12 meters
Basket Capacity	120 kg
Basket Material	Steel or reinforced fiberglass (insulated option)
Rotation	90 degrees left and right
Control Modes	Wireless, wired, handle
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Reinforced fiberglass for insulated work basket
Steel for outrigger and support legs
Aluminium alloy for control panels and access doors
Rubber seals and gaskets for weatherproofing on doors and joints
High-strength steel for chassis and subframe

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and inspected for alignment and frame integrity
Telescopic boom and work basket are fabricated and welded to the subframe
Hydraulic system is assembled with relief valves, balance valves, and double-way locks
Control system is installed with wireless remote, wired interface, and handle controls
Electrical wiring and safety alarms are tested for proper function
Double cabin is fitted with air conditioning, USB radio, and oil brake system
Final assembly includes mounting of outriggers, front support, and safety devices
Truck is tested on the factory apron with full load and maximum extension
Photos and videos of the finished truck are sent to the buyer before balance payment

Testing

Quality Control

Every truck is 100 percent tested before delivery
Hydraulic system pressure tested and leak checked at 1.5 times working pressure
Safety devices tested under simulated failure conditions
Control system verified for automatic range limits and alarm activation
Photos and videos of the completed truck sent to the buyer before balance payment
All components comply with GB/T 19001-2016 quality management standards

Build to Order

Customization Options

Left or right hand drive chassis to match local traffic regulations
Work basket material changed from steel to reinforced fiberglass with insulation
Control mode configuration adjusted to wireless, wired, or handle only
Tank color and logo applied free of charge
Additional safety devices added on request
Custom electrical and lighting packages for night or low visibility operations
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

8 meter boom truck with 200 kg basket	Lower reach but better maneuverability in narrow urban streets
Fixed platform truck with no boom	Simpler and cheaper but cannot access overhead structures with limited ground access
Used imported aerial lift	Lower upfront cost but limited spare parts availability and no long-term technical support

Operating Notes

Use Guide

Confirm left or right hand drive configuration at order stage to match local traffic rules
Inspect outriggers and front support before each lift operation to ensure stability
Use the wireless remote only in open areas with clear line of sight to the basket
Engage the safety locks before entering or exiting the work basket
Do not exceed 120 kg load in the basket and avoid side loading
Perform daily checks on hydraulic fluid levels and safety valve function
Free operator training is available at the factory before shipment

Buyer Questions About This Truck

What is the lead time for this aerial bucket truck?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.

Can the work basket be made of fiberglass instead of steel?

Yes. The standard basket is steel and reinforced fiberglass with insulation is available on request. Tell us the working environment and we will confirm the material.

What are your payment terms?

T/T with 30 percent as deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the control system be changed to wireless only?

Yes. The standard setup includes wireless, wired, and handle modes. You can request a configuration with only wireless control if needed.
