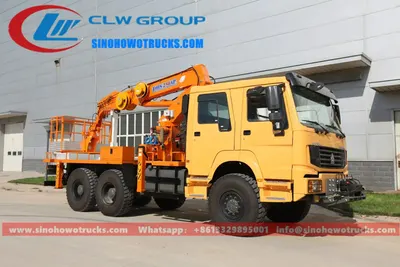

Side view of the 6x6 HOWO aerial lift truck showing outriggers deployed and working cage on the boom

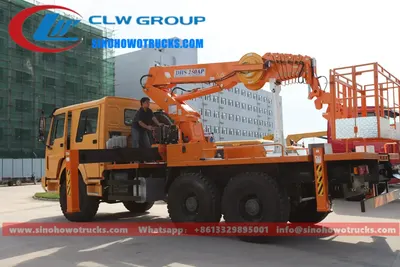

Rear view of the 6x6 HOWO manlift truck with hydraulic boom and control panel visible

6×6 Sinotruk Howo offroad 30meters truck mounted aerial platform Indonesia

Name: 6×6 Sinotruk Howo offroad 30meters truck mounted aerial platform Indonesia
Brand: Sinotruk HOWO

The 6x6 Sinotruk HOWO offroad 30 metre truck mounted aerial platform is a heavy-duty manlift truck built on a rugged 6x6 chassis for operation in remote and uneven terrain. It is designed for utility and maintenance tasks requiring access to elevated work zones where standard lifts cannot operate. The 30 metre hydraulic telescopic boom supports a working cage with 90 degree left and right rotation, enabling access to complex overhead structures. It is used by public works departments, utility contractors and infrastructure operators in countries with challenging road networks and high operational demands.

Request A Quote Email Specification

Key Benefits

30 metre hydraulic telescopic boom reaches high access points in remote or rugged terrain
6x6 chassis with dual-stage rear axles provides high traction and load capacity on unpaved and offroad surfaces
Working cage available in steel or reinforced fiberglass with insulation for electrical safety
90 degree left and right rotation allows access to tight spaces and complex structures
Four outriggers and front support improve stability during lifting operations
Sinotruk engine and gearbox deliver 371 HP with no overhaul required within 500,000 km
Wireless remote control system enables safe operation from ground level
19 years of spare parts and technical support ensure long-term availability

Buyer Profile

Who It Is for

Municipal public works departments managing street lighting and traffic control systems
Electricity and telecom utility contractors operating in remote or difficult terrain
Highway and road maintenance agencies responsible for signage and overhead infrastructure
Airport and industrial park maintenance teams requiring access to elevated structures
Government agencies equipping rural or disaster-prone regions with mobile access platforms
Private contractors bidding on infrastructure projects with challenging site conditions

Operating Problems

Problems It Solves

Lack of stable access to elevated work zones due to poor or non-existent road networks
Standard lifts that cannot operate on uneven or unpaved ground due to low ground clearance
Limited reach of smaller lifts when working on tall poles, bridges or transmission towers
Safety risks from manual climbing or unstable scaffolding in high wind or wet conditions
Long downtime due to unavailability of spare parts or technical support for imported lifts
Inadequate stability during operation caused by weak chassis or insufficient outrigger systems

Where It Works

Application Scenarios

Maintenance of overhead power lines and transformers in remote rural areas with poor road access
Installation and repair of street lights and traffic signals in mountainous or flood-prone regions
Tree trimming and pruning in dense urban parks and forested zones with limited ground clearance
Signboard installation and cleaning on bridges, tunnels and highway overpasses
Utility line inspection and repair in mining sites, quarries and industrial zones with rough terrain
Emergency access and rescue operations in areas with no fixed access infrastructure

Engineering

Technical Features

30 metre hydraulic telescopic boom with 90 degree left and right rotation
Working cage made of steel or reinforced fiberglass with insulation for electrical safety
6x6 Sinotruk HOWO chassis with 371 HP WD615.47 engine and 10 forward 2 reverse manual gearbox
Dual-stage reduction rear axles (central + hub) with 16,000 kg capacity per axle
Four outriggers and front support for enhanced stability during lifting
Power steering with hydraulic assistance for improved maneuverability
Dual circuit compressed air service brake with spring energy parking brake
Wireless remote control system available for ground-based operation
Safety devices: relief valves, balance valves, double-way hydraulic locks, motor emergency stop
Fuel tank capacity of 300 litres with one spare tyre included

Specifications

Technical Data


Chassis Model	ZZ2257M3847W (Left/Right Hand Drive Optional)
Engine	WD615.47, 371 HP, 6-cylinder in-line, water cooled, turbocharged, intercooled
Displacement	9.726 L
Gearbox	SINOTRUK HW19710, 10 forward 2 reverse, manual, with PTO
Front Axle	VGD95, 9500 kg, drum brake
Rear Axle	HC16, 2X16000 kg, double stage reduction, cast housing, ratio 5.73
Suspension	Front: 10 leaf springs with hydraulic telescopic shock absorbers, rear: 12 leaf springs with bogie spring
Steering	Power steering with hydraulic assistance
Braking System	Front and rear drum, four-circuit protection valve, dual circuit air brake, spring energy parking brake
Tires	12.00R20 (12.00R22.5, 315/80R22.5 optional), one spare tyre
Fuel Tank	300 L
Dead Weight	12020 / 8630 kg
Gross Vehicle Weight	Not specified in source
Boom Length	30 metres
Working Cage Rotation	90 degrees left and right
Cage Material	Steel or reinforced fiberglass (insulated option)
Remote Control	Wireless system available
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Reinforced fiberglass for insulated working cage
Steel for outriggers and support structures
Aluminium alloy for control panels and access doors
Rubber seals and gaskets for weatherproofing on cage and access points

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and verified against the customer's technical drawing
Boom and cage structure are fabricated from steel or fiberglass based on specification
Hydraulic system components are assembled and tested for leaks and pressure
Outriggers and support arms are welded and aligned to the chassis frame
Electrical and control systems are installed including remote control and safety valves
Cage is fitted with safety rails, foot plates, and locking mechanisms
Final assembly includes mounting the boom onto the chassis and aligning the PTO
All systems are tested under load and operation before shipment
Photos and videos of the finished truck are sent to the buyer before balance payment

Testing

Quality Control

Every unit is 100 percent tested before delivery
Hydraulic and pneumatic systems are pressure tested for leaks and safety
Boom and cage undergo load testing to verify structural integrity
Safety devices including relief valves and emergency stops are verified
Electrical circuits and remote control systems are tested in real operation
Photos and videos of the finished truck are provided before balance payment
In-house testing available for pressure vessel and structural components

Build to Order

Customization Options

Working cage material can be steel or reinforced fiberglass with insulation
Left or right hand drive chassis to match local traffic regulations
Boom length available from 8 to 45 metres, custom length specified by buyer
Cage colour and logo applied free of charge
Remote control system added on request
Safety devices selected based on operational risk profile
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

4x2 aerial platform with 18 metre boom	Lower cost and better city maneuverability but cannot operate on offroad or uneven terrain
Fixed crane with 30 metre reach	Higher lifting capacity but no mobility and requires setup time and ground preparation
Truck mounted crane with basket	Better lifting load but limited reach and rotation compared to dedicated aerial platforms

Operating Notes

Use Guide

Confirm left or right hand drive and local road regulations before ordering
Inspect all safety devices and hydraulic systems before first operation
Deploy outriggers and front support before extending the boom to full height
Do not exceed the maximum working load of the cage and boom
Use the wireless remote control only in clear line of sight and safe operating zones
Perform daily checks on tires, brakes, hydraulic fluid and safety valves
Free operator training is available at the factory before shipment

Buyer Questions About This Truck

What is the lead time for this aerial platform?

Generally 30 days after the advance payment is received. The exact time depends on chassis availability and custom options selected.

Can the chassis be right hand drive?

Yes. The chassis is available in left or right hand drive. Confirm your preference at order stage as it cannot be changed after production begins.

What is the maximum boom length available?

The standard model is 30 metres. Booms from 8 to 45 metres are available on request, depending on chassis and structural limits.

Can the cage be insulated for electrical work?

Yes. The cage can be made from reinforced fiberglass with insulation. Specify this requirement at order stage.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms are EXW, FOB, CFR, or CIF based on buyer's preference.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts for two years. We provide 19 years of spare parts and technical support, including overseas engineer visits and training.

Can the remote control system be added later?

No. The wireless remote control system must be specified at order stage. It is not available as a retrofit after delivery.
