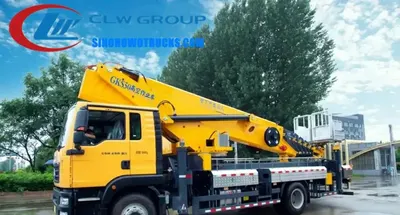

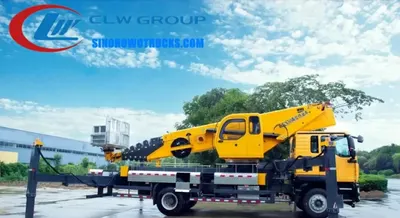

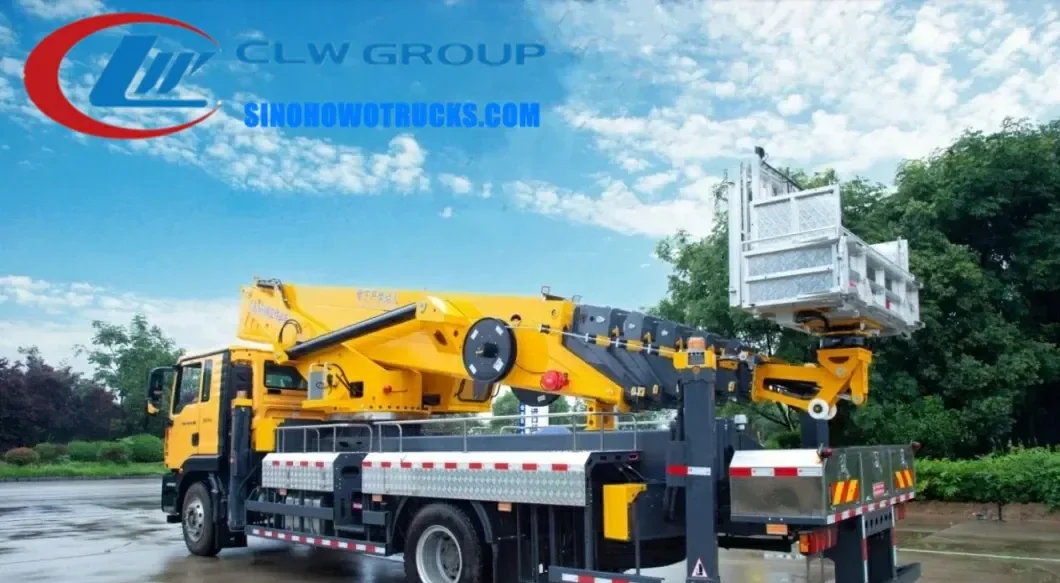

The Sinotruk HOWO 45-50 meter aerial work platform truck is a 4×2 chassis mounted manlift with a 7-section telescopic straight arm, designed for high-reach maintenance tasks in urban and industrial environments. It operates on a Cummins B6.2NS6B230 engine with 169 HP and a 6-speed manual gearbox, delivering a maximum working height of 50 meters and a 360-degree rotating turntable. The truck is built for traffic light, street light, signboard, and tree maintenance operations where access from ground level is not possible. The work basket supports up to 200 kg and can rotate 90 degrees left and right, with a mechanical self-balancing system to maintain level operation during extension.
| Chassis | Sinotruk HOWO 4×2 left or right hand drive |
|---|---|
| Engine | Cummins B6.2NS6B230, 169 HP |
| Gearbox | 6 shift manual |
| Overall Size | 8200 x 2500 x 3900 mm |
| Curb Weight | 16550 kg |
| Total Mass | 16750 kg |
| Wheelbase | 4500 mm |
| Tire Specifications | 1000R20 |
| Maximum Speed | 99 km/h |
| Emission Standard | Euro VI |
| Working Height | 45 to 50 meters |
| Arm Type | Telescopic straight arm, 7 sections |
| Turntable Rotation | 360 degrees |
| Basket Rotation | 90 degrees left and right |
| Basket Load Capacity | 200 kg |
| Outriggers | 4 hydraulic, front support included |
| Remote Control | Available |
| Lead Time | 30 days |
| Shipping Port | China main port |
| Payment | T/T |
| 30 meter boom lift with a 200 kg basket | Lower reach but better maneuverability in tight urban spaces and lower cost per meter |
|---|---|
| Mobile crane with a 40 meter boom | Higher lifting capacity but slower setup, less stable on soft ground, and not designed for personnel transport |
| Scaffold tower with a lift platform | No mobility, requires multiple setup points, and cannot reach over obstacles or across roads |
Generally 30 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.
Yes. The basket can be made from reinforced fiberglass with insulation properties. Specify this at order stage.
T/T with 30 percent as deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.
No. The remote control system must be specified at order stage. It is not available as a retrofit option after production begins.
Send us your destination port and we will quote price, lead time and freight.
