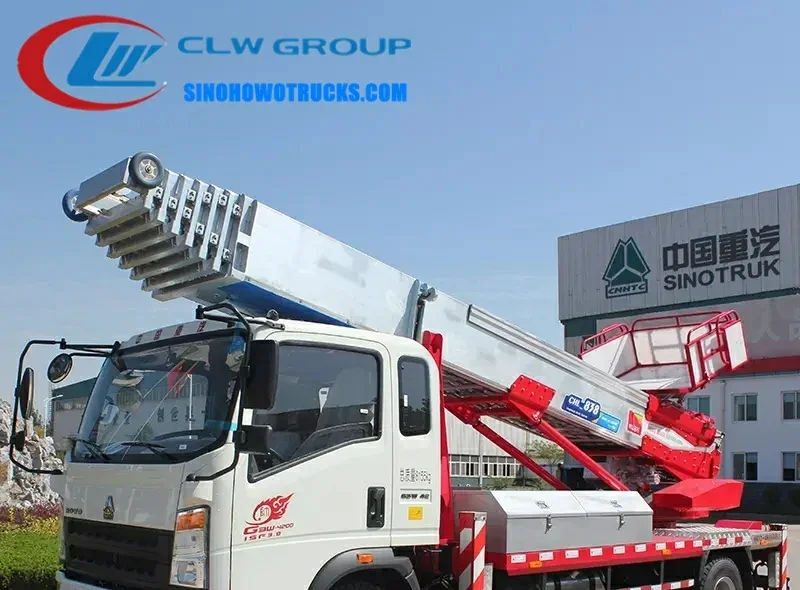

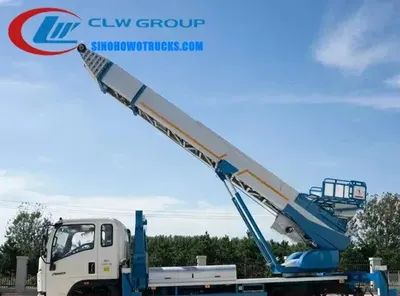

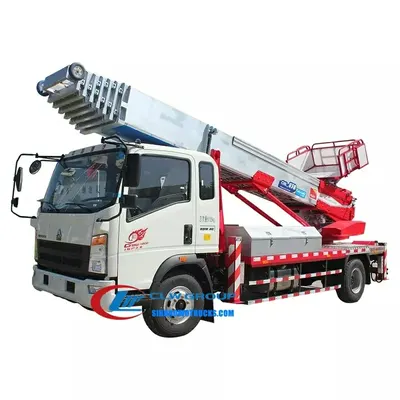

The Sinotruk HOWO 45m aerial ladder truck is a 4×2 chassis mounted hydraulic telescopic boom truck designed for high-level maintenance and emergency access in urban and remote environments. It is built for traffic signal repair, street light servicing, signboard installation, tree trimming, and other elevated work tasks where access is limited by terrain or infrastructure. The 45m maximum lifting height allows safe operation at the top of multi-storey buildings, transmission towers, and tall structures. The truck operates on a 116 HP diesel engine with a 6-speed manual gearbox and features a 400 kg platform capacity with 90-degree left and right rotation. It is supplied with three operating modes: wired, wireless remote, and handle control, enabling use in confined spaces or high-voltage zones.
| Chassis | Sinotruk HOWO 4×2 left or right hand drive |
|---|---|
| Engine | 116 HP diesel, 4 cylinders in line, turbo-charged, inter-cooling |
| Gearbox | 6 speed forward, 1 reverse, manual |
| Overall Dimensions | 5999 x 2010 x 2950 mm |
| Curb Weight | 4365 kg |
| Gross Weight | 4495 kg |
| Max Lifting Height | 45 m |
| Platform Capacity | 400 kg |
| Outrigger Type | Front H-type, rear 8-type |
| Operating Modes | Wireless, wired, handle control |
| Tire Specification | 7.00R16 steel tire, 6+1 |
| Wheelbase | 3360 mm |
| Cab Type | Flat roof, single row, air conditioned |
| Steering | Left hand drive with power-assisted |
| Radiator | Tropical climate suitable |
| Engine Displacement | 3760 ml |
| Emission Standard | Euro III |
| Lead Time | 30 days |
| Shipping Port | China main port |
| Payment | T/T |
| 20m aerial platform on a 4×2 chassis | Lower reach but more maneuverable in narrow city streets and tighter access points |
|---|---|
| Truck-mounted crane with a 30m boom | Better for lifting heavy loads but not designed for worker access or safe platform operation |
| Fixed tower crane at a worksite | Higher capacity and longer service life but not mobile and requires site setup and permits |
Generally 30 days after the advance payment is received. The exact date depends on chassis availability and the selected boom length.
Yes. The platform cage can be made from reinforced fiberglass to provide insulation. Specify this at order stage.
T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis is available in left or right hand drive to match local traffic regulations. Confirm this at order stage as it cannot be changed later.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts for two years. We provide 15 years of spare parts and technical support.
Yes. The boom length is available from 8m to 45m. Specify your required height and we will build to your exact specification.
Send us your destination port and we will quote price, lead time and freight.
