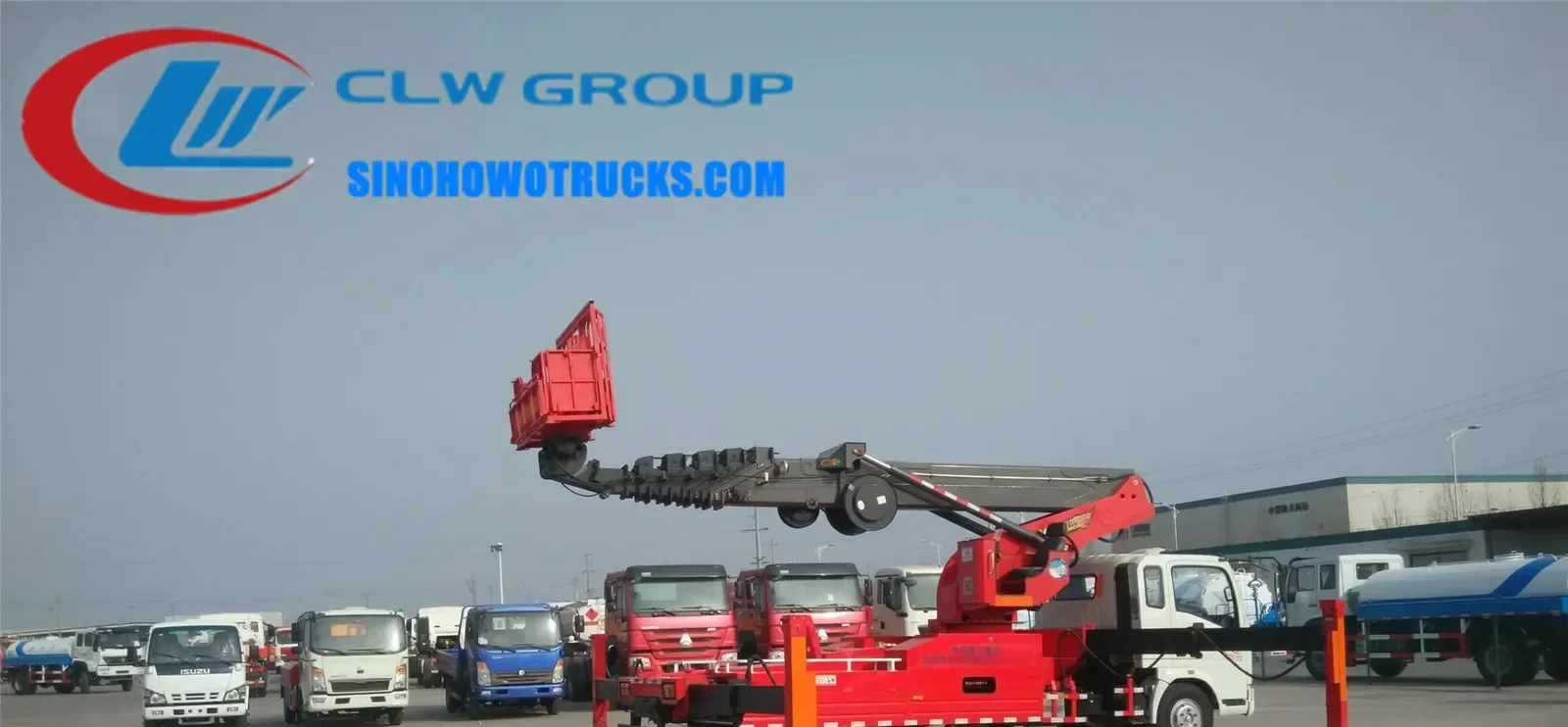

The Sinotruk HOWO 32 metre aerial lift truck is a 4x2 truck-mounted platform designed for high-level maintenance and installation work on traffic signals, street lighting, signage, and tree care. Built on a CHAOCHAI 120 HP diesel engine and equipped with a four-section telescopic boom, it reaches 32 metres with a 200 kg rated load in the basket. The platform rotates 360 degrees continuously and features hydraulic outriggers for stability during operation. It is used by municipal utilities, infrastructure contractors, and public works departments in regions with limited access to fixed cranes or aerial platforms.
| Chassis | Sinotruk HOWO 4x2 left or right hand drive |
|---|---|
| Engine | CHAOCHAI CY4102BZLQ, 120 HP, diesel, turbocharged inter-cooling |
| Gearbox | WLY6T46, 6-speed manual |
| Overall Size | 8350 x 1980 x 3100 mm |
| GVW | Approx. 10450 kg |
| Operating Mass | Approx. 8500 kg |
| Wheelbase | 3360 mm |
| Tire | 8.25R16 |
| Max Speed | 95 km/h |
| Working Height | 32 m |
| Max Working Radius | 8 m |
| Boom Type | Four sections telescopic |
| Rated Load in Bucket | 200 kg |
| Bucket Size | 1300 x 1000 x 1000 mm |
| Rotation Speed | 0-2 r/min |
| Rotation Angle | 360° continuously |
| Outrigger Span Horizontal | Approx. 3500 mm |
| Outrigger Span Longitudinal | Approx. 4000 mm |
| Boom Control Mode | Bucket control and manual operation |
| Supporting Legs | Four hydraulic legs with manual operation |
| Braking System | Air brake with spring energy parking brake |
| Electrical System | 24V |
| Emission Standard | Europe II |
| Lead Time | 30 days |
| Shipping Port | China main port |
| Payment | T/T |
| 8 metre boom truck | Lower reach but better maneuverability in tight urban spaces |
|---|---|
| Fixed crane on a trailer | Higher mobility and faster deployment but less reach and load capacity |
| Ladder truck with fixed platform | Less flexibility in positioning and rotation but simpler operation and lower cost |
Generally 30 days after the advance payment is received. The exact time depends on chassis availability and customization level.
Yes. The basket can be made of reinforced fiberglass with insulation for electrical safety. Specify this at order stage.
T/T with 30 percent deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before the balance payment.
Yes. The chassis is ordered in left or right hand drive to match local traffic rules. Confirm this at order stage as it cannot be changed later.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts for two years. We provide 15 years of spare parts and technical support.
Yes. The standard boom is 32 metres, but models from 8 to 45 metres are available. Specify your required height at order stage.
Send us your destination port and we will quote price, lead time and freight.
