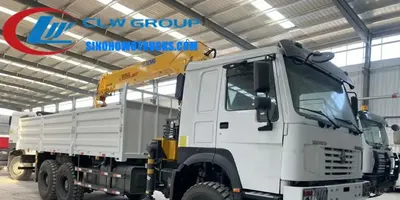

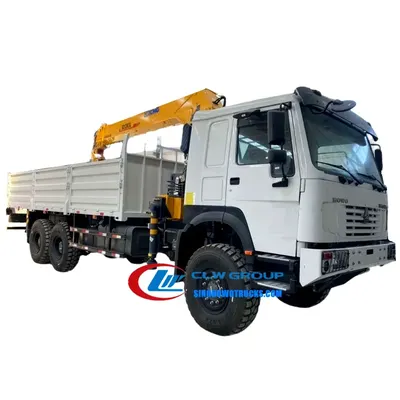

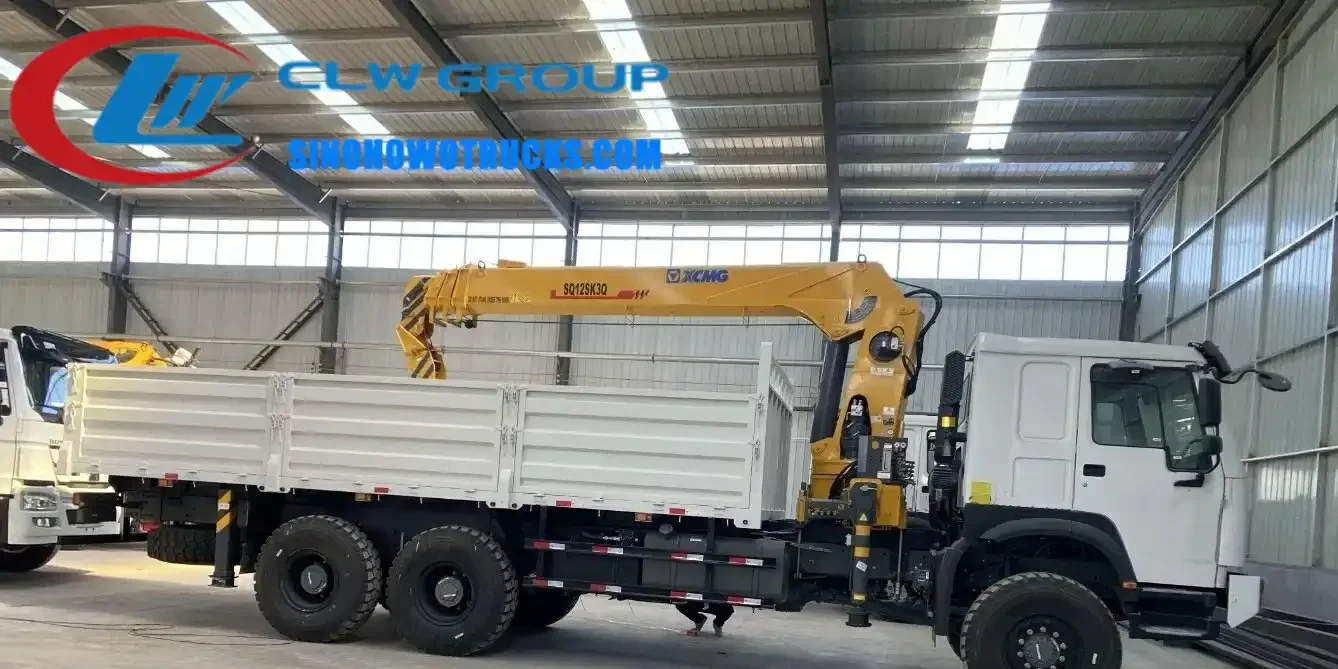

The Sinotruk HOWO 6x6 all wheel drive 10 ton crane truck is a heavy-duty truck mounted crane built on a 6x6 HOWO chassis with a 371 HP diesel engine and 10 speed manual gearbox. It is designed for construction sites, infrastructure projects, and logistics operations in rugged terrain where a mobile crane must be self-contained and capable of moving between locations without external transport. The crane can lift up to 10 tons and features a 360 degree slewing range with telescopic or knuckle boom options, allowing it to load and unload freight independently without requiring a separate crane. It is supplied to contractors, utility companies, and government agencies in remote or underdeveloped regions where access roads are poor and crane availability is limited.
| Chassis | Sinotruk HOWO 6x6 all wheel drive |
|---|---|
| Engine | 371 HP diesel |
| Gearbox | 10 speed manual |
| Driving Type | 6x6 RHD/LHD |
| Overall Size | 11200 x 2500 x 3900 mm |
| Carriage Size | 6980 x 2300 x 600 mm |
| Wheelbase | 5225 + 1350 mm |
| Wheel Track | 2022 mm (front) / 1830 mm (rear) |
| Tare Weight | 11400 kg |
| Payload | 35000 kg |
| Front Axle Capacity | 1 x 9000 kg |
| Rear Axle Capacity | 1 x 9000 kg |
| Crane Capacity | 10 tons |
| Crane Type | Telescopic or knuckle boom (optional) |
| Lifting Mechanism | Integral winch with single cylinder synchronization |
| Slewing Range | 360 degrees |
| Operator Controls | Top seat control or radio remote (optional) |
| Cabin Features | Air conditioning, one bed, 70° hydraulically tiltable |
| Lead Time | 20 days |
| Shipping Port | China main port |
| Payment | T/T |
| 6x4 crane truck with 8 ton capacity | Lower lifting capacity and less traction on rough terrain but easier to handle in urban areas |
|---|---|
| Mobile crane with separate transport vehicle | Higher cost and longer setup time but better reach and lifting height for large projects |
| Truck with fixed crane attachment | Less flexible in boom positioning and limited slewing range compared to a full rotating crane |
Generally 20 days after the advance payment is received. The exact date depends on crane type and chassis availability.
Yes. Both telescopic and knuckle boom options are available. Specify your preference at order stage.
T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis is available in left or right hand drive to match local traffic regulations. Confirm at order stage.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts for two years. Overseas engineers make regular return visits and provide technical training before delivery.
Yes. Radio remote control is available as an optional fitment. Top seat control is also available for operator convenience.
Send us your destination port and we will quote price, lead time and freight.
