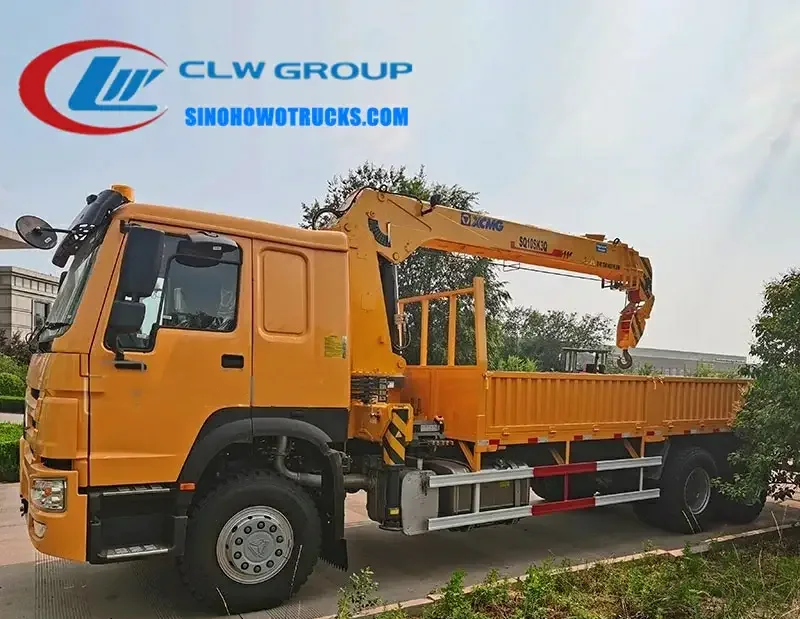

The 10 wheel Sinotruk HOWO 10 tons crane truck is a 6x4 heavy-duty truck mounted crane built on a ZZ1257N5847W chassis with a 336 HP diesel engine and 10 speed manual gearbox. It is designed for construction sites, industrial maintenance, and logistics operations where a self-loading crane is needed without relying on external lifting equipment. The crane has a maximum lifting capacity of 10,000 kg and a maximum lifting moment of 25 T.M, enabling it to handle heavy loads in tight or remote work zones. The truck is exported to Algeria and other markets with full compliance to international transport and safety standards.
| Chassis | Sinotruk HOWO 6x4 left or right hand drive |
|---|---|
| Chassis Model | ZZ1257N5847W |
| Engine | WD615.69, 336 HP diesel |
| Transmission | HW19710, 10 speed manual |
| Front Axle | HF9 |
| Rear Axle | HC16 |
| Tires | 12.00R20 |
| Cabin | HW76 one sleeper with air-condition |
| Crane Model | SQ10SK3Q |
| Max Lifting Capacity | 10,000 kg |
| Max Lifting Moment | 25 T.M |
| Recommended Crane Power | 30 kW |
| Max Hydraulic Flow | 63 L/min |
| Max Hydraulic Pressure | 26 MPa |
| Oil Tank Capacity | 160 L |
| Crane Type | Telescopic or knuckle boom (optional) |
| Control Option | Radio remote control or top seat control (optional) |
| Truck Size | 10000 x 2500 x 3800 mm |
| Lead Time | 20 days |
| Shipping Port | China main port |
| Payment | T/T |
| Mobile crane with separate transport vehicle | Higher cost and longer setup time, but greater lifting capacity and reach |
|---|---|
| 5 ton truck mounted crane | Lower lifting capacity but better maneuverability in tight urban areas |
| Used crane truck from Europe | Higher initial cost but lower maintenance and longer service life, though parts availability may be limited |
Generally 20 days after the advance payment is received. The exact date depends on crane type and component availability.
Yes. The crane can be supplied as either telescopic or knuckle boom. Specify your preference at order stage.
T/T with 30 percent deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before the balance is paid.
Yes. The chassis is ordered in left or right hand drive to match local regulations. Confirm this at order stage as it cannot be changed later.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts for two years. Overseas engineers provide technical training and manuals before delivery.
Yes. Radio remote control and top seat control are optional. Specify your choice when placing the order.
Send us your destination port and we will quote price, lead time and freight.
