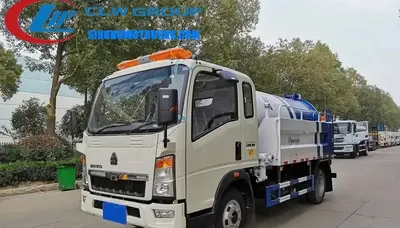

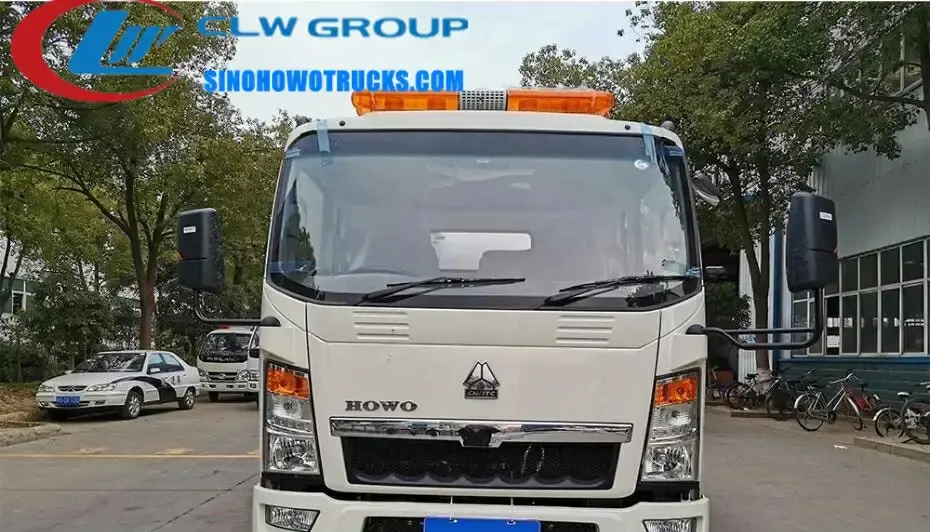

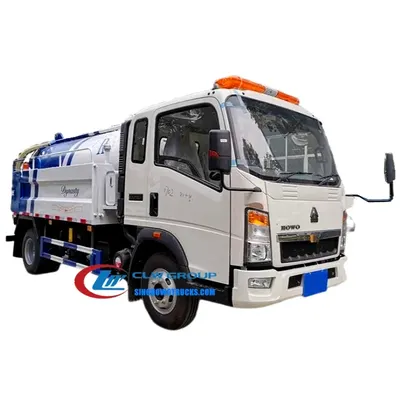

The Sinotruk HOWO 6 ton jet vac truck is a 5 cubic metre combined sewer cleaning vehicle built on a 4x2 chassis, designed for municipal sanitation departments and waste contractors that need to clear blockages in sewage pipelines using high-pressure jetting and then remove debris and sludge via powerful vacuum suction. It operates in urban and rural environments where sewer lines are obstructed by grease, solids, or root intrusion, and must be serviced without disrupting traffic or requiring multiple vehicles. The truck handles both jetting and vacuum functions in a single unit, reducing response time and operational complexity.
| Chassis | Sinotruk HOWO 4x2 |
|---|---|
| GVW | 7300 kg |
| Mass in Working Order | 4000 kg |
| Overall Dimensions | 6800 x 2300 x 2700 mm |
| Tank Capacity | 5 cbm |
| Tank Material | 5mm high quality carbon steel |
| Tank Structure | Welded, cylindrical, vacuum tank |
| Vacuum Pump Type | Vacuum pump, 45 L/s flux |
| Vacuum Pump Speed | 500–800 r/min |
| Vacuum Pump Power | 4 kW |
| Suction Time | ≤ 5 minutes |
| Effective Suction Range | ≥ 8 metres |
| Max Vacuum Degree | ≤ 15 Kpa |
| Dump Angle | ≥ 45 degrees |
| High Pressure Pump Brand | Tianjin Tongjie standard, Germany Pinfu optional |
| Vacuum Pump Brand | Veyron standard, Shandong water ring pump optional |
| Production Time | 20 days |
| Delivery Time | Based on shipping mode |
| Truck Size | 6900 x 2300 x 2800 mm |
| Drive Method | Chassis driven |
| Separate jetting and vacuum trucks | Higher total cost and longer deployment time, but better specialization for high-volume operations |
|---|---|
| Smaller 3 cbm jet vac truck | Less capacity and more frequent refills, but better maneuverability in narrow streets |
| Used imported jet vac truck | Higher risk of breakdowns and parts unavailability, but lower initial cost |
Production time is 20 days. Delivery time depends on the shipping mode chosen.
Yes. The standard tank is 5mm carbon steel. Stainless steel is available as an optional upgrade.
T/T with 30 percent deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before the balance is paid.
Yes. The standard pump is Tianjin Tongjie. Germany Pinfu is available as an optional upgrade.
By Ro-ro or bulk ship from a China main port. Trade terms are EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year. Core parts are guaranteed for two years. We provide 15 years of spare parts and technical support.
Yes. We produce to customer supplied technical drawings and specifications. All customization is free of charge.
Send us your destination port and we will quote price, lead time and freight.
