Home/ All Trucks/ Sinotruk Sewer Jetting Truck/SINOTRUK HOWO 10tons truck mounted jetter Benin

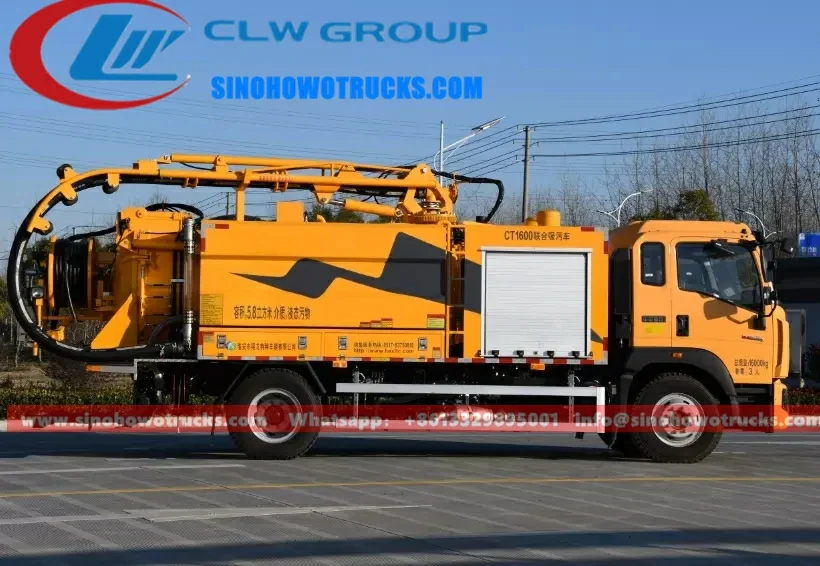

Sinotruk HOWO 10 tons truck mounted jetter with 6000L sludge tank and 4000L water tank in urban sewer cleaning operation

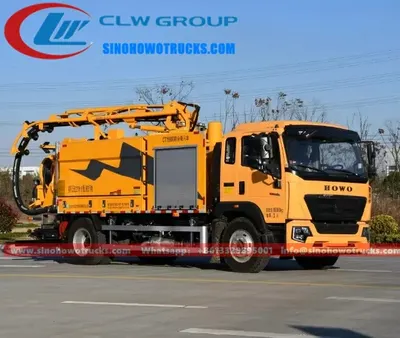

Rear view of the HOWO jetter showing full opening hydraulic lid and sight glasses on the tank

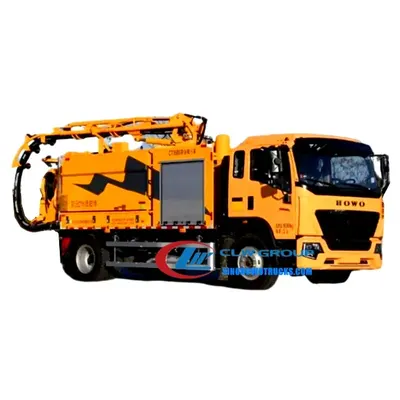

Side view of the truck mounted jetter with high-pressure hose reel and vacuum suction pipe

SINOTRUK HOWO 10tons truck mounted jetter Benin

Name: SINOTRUK HOWO 10tons truck mounted jetter Benin
Brand: Sinotruk HOWO

The Sinotruk HOWO 10 tons truck mounted jetter is a combined vacuum and high-pressure jetting vehicle designed for clearing blockages in sewage and drainage systems. It operates on a 4x4 or 6x4 chassis with a 25000 kg gross vehicle weight and carries a 6000 litre sludge tank and a 4000 litre fresh water tank. The system uses a high-pressure pump to jet through blockages and a vacuum pump to extract sludge and water, making it suitable for municipal sanitation departments and infrastructure maintenance teams in regions with limited access to centralized sewer cleaning services.

Request A Quote Email Specification

Key Benefits

6000 L sludge tank and 4000 L fresh water tank allow for extended operation without refilling
High-pressure jetting at 16-24 MPa clears tough blockages in large diameter pipes
Vacuum suction of -0.3 MPa removes sludge and water efficiently from deep manholes
Front tipping tank with double acting cylinder enables fast and safe discharge
Hydraulically operated full opening rear lid allows full access for cleaning and inspection
Sandwich PTO driven by chassis engine ensures reliable power transfer without engine modification

Buyer Profile

Who It Is for

Municipal sanitation and public works departments in developing countries
Private waste and drainage contractors operating in low infrastructure areas
Industrial facility maintenance teams managing on-site wastewater systems
Contractors supplying turnkey drainage cleaning services to government agencies
Water and sanitation utilities in Africa and Southeast Asia with limited access to fixed cleaning equipment

Operating Problems

Problems It Solves

Sewer blockages caused by grease, debris, and tree roots that prevent flow in aging pipelines
Lack of access to fixed cleaning infrastructure in remote or low-density urban areas
Frequent need to refill water and empty sludge tanks during long cleaning operations
Inadequate suction power in low vacuum trucks that leave residual sludge behind
High downtime due to breakdowns of imported equipment with limited local support
Inflexible equipment that cannot be adapted to local pipe sizes and access conditions

Where It Works

Application Scenarios

Municipal sanitation departments managing aging sewer networks in urban and rural areas
Industrial parks with on-site drainage systems requiring regular cleaning and blockage clearance
Ports and container yards with stormwater and waste drainage lines prone to debris buildup
Remote communities without centralized sewage treatment that rely on truck-based cleaning
Contractors maintaining stormwater and drainage infrastructure for road and construction projects
Emergency response teams clearing blocked sewers after heavy rainfall or flooding events

Engineering

Technical Features

High-pressure pump with 16-24 MPa operating pressure for deep pipe jetting
Vacuum pump capable of -0.3 MPa suction to remove sludge and water from manholes
Dredge flow rate between 75 and 275 litres per minute for efficient clearing
Exhaust flow of 6-35 cubic meters per minute for rapid sludge removal
80 metre standard high-pressure hose with optional 40 metre extension
8 metre standard sewage hose with additional length available
3 sight glasses mounted at rear of tank for real-time sludge level monitoring
Over pressure relief valve installed on tank top to prevent over pressurization
SS float ball primary shut off prevents overfilling of sludge tank
Pneumatic and manual operation of inlet and outlet valves for flexible control

Specifications

Technical Data


Chassis	Dongfeng, Sinotruk, Isuzu
GVW	25000 kg
Payload	6570 kg
Overall Size	9800 x 2496 x 3780 mm
Tank Material	Mild steel
Tank Shell Thickness	5 mm
High Pressure Pump	Tianjin Tongjie standard, Germany Pinfu optional
Vacuum Pump	Veyron standard, Shandong water ring pump optional
Drive Method	Chassis engine + sandwich power take-off
PTO Power	Weichai 340-420 HP
Jetting Pressure	16-24 MPa
Suction Pressure	-0.3 MPa
Jetting Flow	75-275 L/min
Exhaust Flow	6-35 m³/min
High Pressure Hose Length	80 m standard, +40 m optional
Sewage Hose Length	8 m standard
Production Time	20 days
Lead Time	7 to 30 days after deposit

Build Materials

Materials

Mild steel tank shell with 5 mm thickness for durability and corrosion resistance
Stainless steel float ball for sludge tank overfill protection
Aluminium alloy components on pump and valve assemblies for reduced weight
Rubber seals and gaskets on tank lids and valves for leak prevention
High-pressure hoses with reinforced lining for repeated use under high stress

How It Is Built

Manufacturing Process

Chassis is received from Dongfeng, Sinotruk, or Isuzu and verified against the tank layout drawing
Tank shell is cut, formed, and welded with internal stiffeners to prevent deformation
Tank is pressure tested and leak tested before welding of external components
High-pressure pump and vacuum pump are mounted and connected via sandwich PTO
Hoses, nozzles, valves, and sight glasses are installed and tested for function
Tank is hydraulically tipped and tested for safety and stability during discharge
Full system is tested on the factory apron with water and vacuum flow checks
Final inspection includes verification of all safety devices and control functions

Testing

Quality Control

Every truck undergoes 100 percent testing before delivery
Tank pressure and leak tests conducted in-house to GB39.5 standards
High-pressure and vacuum systems tested under full operating conditions
Photos and videos of the finished truck sent to buyer before balance payment
All safety valves and shut-off devices verified for correct operation

Build to Order

Customization Options

Tank capacity can be adjusted between 3000 L and 30000 L based on customer needs
Chassis can be selected from Dongfeng, Sinotruk, or Isuzu in 4x4, 4x2, 6x4, or 6x6 configurations
High-pressure pump brand can be changed from Tianjin Tongjie to Germany Pinfu
Vacuum pump can be upgraded from Veyron to Shandong water ring pump
Tank colour and logo applied free of charge to match municipal or contractor livery
Production and delivery schedule adjusted based on shipping mode and chassis availability

Comparison

How It Compares With the Alternatives

Standard vacuum truck without jetting capability	Cannot clear hard blockages, requires manual intervention or multiple passes
Small 5000 L jetting truck	Limited capacity means more frequent refills and shorter work cycles
Fixed sewer cleaning station	No mobility, not suitable for remote or temporary access points

Operating Notes

Use Guide

Confirm chassis type and drive configuration before order to match local road and registration rules
Fill fresh water tank only through the designated inlet to avoid contamination
Use the SS float ball to prevent overfilling the sludge tank during suction
Engage the sandwich PTO before starting jetting or vacuum operations
Inspect hoses and nozzles before each use for wear or blockage
Drain and flush the system after use in freezing conditions to prevent damage

Buyer Questions About This Truck

What is the lead time for this truck?

Production time is 20 days. Delivery time varies from 7 to 30 days depending on chassis availability and shipping mode.

Can the tank size be changed?

Yes. Tank capacity can be customized from 3000 L to 30000 L based on your operational needs.

What chassis options are available?

Dongfeng, Sinotruk, or Isuzu in 4x4, 4x2, 6x4, or 6x6 configurations.

Can the high-pressure pump be upgraded?

Yes. The standard is Tianjin Tongjie; Germany Pinfu is available as an option.

What payment terms do you offer?

T/T with 30 percent deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before the balance payment.

Do you provide technical support?

Yes. 15 years of spare parts and technical support are guaranteed for all models.

Can the truck be painted in a specific colour?

Yes. Tank colour and logo are customized free of charge to match your branding.
