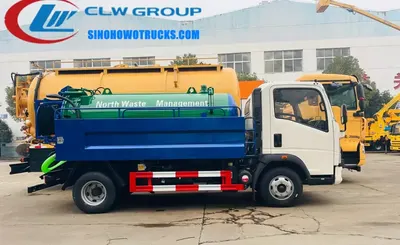

Side view of the HOWO sewer jetting truck showing the high-pressure hose reel and suction inlet

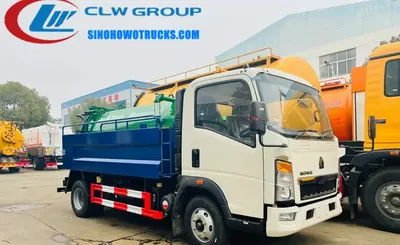

Rear view of the truck with the rear cap open and oil cylinders visible for dumping

SINOTRUK HOWO 5000Liters small sewer jetting truck Myanmar

Name: SINOTRUK HOWO 5000Liters small sewer jetting truck Myanmar
Brand: Sinotruk HOWO

The Sinotruk HOWO 5000 litre small sewer jetting truck is a 4x2 vehicle built on a Sinotruk HOWO chassis for municipal sanitation and drainage contractors in markets such as Myanmar. It combines high-pressure jetting and vacuum suction to clear blockages in sewer lines, manholes, and drainage systems. The truck is designed for urban and rural environments where access is limited and infrastructure is aging. It handles both solid waste and sludge with a 3 cubic metre tank and delivers reliable performance in high-demand conditions.

Request A Quote Email Specification

Key Benefits

3 cubic metre tank capacity handles large volumes of sludge and debris in a single trip
High-pressure jetting at 16 to 24 MPa clears stubborn blockages in pipelines
Vacuum suction with >500 mmHg vacuum and >6 metre lift removes sludge from deep manholes
Full suction completed in under 5 minutes, reducing downtime between jobs
4x2 chassis provides good maneuverability in narrow city streets and unpaved access roads
Sandwich PTO drives both the vacuum pump and high-pressure pump from the chassis engine

Buyer Profile

Who It Is for

Municipal sanitation and public works departments in developing countries
Private drainage and sewer maintenance contractors
Construction and infrastructure project managers
Industrial park and factory site maintenance teams
Government agencies managing rural sanitation programs
Waste and water service providers in regions with limited sewer access

Operating Problems

Problems It Solves

Blockages in narrow or deep sewer lines that cannot be cleared by hand or small tools
Long wait times for central treatment plants due to lack of transport infrastructure
Inadequate suction power in low-capacity vacuum trucks that require multiple trips
High maintenance costs from unreliable pumps and outdated drive systems
Lack of high-pressure jetting capability in standard vacuum trucks
Difficulty in accessing tight urban spaces with large, rigid vehicles

Where It Works

Application Scenarios

Municipal sanitation departments clearing blockages in aging sewer networks in urban and peri-urban areas
Rural drainage contractors maintaining open channels and septic systems in remote locations
Construction sites managing temporary sewage during excavation and foundation work
Industrial zones with on-site drainage systems requiring regular cleaning to prevent overflow
Emergency response teams clearing blocked storm drains during heavy rainfall events
Waste management contractors operating in low infrastructure areas with no central treatment

Engineering

Technical Features

High-pressure pump delivers 16–24 MPa jetting pressure for pipeline cleaning
Vacuum pump achieves >500 mmHg vacuum and >6 metre suction lift
Full tank suction completed in less than 5 minutes under standard conditions
Sandwich PTO drives both vacuum and jetting systems from the chassis engine
Tank capacity of 3 cubic metres with internal baffles to reduce surge
Pressure meter, liquid level window, and alarm for full suction included as standard
Four-way valve and moisture separator prevent water from entering the vacuum system
Oil cylinders for rear cap and dumping operation ensure safe and controlled discharge

Specifications

Technical Data


Chassis	Sinotruk HOWO 4x2
Engine	Yunnei, 116 HP, 3856 ml, diesel, Euro3
Tank Capacity	3 m³
Overall Dimensions	6000 x 2100 x 2600 mm
GVW	7300 kg
Dry Weight	4000 kg
Vacuum Pump Speed	800–1400 r/min
Max Suction Lift	>6 m
Vacuum Level	>500 mmHg
Suction Time	<5 min
Jetting Pressure	16–24 MPa
Jetting Flow	75–275 L/min
Drive Method	Chassis engine + sandwich PTO
Pump Brand	Tianjin Tongjie standard, Germany Pinfu optional
Vacuum Pump Brand	Veyron standard, Shandong water ring pump optional
Production Time	20 days
Lead Time	30 days after advance payment
Shipping Port	China main port

Build Materials

Materials

Aluminium alloy components on the pump room and access panels
Stainless steel fittings on high-pressure hoses and nozzles
Rubber seals and gaskets on the rear cap and valves for leak prevention

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and inspected for frame alignment and wheelbase
Tank is cut, rolled, and welded with internal clapboards to reduce liquid surge
Tank is pressure tested and leak tested before welding is complete
High-pressure pump and vacuum pump are mounted and aligned to the sandwich PTO
Piping, valves, hoses, and nozzles are installed and tested for leaks
Rear cap, oil cylinders, and dumping mechanism are assembled and tested
Pump room is sealed and painted with anti-corrosion coating
Final system test includes vacuum pull, jetting pressure, and full suction cycle

Testing

Quality Control

Every truck is 100 percent tested before delivery
Photos and videos of the finished truck are sent before the balance payment
Vacuum and pressure systems tested under full load conditions
All welds inspected using non-destructive testing methods
Pump and PTO drive systems tested for alignment and noise levels
Compliance with GB7965 for sewage and drainage vehicles

Build to Order

Customization Options

Tank capacity from 3000L to 30000L available to match local demand
Tank material can be changed from carbon steel to stainless steel on request
Left or right hand drive chassis available to match local traffic rules
Tank colour and logo applied free of charge
High-pressure pump brand can be upgraded to Germany Pinfu
Vacuum pump brand can be changed to Shandong water ring pump
Optional sprinkler and full suction alarm can be added

Comparison

How It Compares With the Alternatives

3000L vacuum truck with no jetting	Lower cost and lighter but cannot clear blockages, only removes sludge
6x4 large jetting truck	Higher capacity and power but less maneuverable in narrow streets
Used imported truck	Higher long-term cost and parts availability issues, no local support

Operating Notes

Use Guide

Confirm chassis drive configuration and hand of drive before ordering
Use only the designated inlet and outlet ports to avoid damage to the pump system
Prime the vacuum system before suction to ensure full vacuum is achieved
Do not exceed 24 MPa jetting pressure to avoid hose and nozzle damage
Drain and flush the system after each use to prevent clogging and corrosion
Schedule maintenance every 5000 km or 6 months, whichever comes first

Buyer Questions About This Truck

What is the lead time for this truck?

Production takes 20 days. The total lead time is generally 30 days after the advance payment is received.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before the balance payment.

Do you supply right hand drive?

Yes. The chassis can be ordered in left or right hand drive to match local traffic rules. Confirm this at order stage.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms are EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year. Core parts are guaranteed for two years. Overseas engineers provide technical training and manuals before delivery.

Can the pump brands be changed?

Yes. The standard high-pressure pump is Tianjin Tongjie. Germany Pinfu is available as an option. The vacuum pump can be Shandong water ring pump.
