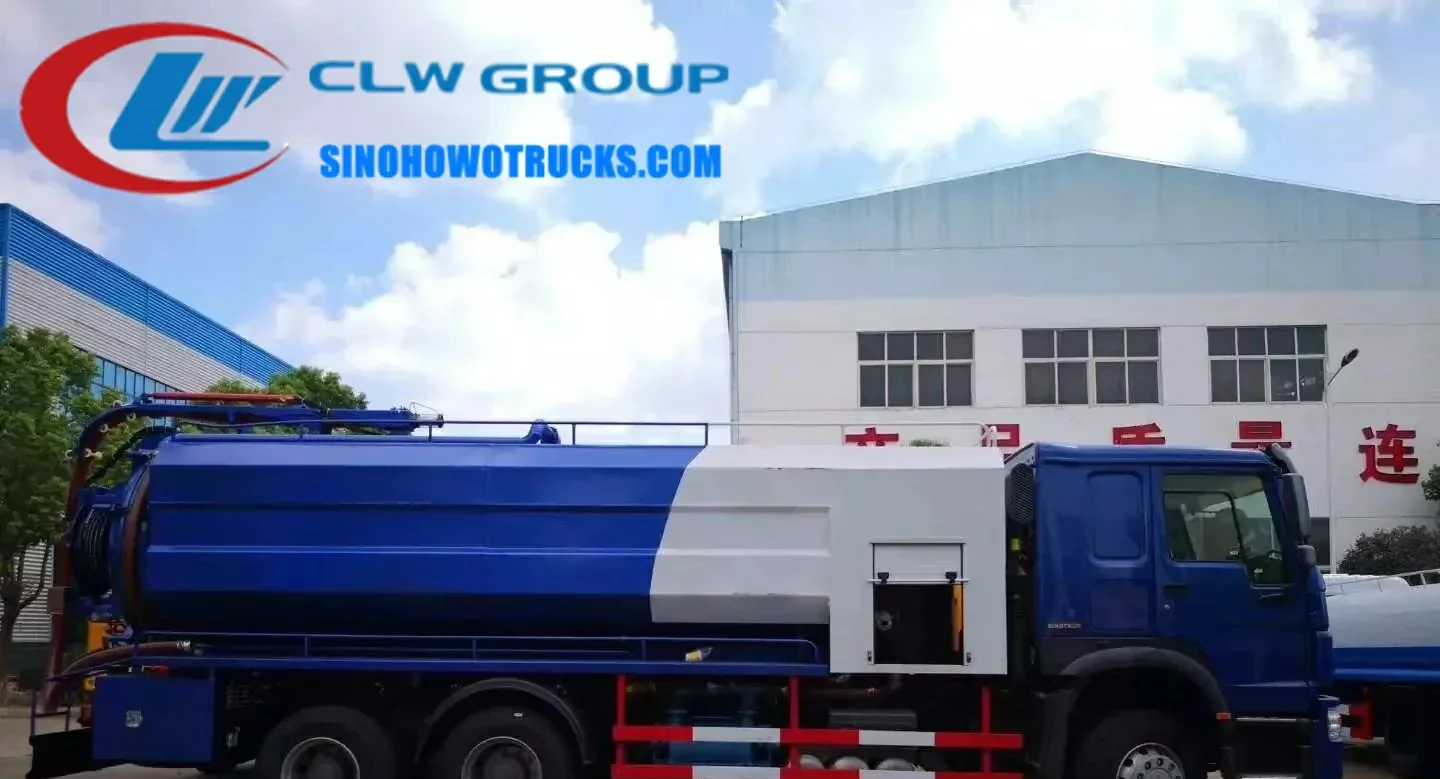

The 10 wheel Sinotruk HOWO 20 tons combination sewer cleaning truck is a dual-function vehicle designed for clearing blockages in sewage pipelines using high-pressure jetting and removing sludge and wastewater via powerful vacuum suction. Built on a robust HOWO chassis, it carries a 16,000 litre sludge tank and a 4,000 litre water tank, enabling on-site cleaning without reliance on external water sources or frequent refills. This truck is used by municipal sanitation departments and waste contractors in regions with limited infrastructure, where pipeline blockages are frequent and access roads are unpaved or uneven.
| Chassis | Sinotruk HOWO 10 wheel 20 tons |
|---|---|
| Gearbox | 10 speed manual |
| Overall Size | 10500 x 2500 x 3400 mm |
| Tank Material | Mild steel |
| Shell Thickness | 6 mm |
| Dish End Thickness | 6 mm |
| Working Pressure | -0.9 bar underpressure |
| Vacuum Pump | Liquid ring vacuum pump, PTO driven |
| Tank Inner Filter | Separates solids from liquid |
| Tipping Cylinder | Italy PENTA brand, front mounted, single-acting |
| Liquid Level Indicator | Mounted at rear of tank |
| Overpressure Safety | Relief valve on tank top |
| Rear Lid | Full opening, hydraulically operated and locked |
| Outlet Valve | One 150mm ball valve, manual operation |
| Anti Over-flow | SS float ball and ultrasonic level indicator |
| Reverse Discharge | Pressure switch system enables negative pressure discharge |
| Production Time | 20 days |
| Lead Time | 20 days after advance payment |
| Shipping Port | China main port |
| 6x4 combination sewer truck with 8,000L tank | Lower capacity and shorter range but better for narrow urban streets and tight turns |
|---|---|
| Dedicated vacuum truck | No jetting capability but better for long-distance sludge transport and dry vacuum jobs |
| Dedicated jetting truck | No vacuum system but better for high-pressure cleaning in large diameter pipes |
Production time is 20 days after the advance payment is received. Delivery time depends on shipping mode and port availability.
Yes. The standard is 16,000L sludge and 4,000L water. Capacities from 3,000L to 30,000L are available upon request.
T/T with 30 percent deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before the balance is paid.
Yes. Mild steel is standard. Stainless steel can be supplied on request. Specify water quality and storage duration for confirmation.
Yes. The chassis can be ordered in left or right hand drive to match local traffic regulations. Confirm at order stage.
By Ro-ro or bulk ship from a China main port. Trade terms are EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year. Core parts are guaranteed for two years. 15 years of spare parts and technical support are available.
Send us your destination port and we will quote price, lead time and freight.
