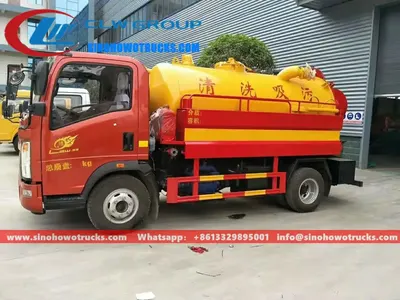

The HOWO 5 ton jet vac tanker is a 4x2 chassis mounted sewer cleaning vehicle designed for clearing blockages in municipal and industrial drainage systems using high-pressure jetting and powerful vacuum suction. It is built for operations in urban and rural environments where sewer lines are obstructed by grease, sludge, or solid debris. The truck combines a 4,000 litre cylindrical vacuum tank with a 45 L/s vacuum pump and a high-pressure jetting system to clear pipelines and extract waste in a single pass. It is used by sanitation departments, construction firms, and municipal contractors in the Philippines and other export markets for routine maintenance and emergency blockage clearance.
| Chassis | Sinotruk HOWO 4x2 |
|---|---|
| GVW | 7300 kg |
| Mass in Working Order | 4000 kg |
| Tank Capacity | 4000 L |
| Tank Material | 5mm high-quality carbon steel |
| Tank Structure | Cylindrical, welded vacuum tank |
| Vacuum Pump Flux | 45 L/s |
| Vacuum Pump Speed | 500–800 r/min |
| Vacuum Pump Power | 4 kW |
| Max Vacuum Degree | 15 KPa |
| Suction Time | ≤ 5 minutes |
| Effective Suction Range | ≥ 8 meters |

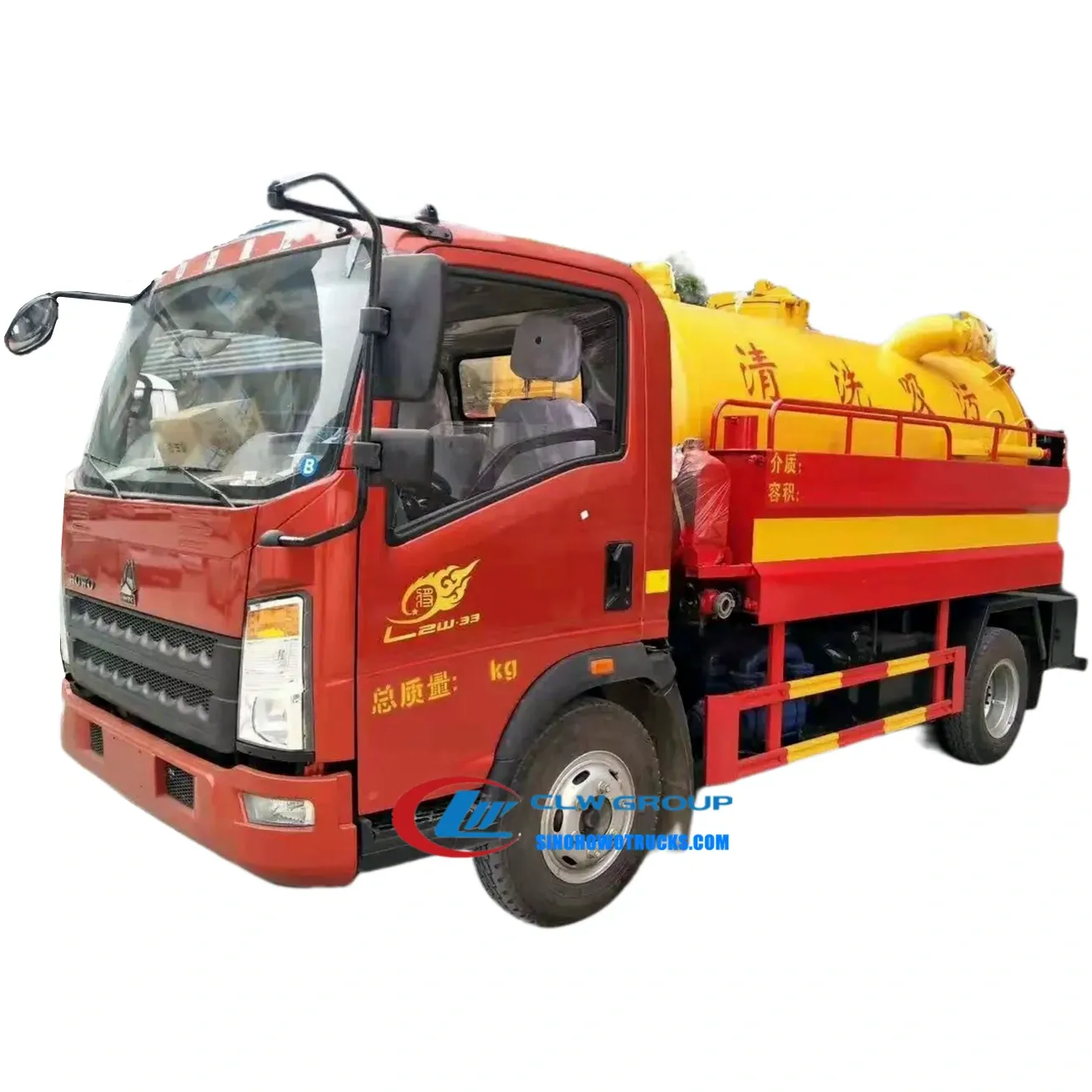

| Tank Lift Angle | 40–45 degrees hydraulically operated |

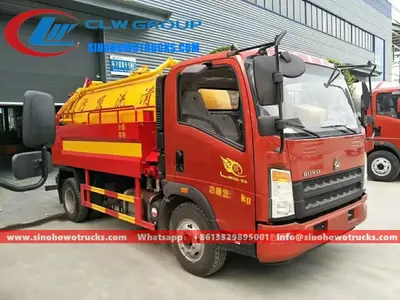

| Rear Door Operation | Hydraulically operated |
| Suction Pipe Length | 5 meters |
| High-Pressure Pump Brand | Tianjin Tongjie standard, Germany Pinfu optional |
| Vacuum Pump Brand | Veyron standard, Shandong water ring pump optional |
| Drive Method | Chassis engine + sandwich power take-off |
| Overall Dimensions | 6000 x 2100 x 2600 mm |
| Production Time | 20 days |
| Lead Time | 20 days after advance payment |
| 3 ton vacuum truck with 2,000 L tank | Lower capacity and slower suction but better for narrow urban streets and tight turns |
|---|---|
| Standard suction truck without jetting | Cannot clear hardened grease or solid blockages without a separate jetting unit |
| Used imported jet vac truck | Higher risk of breakdown and long spare parts lead time, no local technical support |
Production takes 20 days after the advance payment is received. Delivery time depends on shipping mode chosen.
Yes. The standard tank is 5mm high-quality carbon steel. Stainless steel is available on request. Specify your water quality and storage duration.
T/T with 30 percent deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before balance payment.
Yes. The HOWO 4x2 chassis can be ordered in left or right hand drive. Confirm at order stage as it cannot be changed later.
By Ro-ro or bulk ship from a China main port. Trade terms are EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts for two years. We provide 15 years of spare parts and technical support.
Yes. The standard pump is Tianjin Tongjie. Germany Pinfu is available as an optional upgrade.
Send us your destination port and we will quote price, lead time and freight.
