Home/ All Trucks/ Sinotruk Sewer Jetting Truck/SINOTRUK HOWO 12000L jet vac combo truck Mauritania

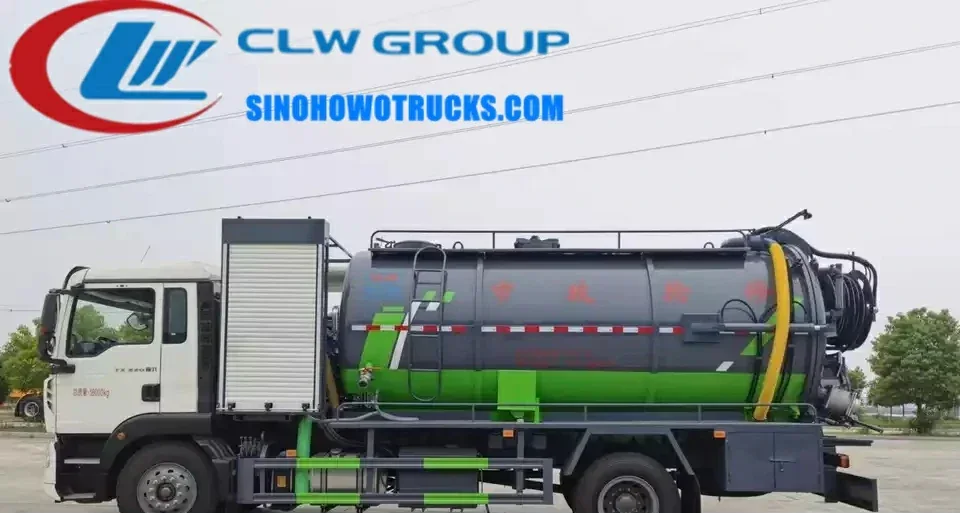

Sinotruk HOWO 12000L jet vac combo truck in service with rear lid open and high-pressure hose deployed

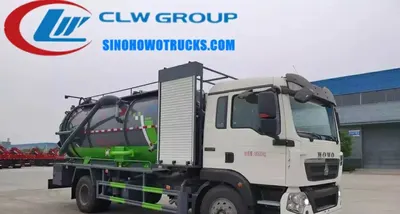

Side view of the HOWO combo truck showing the 6000L sludge tank and 4000L water tank

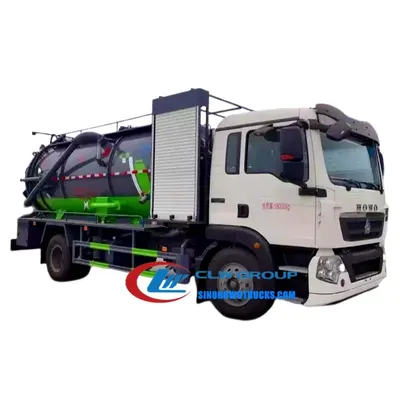

Rear view of the truck with hydraulically operated full-opening lid and tipping cylinder

SINOTRUK HOWO 12000L jet vac combo truck Mauritania

Name: SINOTRUK HOWO 12000L jet vac combo truck Mauritania
Brand: Sinotruk HOWO

The Sinotruk HOWO 12000L jet vac combo truck is a 25000 kg gross weight vehicle built on a 4x4 or 6x4 chassis for municipal sewer maintenance and drainage operations in regions with limited infrastructure. It combines high-pressure jetting and vacuum suction to clear blockages in underground pipelines, lift sludge from manholes, and transport waste to treatment sites. Designed for use in arid and dusty environments like Mauritania, it operates on unpaved roads and in remote locations where access to water and power is limited. The unit is equipped with a 6000L sludge tank and 4000L fresh water tank, allowing for extended field operations without refilling.

Request A Quote Email Specification

Key Benefits

12000L total capacity with separate 6000L sludge and 4000L water tanks for efficient operation
High-pressure jetting at 16-24 MPa clears tough blockages in old or collapsed sewer lines
Vacuum suction of -0.3 MPa pulls sludge and debris from deep manholes and low gradient pipes
Hydraulically operated full-opening rear lid with locking mechanism for safe and fast unloading
Front tipping and double acting cylinder allows controlled dumping without manual assistance
Sandwich PTO driven by Weichai 340-420 HP engine powers both pump and vacuum systems
15 years of spare parts and technical support available for long-term fleet reliability

Buyer Profile

Who It Is for

Municipal sanitation departments in developing countries with aging sewer networks
National and city water and drainage authorities responsible for public health infrastructure
Contractors hired to maintain or rehabilitate sewer systems under government tenders
Private waste management companies operating in regions with low infrastructure density
Engineering firms managing large-scale urban drainage projects in remote or arid zones
International aid organizations procuring durable, low-maintenance sewer equipment for field deployment

Operating Problems

Problems It Solves

Blockages in old or collapsed sewer lines that cannot be cleared by standard jetting alone
Lack of water supply at remote job sites requiring a built-in fresh water tank for jetting
Manual labor required to empty sludge from manholes due to lack of vacuum capability
Frequent breakdowns from poor component integration in low-cost combo trucks
Short lifespan of pumps and seals due to inadequate pressure relief and material selection
Long lead times and delayed spare parts availability for imported sewer maintenance vehicles

Where It Works

Application Scenarios

Municipal sewer maintenance teams in sub-Saharan Africa operating on unpaved roads and remote access routes
Water and sanitation departments in arid regions where water supply for jetting is limited
Contractors performing emergency blockage clearance in aging urban sewer systems
Remote industrial sites with no access to municipal drainage or treatment facilities
Emergency response teams clearing blocked storm drains after heavy rainfall or flooding
Public works departments managing large-scale sewer rehabilitation projects with minimal downtime

Engineering

Technical Features

High-pressure pump with 16-24 MPa operating pressure for deep pipeline cleaning
Vacuum pump capable of -0.3 MPa suction to lift sludge and debris from deep manholes
80 meters standard high-pressure hose with optional 40 meters extension for longer reach
8 meters standard suction hose with flexible connection for tight access points
3 sight glasses mounted at rear of tank for real-time sludge level monitoring
SS float ball primary shut-off prevents overfilling of sludge tank during operation
Over pressure relief valve on tank top protects against over pressurization during jetting
Pneumatic and manual inlet/outlet valves allow flexible control under field conditions
Hydraulically operated full-opening rear lid with locking mechanism for safe unloading
Front tipping cylinder with double acting design ensures stable and controlled dumping

Specifications

Technical Data


Chassis	DONGFENG, SINOTRUK, ISUZU
GVW	25000 kg
Payload	6570 kg
Overall Size	9800 x 2496 x 3780 mm
Tank Material	Mild steel
Tank Shell Thickness	5 mm
High-Pressure Pump Brand	Tianjin Tongjie standard, Germany Pinfu optional
Vacuum Pump Brand	Veyron standard, Shandong water ring pump optional
Drive Method	Chassis engine + sandwich power take-off
PTO Engine	Weichai 340-420 HP
Jetting Pressure	16-24 MPa
Suction Pressure	-0.3 MPa
Jetting Flow	75-275 L/min
Vacuum Exhaust Flow	6-35 m³/h
High-Pressure Hose Length	80 m standard, +40 m optional
Suction Hose Length	8 m standard
Production Time	20 days
Lead Time	7 to 30 days
Shipping Mode	Ro-ro, bulk ship or container from China main port

Build Materials

Materials

Mild steel tank shell with 5 mm thickness for durability and resistance to abrasion
Stainless steel float ball for primary shut-off valve to prevent corrosion
Aluminium alloy fittings and piping for reduced weight and improved corrosion resistance
Rubber seals and gaskets on valves and lids for watertight and airtight performance
High-strength steel frame and mounting brackets for chassis integration and load distribution

How It Is Built

Manufacturing Process

Chassis is received from Dongfeng, Sinotruk, or Isuzu and wheelbase verified against tank layout
Tank shell is cut, rolled, and welded with internal clapboards to reduce surge during transport
Sludge and water tanks are pressure tested and leak tested before final assembly
High-pressure pump, vacuum pump, and PTO are installed and aligned with the driveline
Hoses, nozzles, valves, and sight glasses are fitted and tested for correct operation
Hydraulic systems for rear lid and tipping cylinder are installed and calibrated
Body is primed and painted in customer colour with logo applied free of charge
All systems are tested on-site: jetting, suction, vacuum, and dumping functions verified

Testing

Quality Control

Every truck undergoes 100 percent testing before delivery
Pressure and leak tests conducted on both sludge and water tanks
High-pressure and vacuum systems tested under full load conditions
Photos and videos of the finished truck sent to buyer before balance payment
In-house testing for pressure vessel components including over pressure relief and safety valves

Build to Order

Customization Options

Tank capacity from 3000L to 30000L available to match site needs
Tank material can be upgraded from mild steel to stainless steel on request
Left or right hand drive chassis to match local traffic rules
Custom tank colour and logo applied free of charge
High-pressure pump brand can be changed to Germany Pinfu or other approved models
Vacuum pump brand can be upgraded to Shandong water ring pump
Hose lengths and nozzle types adjusted to site-specific access requirements

Comparison

How It Compares With the Alternatives

Standard vacuum truck with no jetting capability	Cannot clear blockages in hard-packed or collapsed pipes, requires manual intervention
Basic jetting truck without vacuum system	Cannot remove sludge or debris after cleaning, requires separate transport for waste
Used imported combo truck	Higher risk of breakdown, limited spare parts availability, longer repair times

Operating Notes

Use Guide

Confirm chassis type and drive configuration at order stage to match local road and registration rules
Fill fresh water tank only through the designated inlet to avoid contamination
Use the SS float ball to prevent overfilling the sludge tank during suction operations
Engage the sandwich PTO before starting jetting or vacuum functions to avoid driveline damage
Inspect hoses and nozzles before each use for wear or blockages
Drain both tanks and flush the system after use in freezing conditions to prevent damage

Buyer Questions About This Truck

What is the lead time for this jet vac combo truck?

Production time is 20 days. Delivery time varies based on shipping mode and chassis availability, generally 7 to 30 days after advance payment.

Can the tank be stainless steel instead of mild steel?

Yes. Mild steel is standard. Stainless steel is available on request. Specify water quality and storage duration for material confirmation.

What payment terms do you offer?

T/T with 30 percent deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before balance payment.

Do you supply right hand drive?

Yes. Chassis can be ordered in left or right hand drive to match local traffic regulations. Confirm at order stage as changes are not possible later.

How is the truck shipped?

By Ro-ro, bulk ship, or container from a China main port. Trade terms are EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year. Core components are covered for two years. We provide 15 years of spare parts and technical support, including overseas engineer visits and training.

Can the high-pressure pump be upgraded?

Yes. The standard pump is Tianjin Tongjie. Germany Pinfu is available as an optional upgrade. Let us know your pressure and flow requirements.
