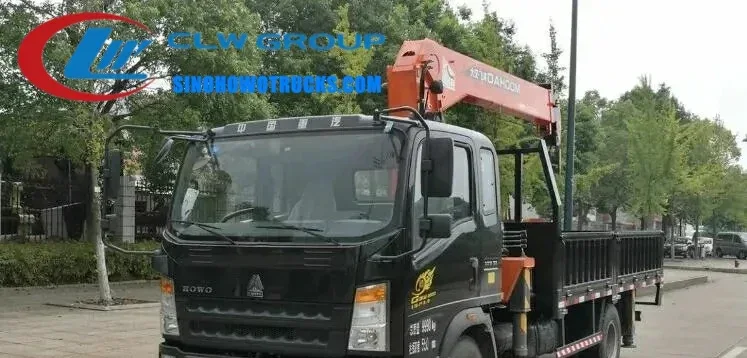

The Sinotruk HOWO 5 ton lorry loader crane is a 4x2 truck-mounted crane built on a left-hand drive chassis with a 160 HP diesel engine and 6-speed manual gearbox. It is designed for contractors, logistics operators, and utility fleets that need to load and unload freight on site without relying on external cranes. The crane has a 5 ton lifting capacity and can rotate 360 degrees, extend and raise loads efficiently. It is used in construction, maintenance, and material handling operations where mobility and self-loading capability are essential.
| Chassis | Sinotruk HOWO 4x2 left hand drive |
|---|---|
| Engine | YC4E160-33, 160 HP, turbocharged, high pressure common rail |
| Gearbox | 6 shift manual |
| Payload Capacity | 7000 kg |
| Curb Weight | Approx. 5800 kg |
| Wheelbase | 4500 mm |
| Overall Dimension | Approx. 8100 x 2450 x 3400 mm |
| Cargo Box Dimension | 4800 x 2300 x 550 mm |
| Lifting Capacity | 5 tons |
| Crane Type | Telescopic or knuckle boom (optional) |
| Control Option | Radio remote control or top seat control (optional) |
| Lead Time | 20 days |
| Shipping Port | China main port |
| Payment | T/T |
| Emission Standard | Euro 2 (China national standard) |
| Mobile crane with separate transport truck | Higher cost and longer setup time, but better lifting capacity and reach |
|---|---|
| 4x4 truck crane | More capable on rough terrain but heavier and less fuel efficient |
| Fixed crane at a job site | Less flexible and requires site preparation, but offers higher stability and capacity |
Generally 20 days after the advance payment is received. The exact date depends on crane type and equipment list.
Yes. Choose either telescopic or knuckle boom at order stage. Both are available as standard options.
T/T with 30 percent deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before the balance payment.
No. The chassis is left hand drive only. Confirm this at order stage as it cannot be changed later.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
Yes. Radio remote control is available as an optional fitment. Top seat control is also available.
Yes. The box colour and logo are applied free of charge as per your requirement.
Send us your destination port and we will quote price, lead time and freight.
