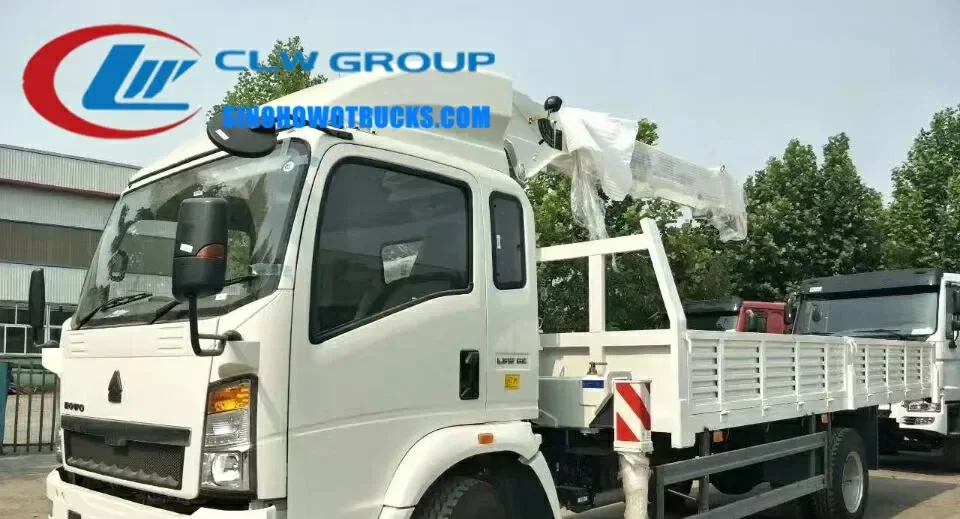

Sinotruk HOWO 6.3 ton crane lorry in construction site with telescopic boom extended and cargo box loaded

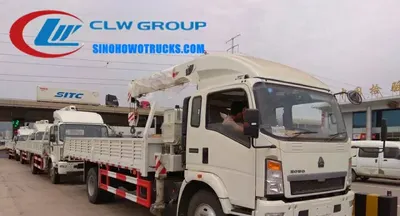

Side view of the HOWO crane lorry showing the 6x4 chassis, 9.00R20 tires, and high-strength steel body

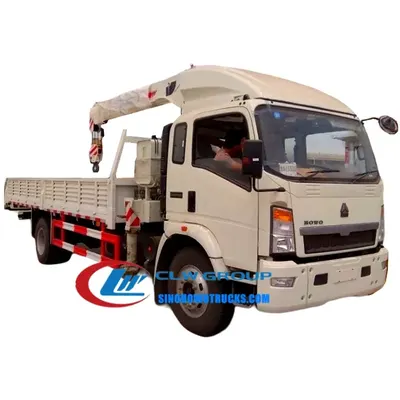

Rear view of the crane lorry with the boom folded and the cargo box secured with tie-down straps

Sinotruk Howo 6.3 ton crane lorry for sale sao tome and principe

Name: Sinotruk Howo 6.3 ton crane lorry for sale sao tome and principe
Brand: Sinotruk HOWO

The Sinotruk HOWO 6.3 ton crane lorry is a 6x4 truck mounted crane built on a 140 HP diesel engine chassis with a 5200 mm wheelbase and a 15795 kg total weight. It is designed for construction sites, logistics hubs, and municipal maintenance teams that need to load and unload heavy materials without relying on external cranes. The crane can rotate 360 degrees, extend and lift with precision, and is fitted with a high-strength steel boom and anti-slewing impulse system for safe operation under variable loads. It is supplied with a choice of Palfinger, XCMG, or Chengli crane units and can be equipped with radio remote control or top seat operation.

Request A Quote Email Specification

Key Benefits

6x4 HOWO chassis delivers strong traction and stability on rough terrain and unpaved access roads
140 HP Yuchai engine with EURO3 emission standard ensures reliable performance and low maintenance
6-ton lifting capacity with single cylinder synchronization cable technology improves lifting efficiency
360 degree slewing and telescopic or knuckle boom options allow access to tight or elevated work zones
Float three-point bridge structure reduces stress on the chassis during travel and improves ride quality
Anti-slewing impulse equipment and over-wind alarm enhance safety during lifting operations
Self-designed slewing machine provides greater drive force for demanding lifting tasks
Radio remote control and top seat operation options improve operator visibility and control
High-strength steel construction resists deformation under repeated heavy lifting cycles
Cargo box with 8 ton loading capacity supports transport and on-site unloading in one operation

Buyer Profile

Who It Is for

Municipal engineering and infrastructure departments in small island nations with limited crane fleets
Construction contractors operating in remote or low infrastructure areas
Utility and telecom companies managing rural network upgrades
Logistics and transport firms needing on-site loading and unloading capability
Government procurement agencies equipping public works vehicles for island-wide deployment
Private contractors bidding on turnkey infrastructure projects requiring mobile lifting

Operating Problems

Problems It Solves

Lack of access to fixed or mobile cranes in remote or low infrastructure regions
High cost and delays from hiring third-party crane services for short-duration tasks
Inability to transport and unload heavy materials in one trip due to separate crane and truck logistics
Poor stability and safety during lifting on uneven or unpaved ground
Limited crane reach and flexibility due to fixed or small boom systems
High downtime from crane maintenance or parts delays in isolated locations

Where It Works

Application Scenarios

Construction sites in Sao Tome and Principe with limited access to heavy lifting equipment
Municipal maintenance crews transporting and installing utility poles, manhole covers, and street furniture
Port and dockside operations where materials must be loaded from trucks directly onto ships
Road and bridge repair teams moving heavy tools and prefabricated components to remote locations
Telecom and power line contractors installing poles and transformers in rural or mountainous areas
Industrial parks requiring mobile lifting for equipment installation and maintenance

Engineering

Technical Features

6x4 HOWO chassis with 5200 mm wheelbase and 10.5T rear axle for high load capacity
Yuchai YC4E160-33 140 HP diesel engine with EURO3 emission standard
DC6J65TC 6 forward 1 reverse manual transmission with 6-speed gear shift
Single cylinder synchronization cable system for smooth and balanced boom operation
Pentagon and hexagon boom design with symmetrical center for high anti-bending strength
Compact hinge point design reduces space occupation and improves turning radius
Float three-point bridge structure minimizes chassis stress during transit
Anti-slewing impulse equipment prevents sudden movement during lifting
Integral lifting winch increases hydraulic system efficiency and service life
Over-wind alarm system prevents boom overextension and structural damage
High-strength steel used throughout the crane and chassis structure
Optional radio remote control or top seat control for improved operator positioning
6-ton lifting capacity with telescopic or knuckle boom configuration available
Cabin with air conditioning, power steering, and sleeper berth for long shifts
9.00R20 radial tires with 6-wheel configuration for load distribution and durability

Specifications

Technical Data


Chassis	Sinotruk HOWO 6x4 left or right hand drive
Engine	Yuchai YC4E160-33, 140 HP, EURO3 emission
Transmission	DC6J65TC, 6 forward 1 reverse manual
Curb Weight	7970 kg
Total Weight	15795 kg
Wheelbase	5200 mm
Cargo Box Capacity	8 tons
Lifting Capacity	6.3 tons
Boom Type	Telescopic or knuckle boom (optional)
Crane Brand	Palfinger, XCMG, or Chengli
Cabin	Howo light truck large-width cabin, 2 seats, 3 people capacity, one sleeper
Tires	9.00R20 radial, 6 wheels
Brakes	Engine exhaust brake and spring brake
Front Axle	3.6T
Rear Axle	10.5T
Power Steering	Yes
Air Conditioning	Yes
Overall Size	8150 x 2500 x 3600 mm
Lead Time	20 days
Shipping Port	China main port
Payment	T/T
Drive Style	LHD or RHD

Build Materials

Materials

High-strength steel used in crane boom, subframe, and chassis structure
Galvanized steel or powder-coated steel for cargo box and body panels
Aluminium alloy used in cabin roof and side panels for weight reduction
Rubber seals and gaskets in boom hinge points and door joints for weather resistance
Stainless steel fasteners in critical load-bearing joints

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against crane mounting drawings
Cargo box and crane subframe are fabricated from high-strength steel and welded into position
Crane boom is assembled with single cylinder synchronization system and anti-slewing impulse unit
Hydraulic lines, winch, and control valves are installed and pressure tested
Cabin is mounted with air conditioning, power steering, and sleeper berth
Body is shot blasted, primed, and painted in customer specified colour and logo
Crane is tested for full range of motion, lifting capacity, and safety alarms
Final inspection includes chassis load test, brake check, and 100% functional test before shipment

Testing

Quality Control

All crane components built to GB/T 3811-2008 standard for crane design and safety
Crane boom and subframe tested under 1.25 times rated load for structural integrity
Hydraulic system pressure tested to 1.5 times working pressure
Every truck undergoes 100% functional test before delivery
Photos and videos of the finished truck are sent to the buyer before balance payment
In-house testing available for pressure vessel and structural components

Build to Order

Customization Options

Crane type selected as telescopic or knuckle boom based on customer task requirements
Lifting capacity and boom length adjusted to match site conditions
Left or right hand drive chassis to match local traffic rules
Cargo box colour and logo applied free of charge
Radio remote control or top seat control fitted as optional equipment
Custom hydraulic system settings for specific lifting profiles
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

6x2 crane lorry with 4.5 ton capacity	Lower lifting capacity and less stability on uneven ground but better fuel economy and easier to maneuver in tight urban spaces
Mobile crane with separate truck and crane	Higher cost and longer setup time but greater lifting height and reach for large construction projects
Standard flatbed truck with portable crane	More flexible in deployment but slower to set up and less stable during lifting operations

Operating Notes

Use Guide

Confirm left or right hand drive and local road regulations before placing the order
Inspect crane hydraulic fluid levels and filter condition before each shift
Use radio remote control or top seat operation only when the crane is fully supported and stable
Do not exceed 6.3 ton lifting capacity or extend boom beyond rated length
Engage anti-slewing impulse system before lifting and monitor over-wind alarm during operation
Perform daily checks on tires, brakes, and boom hinge points for wear or damage
Drain hydraulic system and store in dry conditions if the truck will not be used for over 30 days

Buyer Questions About This Truck

What is the lead time for this crane lorry?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and crane configuration.

Can the crane be a telescopic or knuckle boom type?

Yes. Both telescopic and knuckle boom configurations are available. Specify your preference at order stage.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply left or right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the crane be fitted with radio remote control?

Yes. Radio remote control is available as an optional fitment. Specify this when placing the order.
