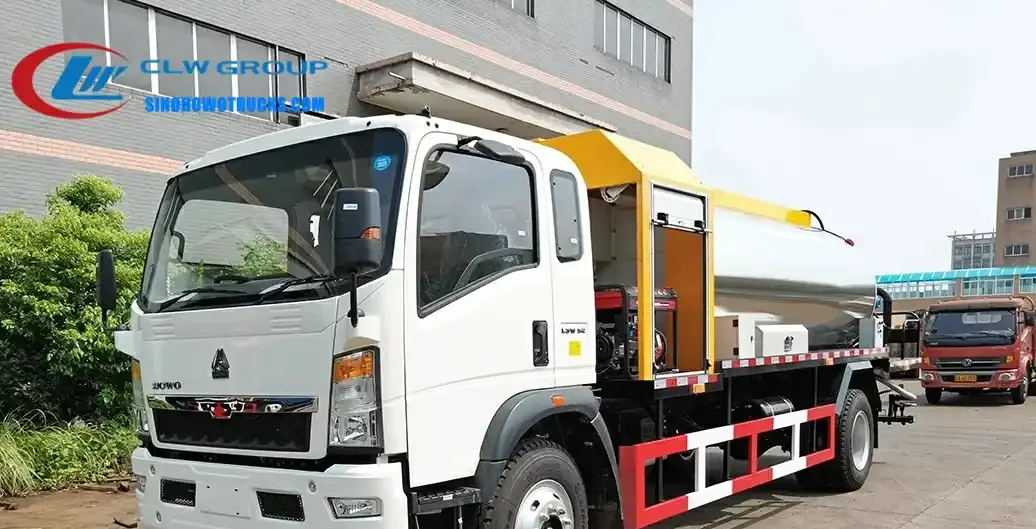

Sinotruk HOWO 5 ton asphalt tack truck in road construction grey with 4000 L tank and spray system

Cab view of the HOWO asphalt distributor showing control panel and spray rate display

Side view of the asphalt truck showing adjustable spray width and nozzle array

Sinotruk Howo 5 ton asphalt tack truck Mozambique

Name: Sinotruk Howo 5 ton asphalt tack truck Mozambique
Brand: Sinotruk HOWO

The Sinotruk HOWO 5 ton asphalt tack truck is a 4000 litre road construction vehicle built on a 4x2 HOWO chassis with a 116 HP diesel engine and 6-speed manual gearbox. It is designed for spreading emulsified asphalt, fluxed asphalt, heated asphalt, and high viscosity modified asphalt on road surfaces during paving and patching operations. The truck delivers precise, adjustable spray patterns from 2 to 6 metres wide and maintains consistent application rates across varying speeds. It is used by road contractors, municipal works departments, and infrastructure developers in regions with limited access to centralized asphalt supply or where flexible, on-site application is required.

Request A Quote Email Specification

Key Benefits

4000 litre asphalt tank with heat conduction oil heating system maintains consistent viscosity for all asphalt types
Computer-controlled spray system allows individual nozzle control and real-time adjustment of spray rate and width
Spray width adjustable from 2 to 6 metres to match lane width and project requirements
Spray accuracy within ±2% ensures even coverage and reduces material waste
Dual control system in cab and on platform ensures safe and reliable operation under all conditions
Italian RIELLO G10 burner (100×10³ kcal/h) heats asphalt at a controlled rate of no more than 2°C per hour
Automatic blowing device clears asphalt from pipes and nozzles after use to prevent clogging

Buyer Profile

Who It Is for

Municipal road maintenance and public works departments in Africa and Asia
Private road construction contractors working on highway and urban infrastructure projects
Government agencies managing rural road networks with limited access to asphalt supply
Contractors supplying asphalt paving services to oil and mining company sites
Infrastructure developers building roads in remote or underdeveloped regions
Road repair teams operating in countries with high temperature variations and long hauls

Operating Problems

Problems It Solves

Inconsistent asphalt application due to manual or uncalibrated spray systems
Clogging of nozzles and pipes from cooled or hardened asphalt during long idle periods
High material waste from over-spraying or uneven distribution across the road surface
Lack of control over spray width and rate during variable speed operations
Difficulty in maintaining asphalt temperature during transport in hot or cold climates
Need for multiple trucks or manual labor to cover large or irregularly shaped road sections

Where It Works

Application Scenarios

Road resurfacing projects in rural or remote areas with no access to asphalt plants
Patching and maintenance of highways and urban roads where precision and speed are critical
Construction of new roads in developing regions with limited infrastructure and supply chains
Municipal road maintenance departments operating on tight budgets and tight schedules
Contractors working on short-term projects with multiple small job sites across a region
Road rehabilitation in tropical climates where asphalt must be kept fluid during transport and application

Engineering

Technical Features

4000 litre asphalt tank with internal heat conduction oil system for temperature control
Spray system with 2 to 6 metre adjustable width and 0.2 to 2.5 L/m² application rate
Computer-controlled system with modular design for reduced failure and easier maintenance
Italian RIELLO G10 burner (100×10³ kcal/h) maintains asphalt temperature at no more than 2°C per hour
Automatic blowing device clears asphalt from pipes and nozzles after use
Dual control system: cab-mounted and post-operational platform for safe operation
Individual nozzle control allows precise pattern shaping and spot application
Hydraulic pump CBQ540-L and asphalt pump motor TILORMS 05-90-BD31 ensure stable flow
Manual 6-speed gearbox with 6 forwards and 1 reverse gear for reliable transmission
Left or right hand drive chassis to match local traffic regulations

Specifications

Technical Data


Chassis	SINOTRUK HOWO 4x2 left or right hand drive
Engine	YUNNEI YN4102QBZL, 116 HP, diesel, Euro III
Transmission	WLY646, 6 forwards and 1 reverse, manual
Overall Size	6300 x 2080 x 2400 mm
Wheelbase	3360 mm
Cab	HOWO single row, with A/C
Asphalt Tank Capacity	4000 L
Spray Width	2 to 6 m
Spray Rate	0.2 to 2.5 L/m²
Spray Accuracy	±2%
Burner	Italian RIELLO G10, 100×10³ kcal/h
Hydraulic Pump	CBQ540-L
Heat-transfer Oil Pump	RY25-25-160
Asphalt Pump Motor	TILORMS Brand, 05-90-BD31
Tire Size	8.25R16
Tire Count	6 + 1 spare
Fuel Tank	120 L
Brake	Oil brake or air brake
Front Axle	2.7 tons
Rear Axle	7.2 tons
Lead Time	20 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

4000 litre asphalt tank made of carbon steel with heat conduction oil heating system
Internal piping and nozzles made of stainless steel for corrosion resistance
Cab and body panels constructed from steel with anti-corrosion coating
Heat transfer oil system with insulated pipes to maintain thermal efficiency
Control panel and electrical wiring rated for industrial use in dusty and wet environments

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the tank layout drawing
Tank shell is cut, rolled, and welded with internal baffles to reduce surge
Tank is pressure tested and heat sealed before internal components are installed
Heat conduction oil system and burner are installed and tested for safe operation
Hydraulic pump, asphalt pump, and motor are mounted and aligned to the driveline
Spray nozzles, piping, and control valves are installed with individual electronic control units
Control system is programmed and tested for accuracy and response time
Cab and body are painted in fire service red or customer specified colour with logo applied free of charge
Full system test is conducted on the factory apron: heating, spraying, and control response
Photos and videos of the finished truck are sent to the buyer before balance payment

Testing

Quality Control

Every truck is 100 percent tested before delivery
Spray accuracy and heating system performance are verified under real operating conditions
Pressure and non-destructive tests available in-house for tank and pressure vessel components
Control system tested for dual operation (cab and platform) and fail-safe response
Photos and videos of the finished truck are sent to the buyer before the balance payment
All systems comply with GB39.5 general specification for road construction vehicles

Build to Order

Customization Options

Tank capacity can be adjusted to meet project-specific asphalt volume needs
Spray width and rate can be reprogrammed based on site conditions and material type
Left or right hand drive chassis to match local traffic regulations
Tank colour and logo applied free of charge
Control system can be upgraded to include GPS tracking or remote monitoring
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

4x2 truck with 2000 L tank	Carries half the asphalt but is more maneuverable in tight urban sites
Manual spray system with fixed nozzles	Less precise and harder to adjust on the move, higher material waste
Used asphalt distributor from Europe	Higher initial cost and longer delivery time, parts and service may be delayed by months

Operating Notes

Use Guide

Confirm left or right hand drive at order stage to match local traffic rules
Fill the asphalt tank only through the designated inlet and avoid overfilling
Start the burner at least 30 minutes before spraying to ensure even heating
Set the spray rate and width in the cab based on vehicle speed and road width
Use the automatic blowing device after each use to clear nozzles and pipes
Drain the tank and flush the system with solvent if the truck will not be used for more than 24 hours

Buyer Questions About This Truck

What is the lead time for this asphalt truck?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and the equipment list.

Can the tank be larger than 4000 litres?

Yes. The standard tank is 4000 litres and larger capacities are available. Let us know your required volume and we will confirm the design.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the control system be upgraded?

Yes. The system can be upgraded with GPS tracking, remote monitoring, or data logging. Let us know your requirements at order stage.
