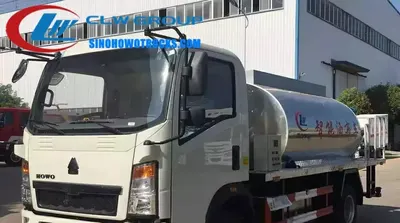

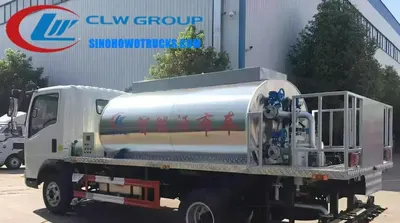

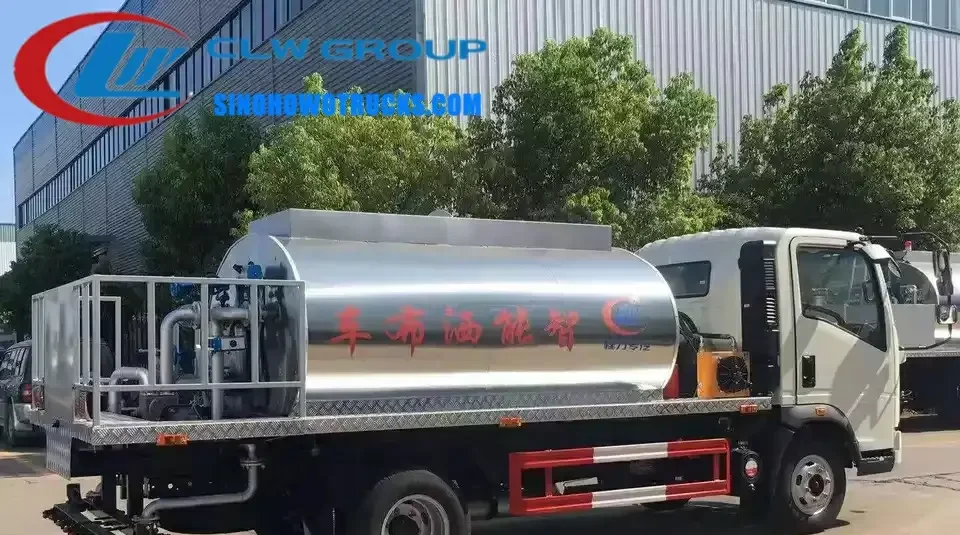

The Sinotruk HOWO 5000 litre asphalt distributor truck is a 5 ton road maintenance vehicle built on a HOWO chassis with a 120 HP engine and 6 speed manual gearbox. It is designed for asphalt contractors and municipal road maintenance teams that need to apply emulsified asphalt, fluxed asphalt, heated asphalt, and high viscosity modified asphalt in a controlled, consistent layer during pavement repair, seal coating, and surface treatment. The truck operates at speeds between 3 and 15 km/h and can adjust spray width from 2 to 6 metres. The intelligent spray system allows full control from the cab and ensures even distribution across the work zone.
| Chassis | Sinotruk HOWO 5 ton |
|---|---|
| Engine | 120 HP, SINO series |
| Gearbox | 6 speed manual |
| Overall Size | 7000 x 2300 x 2800 mm |
| Asphalt Capacity | 5000 L |
| Operating Speed | 3 to 15 km/h |
| Burner | Italy RIELLO G20 |
| Tank Material | Carbon steel |
| Heating System | Heat conduction oil with temperature control |
| Control System | Computer-controlled with manual override |
| Lead Time | 20 days |
| Shipping Port | China main port |
| Payment | T/T |
| Warranty | 1 year on whole vehicle, 1 year on core components |
| Core Components | Engine, Gearbox |
| 4 ton asphalt distributor with 3000 L tank | Lower capacity requires more refills but is easier to maneuver in tight urban spaces |
|---|---|
| Hand-controlled spray system | Less precise application and higher operator fatigue, but lower initial cost |
| Used or second-hand distributor | Higher risk of mechanical failure and no warranty, but lower upfront cost |
Generally 20 days after the advance payment is received. The exact date depends on chassis availability and equipment configuration.
The standard tank is carbon steel. Stainless steel is available on request; please specify the asphalt type and storage duration.
T/T with 30 percent as deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core components like the engine and gearbox are guaranteed for one year. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.
Yes. The standard system is hand-controlled. Full computer control with real-time flow adjustment is available as an option.
Send us your destination port and we will quote price, lead time and freight.
