Home/ All Trucks/ Howo Asphalt Distributor Truck/Sinotruk Howo 14m3 asphalt patch truck Ghana

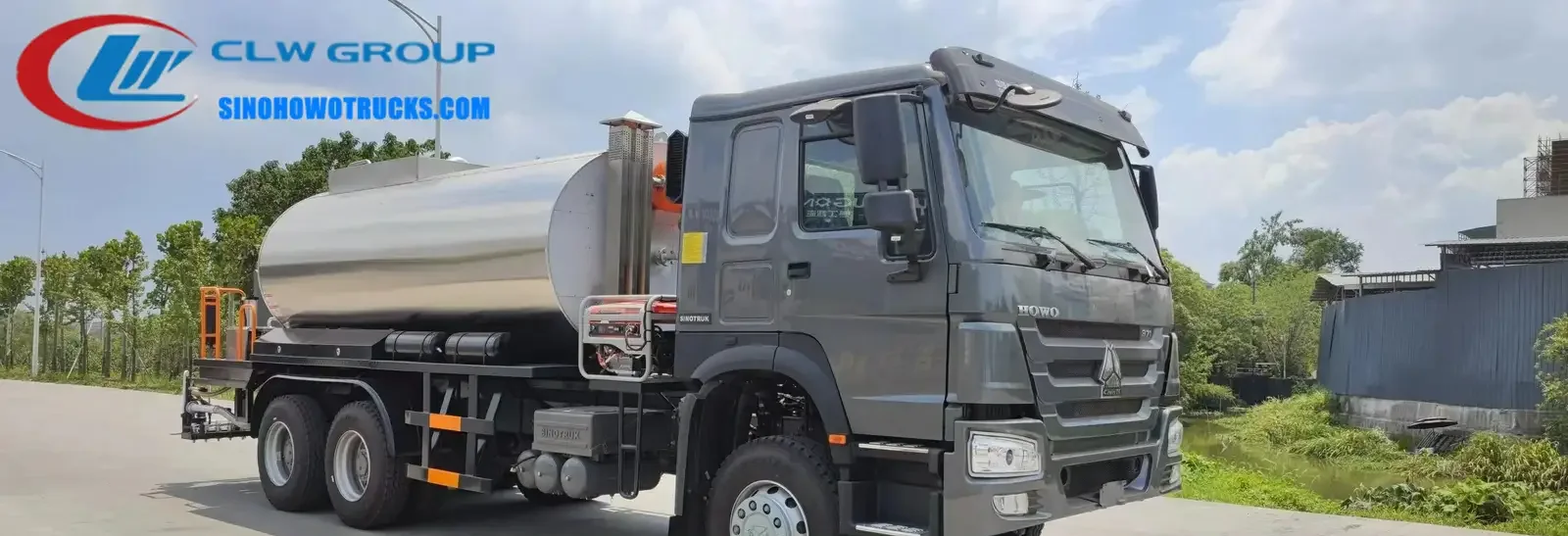

Sinotruk HOWO 14m3 asphalt patch truck in service on a road construction site with spray system active

Rear view of the HOWO asphalt distributor showing the 14m3 tank and spray nozzles

Cab interior of the HOWO asphalt truck with computer control panel and dual interface display

Sinotruk Howo 14m3 asphalt patch truck Ghana

Name: Sinotruk Howo 14m3 asphalt patch truck Ghana
Brand: Sinotruk HOWO

The Sinotruk HOWO 14m3 asphalt patch truck is a 14 ton road maintenance vehicle built on a HOWO chassis with a 371 HP engine and manual 10-speed gearbox. It is designed for precise, controlled application of emulsified asphalt, fluxed asphalt, heated asphalt, and high viscosity modified asphalt on road surfaces during patching, sealing, and surface treatment operations. The truck operates in municipal road departments, construction contractors, and highway maintenance fleets that require consistent, adjustable spray patterns and reliable performance in variable weather and terrain conditions.

Request A Quote Email Specification

Key Benefits

14m3 asphalt tank with heat conduction oil heating system maintains asphalt at working temperature
Spray width adjustable from 2m to 6m to match road width and application needs
Computer-controlled spray system allows individual nozzle control and real-time flow adjustment
Dual control system (cab and rear platform) ensures safe and reliable operation during spraying
Automatic blowing device clears asphalt residue from pipes and nozzles after use
Manual 10-speed gearbox and durable HOWO chassis support long-term use on rough roads
Tank temperature controlled at no more than 2 degrees per hour to prevent overheating

Buyer Profile

Who It Is for

Municipal road departments managing urban and suburban road networks
Contractors bidding on road patching and sealing projects under government tenders
Highway maintenance units responsible for preventive maintenance on national routes
Construction firms with mobile road repair fleets for infrastructure projects
Road service providers in developing countries with limited access to large asphalt plants
Public works agencies upgrading rural and feeder roads with cost-effective solutions

Operating Problems

Problems It Solves

Inconsistent asphalt application from manual or uncontrolled spray systems
Overheating or cooling of asphalt during transport due to poor thermal control
Limited spray width adjustment requiring multiple passes on narrow or wide roads
Nozzle clogging and pipe blockages from residual asphalt after use
Lack of dual control systems leading to unsafe operation during spraying
High downtime due to complex maintenance on older or non-integrated asphalt spreaders

Where It Works

Application Scenarios

Municipal road maintenance teams patching potholes and sealing cracks on urban streets
Highway contractors applying surface treatments during road resurfacing projects
Rural road networks requiring low-cost, high-precision asphalt sealing with minimal equipment
Contractors working on low-traffic roads where full paving machines are impractical
Road repair crews operating in remote areas with limited access to asphalt plants
Temporary road treatments before permanent resurfacing in high-traffic zones

Engineering

Technical Features

Chassis model ZZ1257S4641W with left or right hand drive option
Engine WD615.47, 6-cylinder inline, water cooled, turbocharged and intercooled, 371 HP
Displacement 9.726 L, Euro 2 emission standard
Clutch: single-plate dry diaphragm spring, 430 mm diameter, hydraulically operated with air assistance
Gearbox: SINOTRUK brand, manual, HW19710, 10 forward and 2 reverse gears
Front axles: 9000 kg with drum brake system or HF7, 7000 kg with drum brake system
Rear axles: HC16, 2X16000 kg, double stage reduction (central + hub), cast axle housing
Suspension: front with 9 pcs (or 3 pcs) leaf springs and hydraulic telescopic shock absorbers
Rear suspension: 12 pcs (or 5 pcs or 15 pcs) leaf springs with bogie spring and stabilizer
Asphalt tank capacity: 14m3, constructed from carbon steel with internal insulation
Heating system: heat conduction oil with temperature control to maintain asphalt at working viscosity
Spray system: computer-controlled with individual nozzle regulation and adjustable width
Control system: dual interface (cab and rear platform) for safe and flexible operation
Automatic blowing device clears asphalt from pipes and nozzles after spraying
Rinsing system included for cleaning after use
Tank size: 10500 x 2500 x 3400 mm

Specifications

Technical Data


Chassis Model	ZZ1257S4641W (Left/Right Hand Drive Optional)
Engine	WD615.47, 6-cylinder inline, turbocharged, intercooled, 371 HP
Displacement	9.726 L
Emission Standard	Euro 2
Gearbox	SINOTRUK HW19710, 10 forward, 2 reverse, manual
Clutch	Single-plate dry diaphragm spring, 430 mm, hydraulic with air assist
Front Axle	9000 kg drum brake or HF7 7000 kg drum brake
Rear Axle	HC16, 2X16000 kg, double stage reduction, cast housing
Suspension Front	9 pcs (or 3 pcs) leaf springs with hydraulic shock absorbers
Suspension Rear	12 pcs (or 5 pcs or 15 pcs) leaf springs with bogie spring
Tank Capacity	14m3
Tank Material	Carbon steel with internal insulation
Heating System	Heat conduction oil with temperature control
Spray Width	2m to 6m adjustable
Control System	Computer-controlled with dual cab and rear platform interface
Blowing Device	Automatic asphalt residue clearance system
Rinsing System	Included for post-use cleaning
Overall Size	10500 x 2500 x 3400 mm
Lead Time	20 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Carbon steel tank with internal insulation for heat retention
Heat conduction oil system for consistent asphalt temperature control
Stainless steel piping and nozzles for resistance to asphalt residue buildup
Aluminium alloy components on control panels and access doors for corrosion resistance
Rubber seals on doors and joints to prevent asphalt leakage and dust ingress
High-grade hydraulic hoses and fittings rated for asphalt temperatures

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and verified against the tank and system layout drawings
Tank shell is cut, formed, and welded with internal baffles and insulation layers
Tank is pressure tested and inspected for leaks before internal coating is applied
Heating system and heat conduction oil lines are installed and tested for integrity
Pump, piping, and nozzle array are assembled and aligned with the control system
Control panels and dual interface (cab and rear) are installed and calibrated
Spray system is tested with water and then with heated asphalt to verify flow and control
Final inspection includes full system operation, temperature control, and rinsing function
Truck is cleaned, painted in customer colour (free), and prepared for shipment

Testing

Quality Control

All tanks are pressure tested and inspected for leaks before final assembly
Heating system tested at maximum operating temperature for 24 hours
Spray system tested with full range of flow and width settings
Control system verified for dual interface operation and fail-safe response
100 percent test before delivery, including photos and videos sent to buyer
Temperature control system validated to maintain asphalt within 2 degrees per hour

Build to Order

Customization Options

Tank capacity can be adjusted to match project-specific asphalt volume needs
Left or right hand drive chassis selected to match local traffic regulations
Tank colour and logo applied free of charge to match fleet livery
Spray system can be upgraded from hand-controlled to full computer-controlled
Nozzle configuration and spray pattern adjusted to suit specific road surface types
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

6m3 manual asphalt spreader	Carries less asphalt and requires more refills but is easier to maneuver in tight urban spaces
Full asphalt paver machine	Higher initial cost and complexity but provides continuous, uniform paving; not suitable for spot patching
Standard asphalt tanker with hose	No temperature control or precise spray regulation; prone to uneven application and clogging

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local road rules
Fill asphalt only through the designated inlet and avoid overfilling the tank
Set heating system to maintain asphalt temperature within safe operating range
Use computer control system to adjust spray width and flow rate based on vehicle speed
Engage automatic blowing device after each spraying session to clear pipes
Rinse system with solvent or water after use to prevent asphalt residue buildup

Buyer Questions About This Truck

How long is the lead time for this asphalt patch truck?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and equipment configuration.

Can the chassis be right hand drive?

Yes. The chassis is available in left or right hand drive. Confirm your preference at order stage as it cannot be changed after production starts.

What payment terms do you use?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Can the tank be painted in a different colour?

Yes. The tank colour and logo are applied free of charge. Send your livery design at order stage.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the spray system be upgraded to computer-controlled?

Yes. The standard system is hand-controlled, but full computer control is available. Specify this at order stage.
