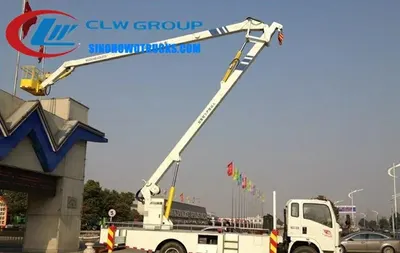

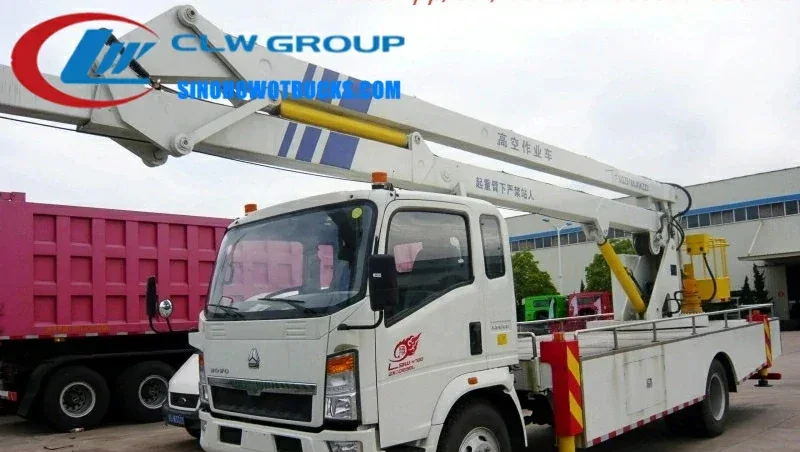

The Sinotruk HOWO 18 meter truck mounted boom lift is a 4x2 chassis based aerial work platform designed for high-level maintenance tasks such as traffic light and street light servicing, signboard installation and removal, and tree trimming in urban and rural environments. Built on a Sinotruk HOWO HF19710 chassis with a 120 HP WD615.62 diesel engine and 6-speed manual gearbox, it operates with a 360-degree rotating work platform that reaches 18 meters in height and 8.5 meters in radius. The platform supports up to 200 kg and is available in steel or reinforced fiberglass (insulated) construction with 90-degree left and right rotation. It is configured for safe operation with four outriggers, front support, and multiple safety systems including relief valves, balance valves, and double-way hydraulic locks.
| Chassis | Sinotruk HOWO HF19710 4x2 |
|---|---|
| Engine | WD615.62, 120 HP, diesel |
| Gearbox | WLY 6 speeds manual |
| Overall Size | 8230 x 2320 x 3380 mm |
| Kerb Mass | 7060 kg |
| Total Mass | 7450 kg |
| Wheelbase | 3815 mm |
| Front Axle Load | 2460 kg |
| Rear Axle Load | 4990 kg |
| Max Speed | 95 km/h |
| Fuel Type | Diesel |
| Max Working Height | 18 m |
| Max Working Radius | 8.5 m |
| Platform Load Capacity | 200 kg |
| Rotation Speed | 0–2 r/min |
| Max Hoisting Capacity | 1000–2000 kg |
| Rotation Angle | 360 degrees |
| Outriggers | 4 pieces with front support |
| Operating Modes | Wireless, wired, handle |
| Safety Systems | Relief valves, balance valves, double-way hydraulic locks, emergency motor stop |
| Platform Material | Steel or reinforced fiberglass (insulated) |
| Lead Time | 30 days |
| Shipping Port | China main port |
| Payment | T/T |
| 12 meter boom lift on a 4x2 chassis | Lower reach but better maneuverability in narrow urban streets and tighter parking spaces |
|---|---|
| Telescopic boom with fixed platform | Less flexible in positioning but simpler to operate and maintain with fewer moving parts |
| Imported boom lift with 5 year support | Higher initial cost and longer spare parts lead time; this model offers 15 years of support and faster delivery |
Generally 30 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.
Yes. The standard platform is steel. Reinforced fiberglass (insulated) is available for use in electrical environments. Specify your requirement at order stage.
T/T with 30 percent as deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.
Yes. The truck comes with three operating modes—wireless, wired, and handle. Additional modes can be added based on customer needs.
Send us your destination port and we will quote price, lead time and freight.
