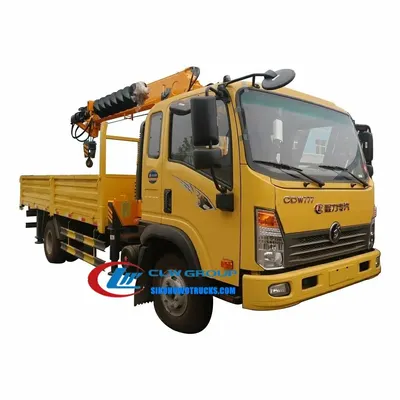

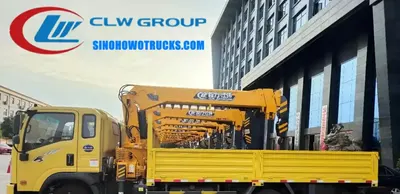

The Sinotruk HOWO 3t utility truck with crane and drilling machine is a 4x2 light-duty work vehicle built on a HOWO chassis with a 168 HP Cummins diesel engine and 6-speed manual gearbox. It is designed for construction, infrastructure, and utility contractors who need a mobile platform to lift, transport, and install equipment at remote or access-limited sites. The crane handles up to 3 tonnes at maximum outreach, and the drilling machine enables on-site borehole operations for foundation, water, or geotechnical work. The truck operates in rural and urban environments where a dedicated crane or drilling rig is not practical.
| Chassis | Sinotruk HOWO 4x2 left hand drive |
|---|---|
| Engine | Cummins 168 HP diesel, EURO II |
| Gearbox | 6 forward, 1 reverse manual |
| Overall Size | 8215 x 2500 x 3850 mm |
| Gross Vehicle Weight | 15795 kg |
| Curb Weight | 8450 kg |
| Loading Capacity | 5805 kg |
| Front Axle Capacity | 5000 kg |
| Rear Axle Capacity | 7200 kg |
| Wheelbase | 4500 mm |
| Cabin | Single, left hand drive, 2 passengers |
| Crane Capacity | 3 tonnes at maximum outreach |
| Crane Type | Telescopic or knuckle boom, optional |
| Drilling Machine | Mounted on cargo body, for on-site borehole use |
| Lead Time | 20 days |
| Shipping Port | China main port |
| Payment | T/T |
| Dedicated mobile crane with separate transport | Higher cost and longer lead time; requires two vehicles and more coordination |
|---|---|
| Small hand-operated crane on a pickup truck | Limited capacity and reach; not suitable for heavy lifting or drilling tasks |
| Truck with crane but no drilling machine | Cannot perform borehole operations on site; requires separate drilling rig and transport |
Generally 20 days after the advance payment is received. The exact date depends on crane type and drilling machine configuration.
Yes. You can choose between telescopic or knuckle boom crane at order stage.
Yes. The drilling machine is connected to the truck’s power take-off system and operates using engine power.
No. The standard is left hand drive. Right hand drive is not available for this model.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
T/T with 30 percent deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before the balance payment.
Yes. The cargo body and cabin can be painted in any colour and logo applied free of charge based on your request.
Send us your destination port and we will quote price, lead time and freight.
