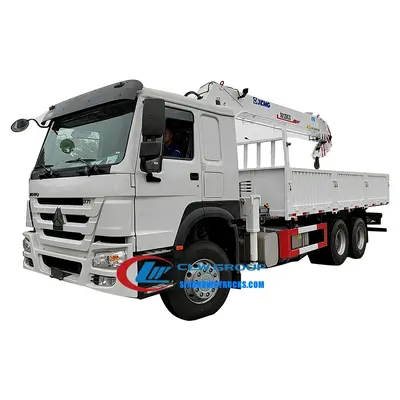

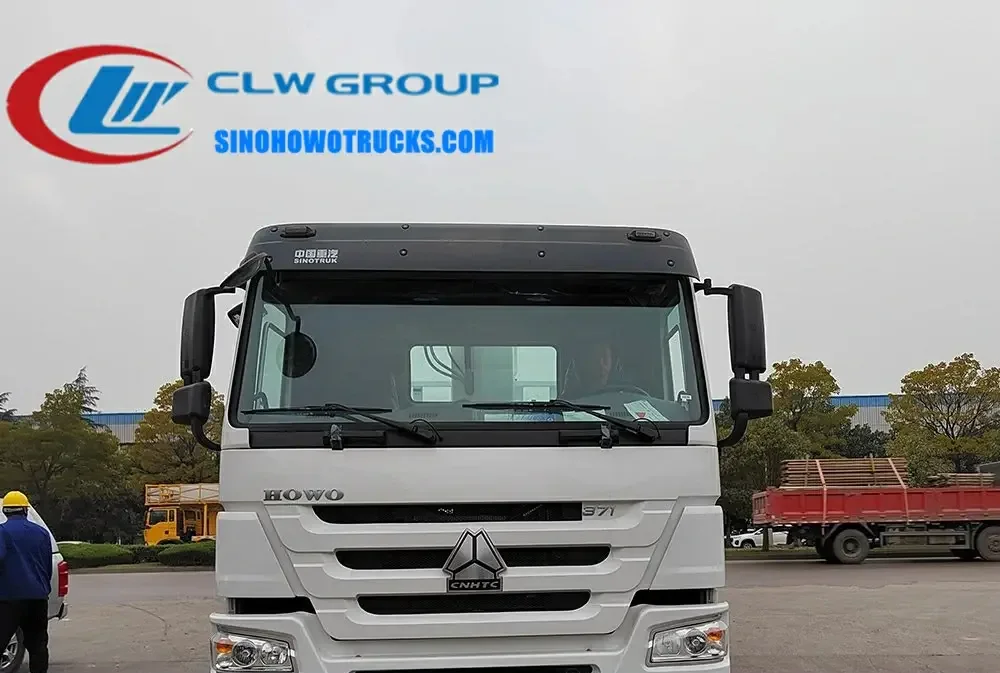

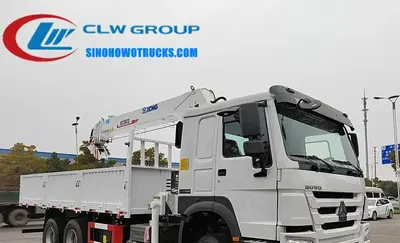

The Sinotruk HOWO 12t truck mounted hydraulic crane is a 6x4 heavy duty vehicle built on a left or right hand drive chassis with a 371 HP diesel engine and 10 speed manual gearbox. It is designed for construction sites, industrial maintenance, and logistics operations where a self-loading crane is needed without relying on external lifting equipment. The crane has a maximum lifting capacity of 12,000 kg and a maximum lifting moment of 18 t*m, enabling it to handle large steel beams, machinery, and prefabricated modules in remote or low infrastructure areas. The crane can rotate 360 degrees and extend its boom for precise placement in tight work zones.
| Chassis | Sinotruk HOWO 6x4 left or right hand drive |
|---|---|
| Engine | WP615.47, 371 HP, 9726 ml, Euro 2 |
| Gearbox | 10 forward, 2 reverse manual |
| Overall Size | 8000 x 2500 x 3300 mm |
| Wheelbase | 4350 + 1350 mm |
| Tare Weight | 10000 kg |
| Gross Vehicle Weight | 22000 kg |
| Max Lifting Capacity | 12000 kg |
| Max Lifting Moment | 18 t*m |
| Boom Length | 5 meters |
| Crane Type | Telescopic or knuckle boom, optional |
| Control Option | Radio remote control or top seat control, optional |
| Tires | 12R22.5 tubeless, 10 pcs with 1 spare |
| Cab | 2 seats, 1 sleeper, A/C, LHD |
| Lead Time | 20 days |
| Shipping Port | China main port |
| Payment | T/T |
| Mobile crane with separate transport truck | Higher initial cost and longer setup time, but better reach and lifting capacity |
|---|---|
| Lighter 8t truck crane | Lower lifting capacity and less stability on rough terrain, but better fuel economy and turning radius |
| Used crane on second-hand chassis | Higher risk of mechanical failure and shorter service life, but lower upfront cost |
Generally 20 days after the advance payment is received. The exact date depends on chassis availability and crane configuration.
Yes. Both telescopic and knuckle boom types are available. Specify your preference at order stage.
T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis is available in left or right hand drive. Confirm this at order stage as it cannot be changed later.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts for two years. Overseas engineers make regular return visits and provide technical training and manuals before delivery.
Yes. The tank colour and logo are applied free of charge as per your request.
Send us your destination port and we will quote price, lead time and freight.
