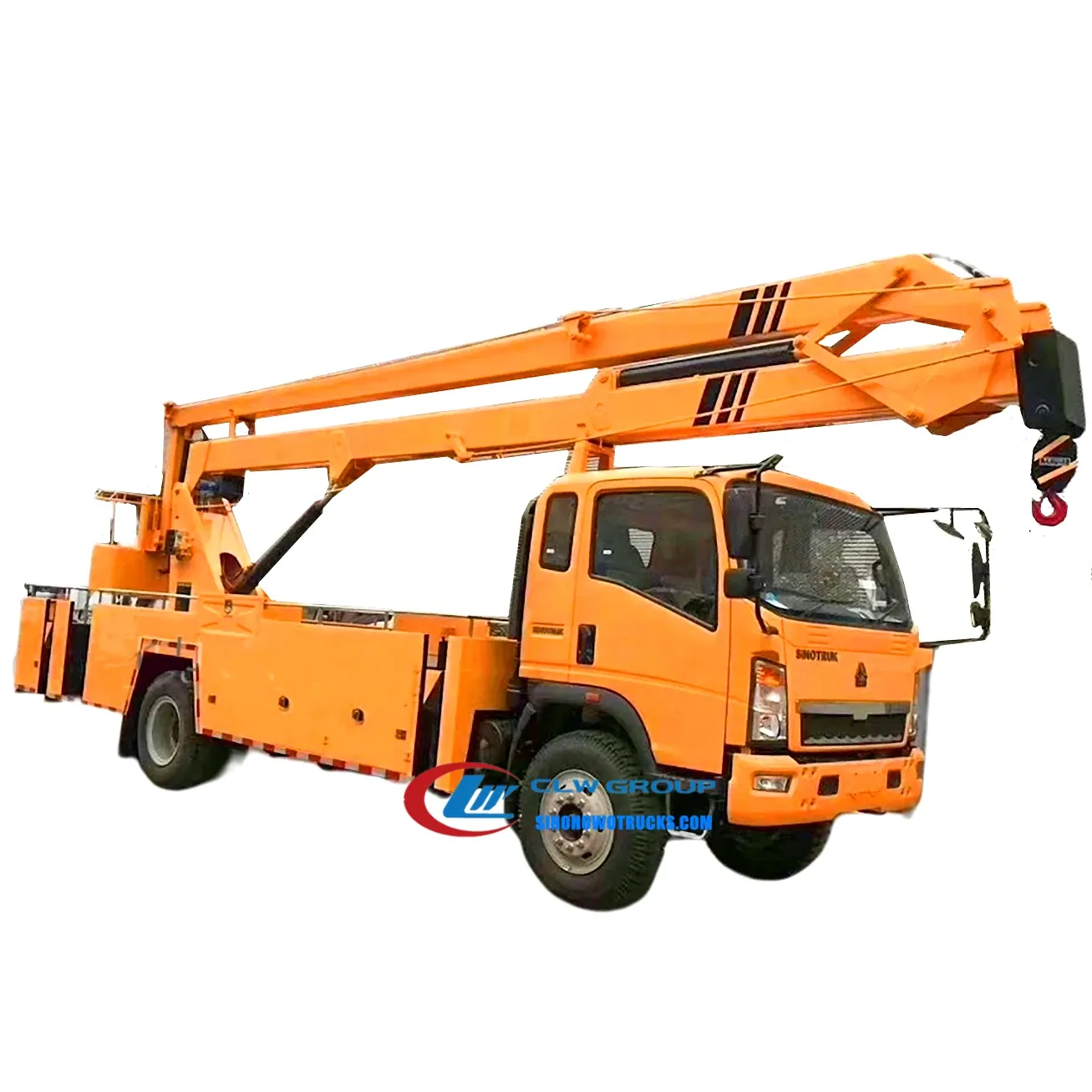

Sinotruk HOWO 20 meter truck mounted man lift in urban setting with platform raised to 20 meters

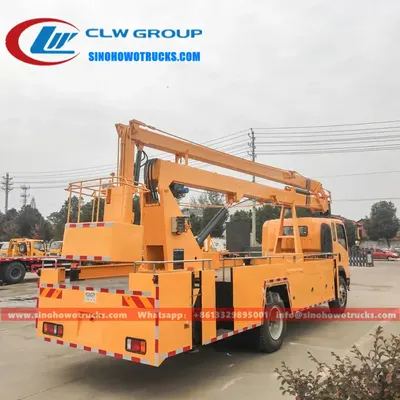

Side view of the HOWO man lift showing the hydraulic boom and H-type outriggers

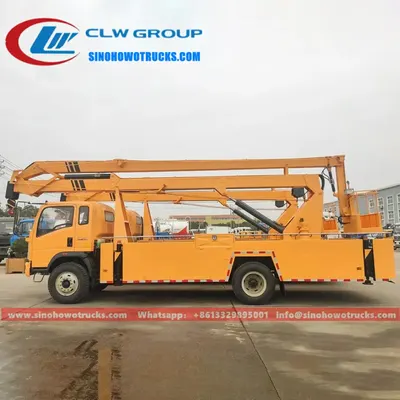

Aerial platform with insulated fiberglass basket and safety gates in use on a streetlight

Sinotruk Howo 20meters truck mounted man lift Thailand

Name: Sinotruk Howo 20meters truck mounted man lift Thailand
Brand: Sinotruk HOWO

The Sinotruk HOWO 20 meter truck mounted man lift is a 4x2 high altitude operation truck built on a 160 HP left or right hand drive chassis with a 6-speed manual gearbox. It is designed for maintenance of traffic lights, street lighting, overhead power lines, signboards, and tree trimming in urban and rural environments. The 20 meter hydraulic telescopic boom lifts a 200 kg rated platform to a maximum height of 20 meters with a 9 meter working range and full 360 degree slewing. The platform can rotate 90 degrees left and right and is available in steel or insulated fiberglass construction. It is used by municipal utilities, telecom operators, and infrastructure contractors that need safe access to elevated work zones without setting up scaffolding.

Request A Quote Email Specification

Key Benefits

20 meter hydraulic telescopic boom lifts a 200 kg platform to 20 meters with 9 meter reach and 360 degree slewing
Steel or insulated fiberglass platform with 90 degree left and right rotation for flexible positioning
Four adjustable H-type outriggers and front support improve stability on uneven ground
Three operating modes: wireless remote, wired control, and handle operation for use in tight spaces
4HK1-TCG40 EURO-4 engine with 160 HP and 190 HP output ensures reliable performance over 500,000 km without overhaul
15 years of spare parts and technical support available for long-term operation
Computer intelligent control with automatic range limit and danger alarm for safe operation

Buyer Profile

Who It Is for

Municipal public works and infrastructure departments
Electricity and telecom utility operators
Highway and road maintenance contractors
Landscape and urban forestry service providers
Industrial park and factory maintenance teams
Private contractors supplying aerial access services to public and private clients

Operating Problems

Problems It Solves

Need for temporary scaffolding or cranes for routine overhead maintenance tasks
Inability to reach high points safely with ladders or mobile platforms
Lack of stable access for workers on uneven or soft ground
Limited reach and range of standard cherry pickers in urban or congested areas
High cost and long lead time for imported aerial work platforms
Lack of spare parts and technical support after the warranty period

Where It Works

Application Scenarios

Municipal departments maintaining traffic signals and street lighting in city centres
Telecom companies installing and repairing overhead fiber and power lines
Utility crews working on overhead distribution lines and transformer stations
Landscape contractors pruning tall trees and trimming branches near power lines
Highway and road maintenance teams installing and cleaning signboards and warning signs
Industrial parks with elevated access needs for inspection and repair of overhead structures

Engineering

Technical Features

20 meter hydraulic telescopic boom with 360 degree slewing and 9 meter maximum working range
Elevating platform rated for 200 kg with dimensions 1080 x 610 x 1100 mm
Max hoisting capacity of 1000 kg at 11.5 meter height
Platform can rotate 90 degrees left and right for access to side work zones
Four adjustable H-type outriggers and front support for ground stability
Three operating modes: wireless remote, wired control, and handle operation
Computer intelligent control with automatic range limit and danger alarm
Relief valves, balance valves, double-way hydraulic locks, and motor emergency system for safety
4HK1-TCG40 EURO-4 diesel engine with 160 HP and 190 HP output, 5193 ml displacement
6-speed manual gearbox with 4x2 traction system and 95 km/h maximum speed
Leaf spring suspension with 8/10+6 configuration for smooth ride on rough roads

Specifications

Technical Data


Chassis	Sinotruk HOWO 4x2 left or right hand drive
Engine	4HK1-TCG40, 160 HP, EURO-4
Gearbox	6 shift manual
Overall Size	8930 x 2300 x 3190 mm
Total Mass	15000 kg
Payload	12000 kg
Wheelbase	4475 mm
Front/Rear Suspension	1110 / 2345 mm
Engine Displacement	5193 ml
Max Speed	95 km/h
Tire Specification	8.25R16
Max Working Height	20 m
Max Working Range	9 m
Rated Platform Load	200 kg
Platform Size	1080 x 610 x 1100 mm
Max Hoisting Capacity	1000 kg
Slewing Angle	360 degrees
Outrigger Type	H type, 4 adjustable
Operating Modes	Wireless, wired, handle
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Steel or reinforced fiberglass insulated platform for electrical safety
H-type adjustable outriggers made from high strength steel
Hydraulic cylinders and hoses rated for 25 MPa working pressure
Electrical wiring and control panels with IP65 protection rating
Rubber bushings and vibration dampers on chassis mounts

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and inspected for frame alignment and driveline integrity
Hydraulic boom and platform assembly begins on the subframe with alignment of pivot points
Outriggers and support legs are welded and tested for load capacity
Electrical and hydraulic systems are installed and pressure tested
Control system is programmed with safety limits and alarm thresholds
Platform is fitted with safety gates, handrails, and fall arrest points
Final inspection includes full range operation, stability test with load, and safety device verification
Truck is cleaned, painted in customer colour, and delivered with operation manual and spare parts list

Testing

Quality Control

Every unit is 100 percent tested before delivery
Hydraulic system tested at 1.5 times working pressure for leaks and response
Safety devices tested under simulated failure conditions
Platform load tested to 1.5 times rated capacity
Stability tested with outriggers extended and platform at maximum height
Photos and videos of the finished truck sent to buyer before balance payment
In-house testing available for pressure vessel and structural integrity checks

Build to Order

Customization Options

Platform material can be steel or reinforced fiberglass with insulation
Left or right hand drive chassis to match local traffic rules
Platform size and configuration adjusted to customer work requirements
Operating mode selection: wireless remote, wired, or handle control
Safety device package tailored to site hazard level
Tank colour and logo applied free of charge
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

15 meter cherry picker on a light truck chassis	Lower reach and load capacity but better maneuverability in narrow urban streets
Fixed tower crane with mobile base	Higher capacity and stability but requires setup time and cannot move between sites
Imported brand aerial lift with 20 meter boom	Higher initial cost and longer lead time, but this unit offers 15 years of spare parts support

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local traffic regulations
Extend outriggers fully and level the truck before raising the platform
Do not exceed 200 kg platform load or 1000 kg hoisting capacity
Use the wireless remote only in open areas with clear line of sight to the platform
Perform daily checks on hydraulic fluid level, safety locks, and control response
Store the platform in the lowered position and retract the boom after use

Buyer Questions About This Truck

How long is the lead time for this man lift truck?

Generally 30 days after the advance payment is received. The exact time depends on chassis availability and equipment configuration.

Can the platform be insulated fiberglass instead of steel?

Yes. The standard platform is steel. Insulated fiberglass is available for electrical safety and is specified at order stage.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage as it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts for two years. We provide 15 years of spare parts and technical support.

Can the operating modes be changed?

Yes. The truck can be configured with wireless remote, wired control, or handle operation. Choose the mode that best suits your work environment at order stage.
