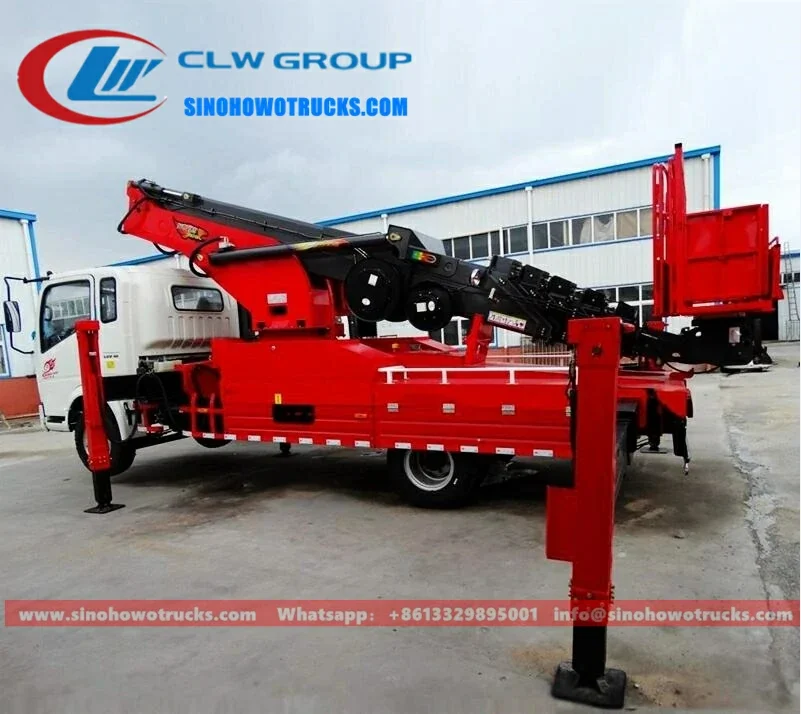

Sinotruk HOWO 30 meter telescopic boom lift truck in urban work environment with extended boom and insulated basket

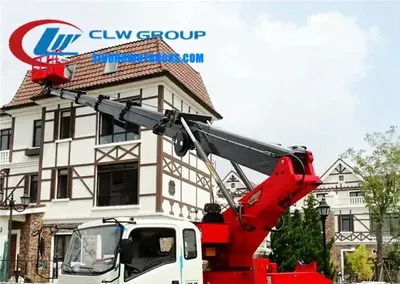

Side view of the HOWO aerial lift truck showing the H-type outriggers and hydraulic cylinders

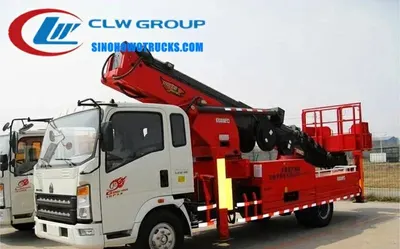

Front view of the HOWO boom lift truck with 1880 cabin and work basket at mid-height

Sinotruk Howo 30meters telescopic boom lift truck Honduras

Name: Sinotruk Howo 30meters telescopic boom lift truck Honduras
Brand: Sinotruk HOWO

The Sinotruk HOWO 30 meter telescopic boom lift truck is a 4x2 chassis mounted aerial work platform built for high-level maintenance and installation tasks in urban and industrial environments. It is designed for traffic light and street light maintenance, signboard installation and cleaning, tree trimming, and electrical line inspection. The 30 meter telescopic boom provides vertical reach and horizontal outreach to access elevated work zones without requiring additional scaffolding or ladders. The truck operates with a 160 HP diesel engine and 6-speed manual gearbox, and features a 360 degree slewing platform with a 1000 kg maximum lift capacity and a 200 kg rated platform load. The work basket can be made from steel or reinforced fiberglass with insulation for electrical safety, and includes a 90 degree left and right rotation for access in tight spaces.

Request A Quote Email Specification

Key Benefits

30 meter telescopic boom provides reach for high-level work without external support
360 degree slewing platform with 90 degree left and right rotation improves access in confined areas
1000 kg maximum lift capacity supports two workers and tools at height
Three operating modes: wireless remote, wired control, and handle operation for flexibility in different environments
Four adjustable H-type outriggers and front support improve stability on uneven ground
Electro-hydraulic control with computer intelligent management and automatic safety alarms
160 HP engine and 6-speed manual gearbox ensure reliable performance over long operating cycles
19 years of spare parts and technical support availability reduces downtime
Insulated fiberglass basket option available for electrical safety in live line work

Buyer Profile

Who It Is for

Municipal public works departments managing street and traffic infrastructure
Electric utility and telecom companies maintaining overhead networks
Highway and road maintenance contractors operating under tight schedules
Private landscaping and tree care firms working in urban zones
Industrial maintenance teams servicing tall equipment and storage facilities
Contractors supplying turnkey aerial access solutions to government and private clients

Operating Problems

Problems It Solves

Lack of access to high-level work zones without expensive or time-consuming scaffolding
Inadequate reach from standard ladders or cherry pickers in dense urban or industrial settings
Safety risks from unstable platforms or insufficient load capacity on older equipment
Limited operational flexibility due to single mode control systems
Long lead times for imported aerial platforms with no local support
Inability to operate safely near live electrical lines without insulated baskets

Where It Works

Application Scenarios

Municipal departments maintaining street lighting and traffic control systems in urban and rural areas
Utility companies installing and repairing overhead power and telecom lines
Highway and road maintenance crews replacing signage and signal equipment
Landscaping and tree care teams pruning and removing trees near power lines
Construction sites requiring temporary access to elevated work points without scaffolding
Industrial facilities conducting inspection and maintenance on tall structures and storage tanks

Engineering

Technical Features

30 meter telescopic boom with three or two arm hydraulic cylinders for smooth extension
360 degree slewing platform with 90 degree left and right rotation for access in tight spaces
Electro-hydraulic operation with computer intelligent control and automatic safety limits
Three operating modes: wireless remote, wired control, and handle operation
Automatic alarm system for overloading, tilt, and unsafe working conditions
H-type outriggers with four adjustable legs and front support for ground stability
Work basket size 1200 x 600 x 1000 mm with 200 kg rated platform load
Maximum lift capacity 1000 kg at full extension and 30 meter height
Insulated fiberglass basket available for electrical safety in live line environments
160 HP diesel engine with 6-speed manual transmission and hydraulic power steering
Fuel tank capacity 120 L with 7.00R16 or 8.25R20/9.00R20 tyres
Cabin options: 1880 or 2080 with optional berth for extended operations

Specifications

Technical Data


Chassis	Sinotruk HOWO 4x2 left or right hand drive
Engine	160 HP diesel
Gearbox	6-speed manual
Overall Size	9000 x 2500 x 3400 mm
Working Height	30 meters
Max Lift Capacity	1000 kg
Rated Platform Load	200 kg
Slewing Angle	360 degrees
Outriggers	H-type, four adjustable legs
Operating Mode	Electro-hydraulic with wireless, wired, and handle control
Work Basket Material	Steel or reinforced fiberglass (insulated option available)
Basket Size	1200 x 600 x 1000 mm
Cabin Type	1880 or 2080 with optional berth
Fuel Tank Capacity	120 L
Tyres	7.00R16 or 8.25R20/9.00R20
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Reinforced fiberglass basket with electrical insulation for live line work
Steel work basket with anti-slip floor and handrails
H-type outrigger legs with adjustable feet and steel mounting brackets
Electro-hydraulic control system with sealed wiring and connectors
Cabin body made from galvanized steel with optional berth and insulation

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the boom and basket layout
Hydraulic cylinders and control valves are installed and pressure tested
Work basket is assembled from steel or fiberglass and fitted with safety rails and entry points
Outriggers and front support are mounted and calibrated for stability
Electro-hydraulic control system is wired and tested with all safety interlocks
Cabin is installed and connected to the chassis with electrical and hydraulic lines
Final assembly includes paint, signage, and safety device integration
All systems are tested on the factory apron including boom extension, slewing, and safety alarms

Testing

Quality Control

Every truck is 100 percent tested before delivery
Hydraulic systems undergo pressure and leak testing
Safety devices including relief valves, balance valves, and double-way locks are verified
Computer intelligent control system tested for automatic range limits and alarms
Photos and videos of the finished truck are sent to the buyer before balance payment
In-house testing available for pressure vessel and structural integrity checks

Build to Order

Customization Options

Left or right hand drive chassis to match local traffic regulations
Work basket material changed from steel to reinforced fiberglass with insulation
Cabin size selected as 1880 or 2080 with optional berth
Tank colour and logo applied free of charge
Operating mode configuration: wireless, wired, or handle control
Custom safety device integration based on site risk assessment
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

20 meter telescopic boom with 800 kg capacity	Lower reach and load capacity but better maneuverability in narrow urban streets
Articulated boom lift	Better in tight spaces but less stable at full height and more complex to operate
Scaffold tower with crane lift	Higher initial cost and longer setup time but no vehicle dependency

Operating Notes

Use Guide

Confirm left or right hand drive and cabin size at order stage as they cannot be changed later
Inspect outriggers and ground conditions before extending the boom to prevent tipping
Use the insulated basket only when working near live electrical conductors
Engage the safety alarm system and ensure all limits are active before operation
Do not exceed 200 kg on the platform or 1000 kg total lift capacity at full extension
Perform daily checks on hydraulic fluid, tyre pressure, and safety devices before use

Buyer Questions About This Truck

How long is the lead time for this boom lift truck?

Generally 30 days after the advance payment is received. The exact time depends on chassis availability and the selected configuration.

Can the work basket be insulated for electrical work?

Yes. The standard basket is steel. Reinforced fiberglass with insulation is available on request for live line work.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts for two years. We provide 19 years of spare parts and technical support, and overseas engineers make regular return visits.

Can the operating modes be changed?

Yes. The truck can be configured with wireless, wired, or handle control. All three modes are available at no extra cost.
