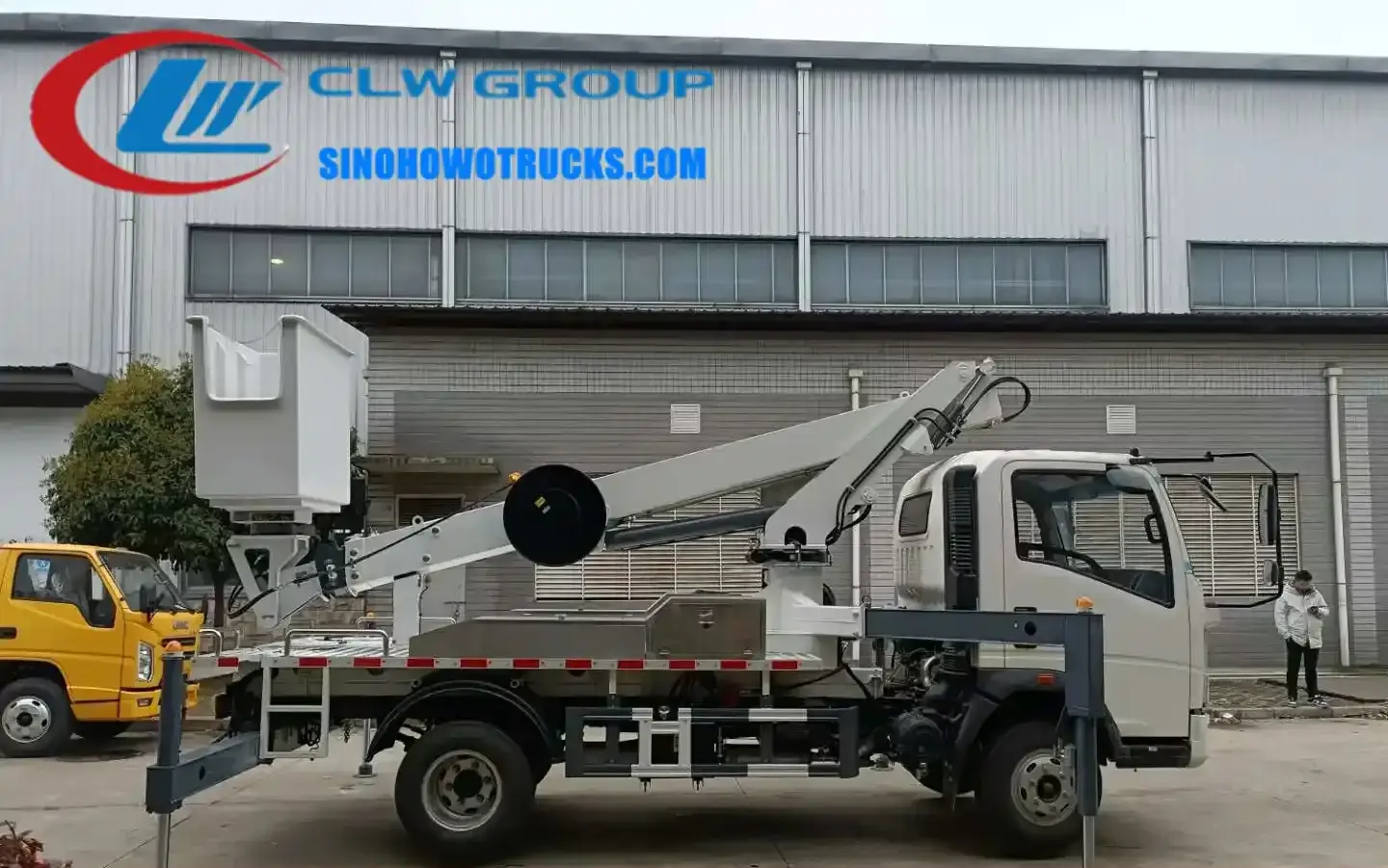

Sinotruk HOWO 23 meter man lift boom truck in urban setting with extended telescopic boom and working cage

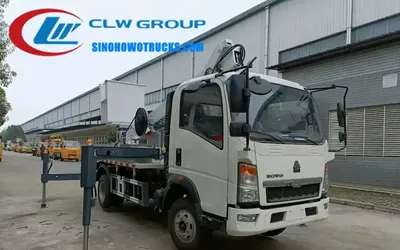

Side view of the HOWO aerial lift truck showing hydraulic outriggers and 6 tires

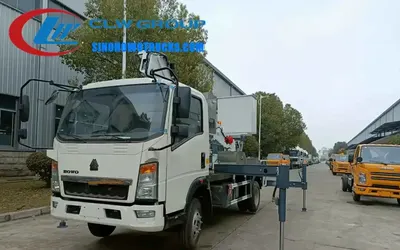

Working cage of the HOWO boom truck with safety rails and operator inside

Sinotruk Howo 23meters man lift boom truck Dominican Republic

Name: Sinotruk Howo 23meters man lift boom truck Dominican Republic
Brand: Sinotruk HOWO

The Sinotruk HOWO 23 meter man lift boom truck is a 4x2 chassis mounted aerial work platform built for high-level maintenance and installation tasks in urban and industrial environments. It is designed for traffic light and street light servicing, signboard installation and removal, tree trimming, and overhead utility work. The 23 meter telescopic boom provides reach beyond standard access points, allowing safe operation from ground level without requiring scaffolding or additional support structures.

Request A Quote Email Specification

Key Benefits

23 meter telescopic boom with 360 degree rotation enables access to complex overhead work zones
90 degree left and right rotation of the working cage allows precise positioning in tight spaces
Four H-type hydraulic outriggers and front support improve stability on uneven ground and during lifting
120 HP Sinotruk CY4102 diesel engine ensures reliable performance with low maintenance needs
Wireless remote control system allows operation from ground level or within the basket
Safety features include relief valves, balance valves, double-way hydraulic locks, and emergency motor system
15 years of spare parts and technical support availability ensure long-term serviceability
Lift height customizable between 12 and 22 meters to match site-specific requirements

Buyer Profile

Who It Is for

Municipal public works and transportation departments managing street infrastructure
Electricity and telecom utility operators with field maintenance crews
Highway and road maintenance contractors working on signage and lighting systems
Private landscaping and tree care companies operating in urban zones
Industrial facility maintenance teams requiring safe access to elevated equipment
Airport and port authority maintenance divisions with aerial access needs

Operating Problems

Problems It Solves

Lack of access to overhead work points without erecting temporary scaffolding or using cranes
Inadequate reach from standard ladders or cherry pickers on uneven or confined ground
Safety risks from unstable platforms during high wind or uneven terrain operations
Long lead times for imported aerial platforms with limited local support
High operating costs from frequent maintenance and short service life of foreign-made units
Inflexible boom configurations that cannot adapt to tight urban workspaces

Where It Works

Application Scenarios

Municipal departments maintaining traffic signals and street lighting across urban and rural roads
Utility companies installing and repairing overhead power and communication lines
Roadside signboard contractors setting and cleaning large highway signage
Landscaping firms trimming tall trees and maintaining green infrastructure in public parks
Industrial sites performing maintenance on overhead cranes, ductwork, and ventilation systems
Airport and port facilities servicing high-level lighting and safety equipment

Engineering

Technical Features

23 meter hydraulic telescopic boom with full 360 degree rotation and 90 degree cage rotation
4 H-type hydraulic outriggers with synchronized lifting for stability during operation
Dual operating systems: one in the basket and one on the turntable for safe control
Maximum lifting capacity of 200 kg at the hook and 200 kg in the work basket
Wireless remote control system for ground-based operation and improved safety
Imported reversing valve and hydraulic cylinder for smooth and responsive movement
Front V rear H-shaped outrigger configuration for adaptable performance on varied terrain
Engine: CY4102, 120 HP, Euro 3 emission standard, diesel fuel type
6-speed manual gearbox with 4x2 drive configuration and 7.50R16 tires
Maximum speed of 95 km/h, wheelbase 3800 mm, total mass 8000 kg

Specifications

Technical Data


Product Name	Aerial Platform Truck
Chassis Model	ZZ1040
Lift Height	12 to 22 meters (customizable)
Maximum Boom Length	23 meters
Total Mass	8000 kg
Engine	CY4102, 120 HP
Engine Fuel Type	Diesel
Emission Standard	Euro 3
Gearbox	6-speed manual
Drive Configuration	4x2
Wheelbase	3800 mm
Front Track	1910 mm
Rear Track	1940 mm
Overall Dimensions	6500 x 2350 x 3400 mm
Number of Tires	6
Tire Size	7.50R16
Maximum Speed	95 km/h
Rated Load Mass	200 kg
Working Cage Material	Steel structure or reinforced fiberglass (insulated option)
Outriggers	4 H-type hydraulic, synchronized lift
Remote Control	Wireless available
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Steel structure for the working cage with anti-corrosion coating
Reinforced fiberglass available for insulated cage applications
H-type hydraulic outriggers made from high-strength steel
Telescopic boom constructed from alloy steel with welded joints
Hydraulic system components including imported reversing valves and cylinders
Rubber seals and gaskets used in hydraulic circuits for leak prevention

How It Is Built

Manufacturing Process

Chassis ZZ1040 is received and inspected for alignment and frame integrity
Telescopic boom is fabricated from alloy steel and tested for straightness and weld quality
Working cage is assembled from steel or fiberglass with safety railings and anchoring points
Hydraulic system is installed with imported reversing valves and cylinders
Outriggers are mounted and tested for synchronized lifting and locking
Control systems including wireless remote and in-bucket interface are integrated
Full system test conducted on factory apron including boom extension, rotation, and safety lockout
Final inspection and documentation before shipment, including photos and videos

Testing

Quality Control

All hydraulic components tested under pressure before installation
Boom and cage structure inspected for weld integrity and dimensional accuracy
Safety systems tested including emergency stop, hydraulic locks, and overload protection
100 percent functional test before delivery with video and photo evidence provided
Compliance with GB7965 and other relevant national standards for aerial work platforms
In-house testing for hydraulic and electrical systems before final assembly

Build to Order

Customization Options

Lift height customizable from 12 to 22 meters based on site requirements
Working cage material available in steel or reinforced fiberglass (insulated version)
Left or right hand drive chassis to match local traffic regulations
Tank color and logo applied free of charge
Optional wireless remote control system and emergency motor system
Custom configuration of control panels and safety devices based on user needs

Comparison

How It Compares With the Alternatives

15 meter boom truck with 4x2 chassis	Lower reach but better maneuverability in narrow city streets and tighter parking spaces
Electric aerial lift	No need for fuel but limited by battery life and charging infrastructure, not suitable for long daily operations
Used imported boom truck	Higher upfront cost but lower long-term maintenance and spare parts availability

Operating Notes

Use Guide

Confirm left or right hand drive and chassis configuration before placing the order
Ensure outriggers are fully extended and locked before raising the boom
Do not exceed 200 kg in the work basket or 200 kg at the hook during operation
Use wireless remote only when the operator is in the basket and the system is secured
Perform daily checks on hydraulic fluid levels and tire pressure before use
Store the truck in a dry, covered area to prevent corrosion and protect electrical systems

Buyer Questions About This Truck

What is the lead time for this man lift truck?

Generally 30 days after the advance payment is received. The exact time depends on chassis availability and customization level.

Can the lift height be adjusted beyond 22 meters?

The standard range is 12 to 22 meters. Customization up to 23 meters is available as per the model specification.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before the balance payment.

Do you supply left or right hand drive?

Yes. The chassis is ordered in left or right hand drive to match local traffic rules. Confirm at order stage as it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts for two years. We provide 15 years of spare parts and technical support, including overseas engineer visits.

Can the working cage be insulated?

Yes. The cage can be made from reinforced fiberglass for electrical insulation. Specify this at order stage.
