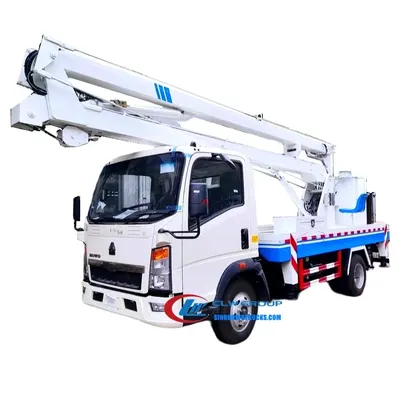

The Sinotruk HOWO 16 meter boom lift truck is a 4x2 chassis mounted aerial platform designed for high-level maintenance and installation tasks in urban and rural infrastructure. Built on a Sinotruk HOWO chassis with a 116 HP diesel engine and 6-speed manual gearbox, it supports a 16 meter telescopic boom with a rotating work basket. The truck is used by municipal utilities, construction crews, and maintenance contractors for tasks requiring access to elevated points without scaffolding or cranes. It operates in environments with limited space and uneven ground, where stability and precise positioning are critical.
| Chassis | Sinotruk HOWO 4x2 left hand drive |
|---|---|
| Engine | CY4102, 116 HP, 4-stroke direct injection, turbo-charged, inter-cooled |
| Gearbox | WLY6T46, 6 forwards, 1 reverse |
| Boom Length | 16 meters telescopic hydraulic |

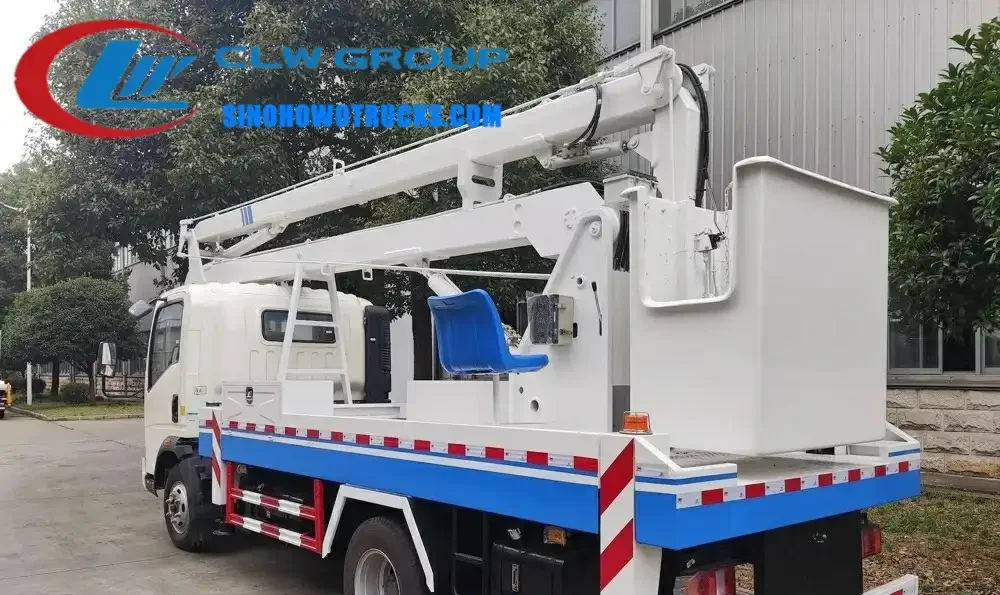

| Work Basket | Steel or reinforced fiberglass, 90 degree rotation |
| Operating Modes | Wireless, wired, handle control |
| Curb Weight | 4300 kg |
| Optimum Payload | 3000-5000 kg |
| Max Driving Speed | 95 km/h |
| Wheelbase | 3360 mm |
| Approach Angle | 20 degrees |
| Departure Angle | 25 degrees |
| Tire Size | 700R16, 6 pieces + 1 spare |
| Overall Size | 5995 x 2150 x 2450 mm |
| Lead Time | 30 days |
| Shipping Port | China main port |
| Payment | T/T |
| Emission Standard | Euro 3 |
| Fuel Type | Diesel |
| Cabin Seats | Three, can be overturned |
| Cabin A/C | No |
| 20 meter boom lift with 4x4 chassis | Greater reach but heavier and less maneuverable in tight urban areas |
|---|---|
| Truck-mounted crane with fixed jib | Better lifting capacity but less precise positioning and no rotating basket |
| Scaffold tower with mobile base | Slower setup and less mobility, requires more ground space and preparation |
Generally 30 days after the advance payment is received. The exact delivery date depends on chassis availability and customization options.
Yes. The standard basket is steel, but reinforced fiberglass with insulation is available on request.
T/T with 30 percent deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before the balance payment.
Yes. The chassis can be ordered in left or right hand drive to match local traffic rules. Confirm this at order stage.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year. Core components are supported for 15 years with spare parts and technical assistance.
Yes. The system supports all three modes—wireless, wired, and handle—by default. Additional configurations can be added during service visits.
Send us your destination port and we will quote price, lead time and freight.
