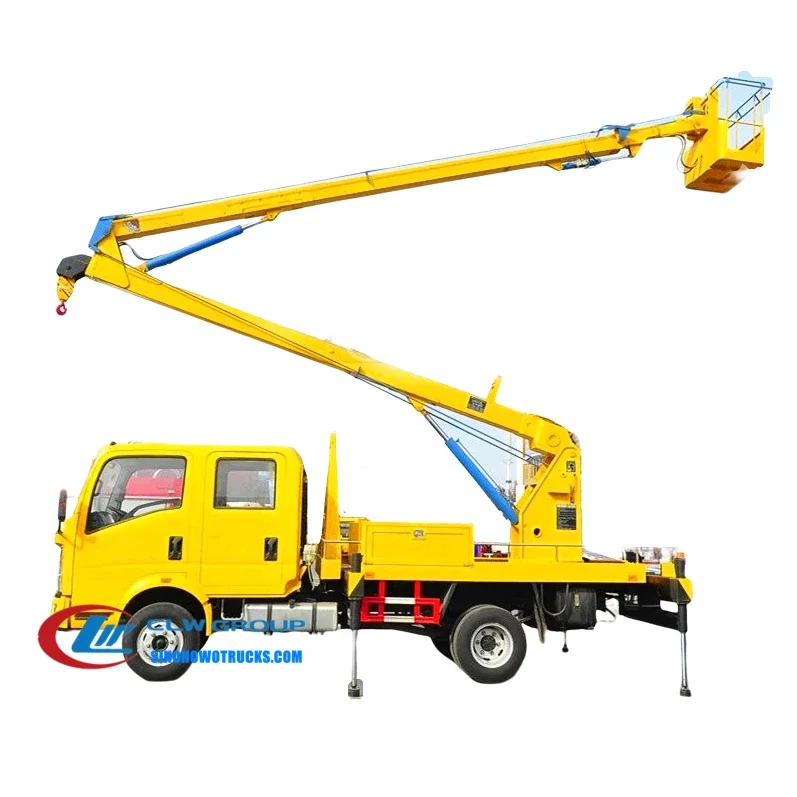

Sinotruk HOWO 18m truck with boom lift in urban maintenance setting with work basket at full height

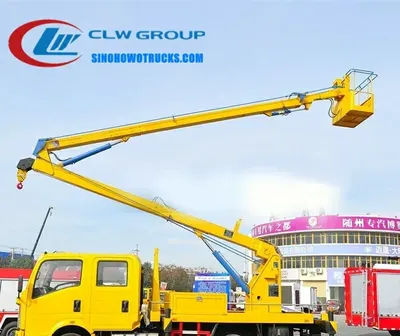

Side view of the HOWO aerial platform truck showing three-section folding arm and H-type outriggers

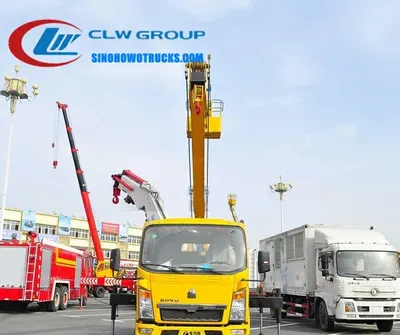

Work basket of the HOWO boom lift truck with operator inside, positioned at 18 meters height

Sinotruk Howo 18m truck with boom lift for sale Malaysia

Name: Sinotruk Howo 18m truck with boom lift for sale Malaysia
Brand: Sinotruk HOWO

The Sinotruk HOWO 18m truck with boom lift is a 4x2 chassis mounted aerial platform designed for high-level maintenance tasks such as traffic light and street light servicing, signboard installation, and tree trimming. Built on a ZZ1047 chassis with a 120 HP YN4102QBZL diesel engine, it reaches a maximum working height of 18 meters with a 7.5 meter outreach. The three-section folding arm hydraulic lift allows precise positioning in urban and confined spaces. It is supplied to municipal utilities, construction contractors, and infrastructure maintenance fleets in Malaysia and other export markets.

Request A Quote Email Specification

Key Benefits

18 meter maximum working height with 7.5 meter outreach for access to high structures
Three-section folding arm provides compact storage and wide operational range
H-type outriggers with independent telescoping and linking improve stability on uneven ground
Double station operation from turntable and work basket allows flexible control
Interlocked leg and boom system prevents unsafe operation and enhances safety
Wireless remote control system available for operator convenience and safety
120 HP Sinotruk engine and gearbox designed for long service life without overhaul up to 500,000 km
19 years of spare parts and technical support availability ensure long-term reliability

Buyer Profile

Who It Is for

Municipal public works departments responsible for street and traffic infrastructure
Utility companies managing power, telecom, and lighting networks
Highway and road maintenance contractors operating in Malaysia and Southeast Asia
Landscaping and tree care service providers with mobile work platforms
Industrial park and airport maintenance teams needing reliable aerial access
Contractors supplying turnkey maintenance solutions to government and private clients

Operating Problems

Problems It Solves

Lack of access to high-level structures without expensive or time-consuming scaffolding
Inadequate reach of standard ladders or cherry pickers on complex urban sites
Safety risks from unstable or poorly supported work platforms during high wind or uneven ground operations
Long lead times for imported aerial lifts with limited local support and spare parts
High maintenance costs and downtime due to unreliable hydraulic systems or outdated components
Inflexible operation in tight urban spaces due to large turning radius or poor maneuverability

Where It Works

Application Scenarios

Municipal departments maintaining traffic signals and street lighting across urban and rural areas
Road maintenance crews installing and repairing signage on highways and expressways
Utility companies servicing overhead power lines and communication cables
Landscaping teams pruning and maintaining tall trees in public parks and urban green spaces
Construction sites requiring access to elevated work zones without scaffolding
Airport and industrial park facilities managing high-level equipment and signage

Engineering

Technical Features

Three-section folding arm hydraulic lift with maximum working height of 18 meters
Maximum outreach of 7.5 meters at full height for precise positioning
H-type outriggers with independent telescoping and linking for enhanced stability
Interlocked leg and boom system prevents unsafe operation and reduces risk of tipping
Double station control from turntable and work basket for operator flexibility
Wireless remote control system available for safe operation from ground level
Relief valves, balance valves, double-way hydraulic locks, and motor emergency system for safety
Hydraulic system with interlocking between upper and lower vehicle, overload protection, and cylinder locking

Specifications

Technical Data


Chassis Brand	Sinotruk HOWO
Chassis Model	ZZ1047
Lift Height	18 meters
Maximum Working Range	7.5 meters
Total Mass	7305 kg
Engine Horsepower	120 HP
Engine Name	YN4102QBZL
Emission Standards	Euro 3
Dimensions	7300 x 2000 x 3100 mm
Fuel Type	Diesel
Number of Tires	6
Tire Specifications	7.50R16
Wheelbase	3815 mm
Maximum Speed	95 km/h
Front Track	1506 mm
Rear Track	1530 mm
Engine Type	Diesel
Gearbox	6-speed manual
Drive Configuration	4x2
Rated Load Mass	7110 kg
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Steel structure work basket standard, reinforced fiberglass available for insulated applications
H-type outriggers made from high-strength steel with anti-slip pads
Three-section folding arm constructed from alloy steel with corrosion-resistant coating
Hydraulic system using domestic and imported reversing valves and cylinders for stable operation
Chassis frame from Sinotruk HOWO ZZ1047 with durable steel construction

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and inspected for alignment and frame integrity
Three-section folding arm is assembled and mounted to the subframe with precision alignment
Hydraulic system components including valves, cylinders, and hoses are installed and pressure tested
Work basket is fabricated from steel or fiberglass and attached to the boom with safety latches
Outriggers are fitted and tested for independent and linked extension with locking mechanisms
Control system including turntable and remote wireless operation is calibrated and tested
Final inspection includes full lift cycle, stability test on uneven ground, and safety interlock verification
Vehicle is cleaned, painted in customer colour, and prepared for shipment with test records

Testing

Quality Control

Every unit undergoes 100 percent testing before delivery
Hydraulic system tested under full load and safety interlocks verified
Outriggers and boom operation tested on simulated uneven terrain
Photos and videos of the finished truck sent to the buyer before balance payment
Safety devices including relief valves and emergency motor systems are functionally tested
Compliance with national motor vehicle fifth stage emission standards (country V) confirmed

Build to Order

Customization Options

Lift height available from 8 to 45 meters, customized to project requirements
Work basket material can be steel or reinforced fiberglass with insulation for electrical safety
Left or right hand drive chassis to match local traffic regulations
Tank colour and logo applied free of charge
Wireless remote control system available as an option
Safety device package tailored to customer site conditions and risk assessment

Comparison

How It Compares With the Alternatives

8m boom lift with 2000 kg capacity	Lower reach and load but better for tight urban spaces and lower transport cost
Fixed platform crane	Higher lifting capacity but no mobility and limited access to confined areas
Imported brand with 2-year spare parts guarantee	Higher upfront cost and longer lead time, but better brand recognition and service network

Operating Notes

Use Guide

Confirm left or right hand drive and local traffic regulations before ordering
Inspect outriggers and ground surface before extending the boom to prevent tipping
Use the interlock system to ensure legs are fully deployed before lifting
Operate the boom within the rated load and outreach limits to avoid structural stress
Perform daily checks on hydraulic fluid levels, hose integrity, and safety devices
Free operator training available at the factory before shipment

Buyer Questions About This Truck

What is the lead time for this boom lift truck?

Generally 30 days after the advance payment is received. The exact time depends on chassis availability and customization options.

Can the work basket be made of fiberglass?

Yes. The standard basket is steel. Reinforced fiberglass with insulation is available on request for electrical safety.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply left or right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your local traffic rules. Confirm this at order stage.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts for two years. We provide 19 years of spare parts and technical support with overseas engineer visits.

Can the lift height be changed from 18m?

Yes. The lift height is customizable from 8 to 45 meters. Specify your required height and outreach at order stage.
