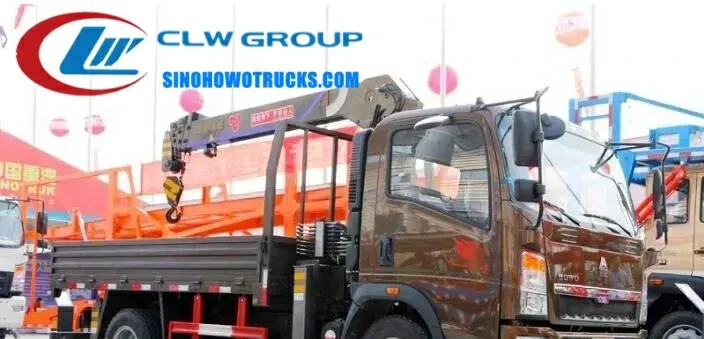

Sinotruk HOWO 3 ton small truck crane in Cote d’Ivoire with telescopic boom extended and cargo box loaded

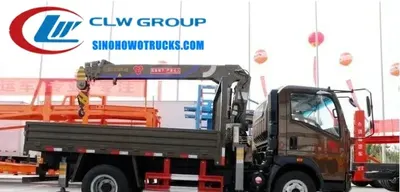

Side view of the HOWO truck crane showing the 360-degree rotating crane and compact design

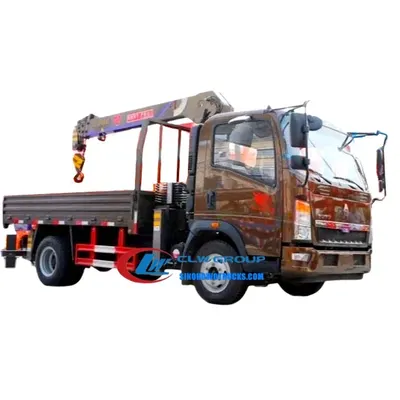

Rear view of the truck crane with the boom folded and the cargo box with side panels

Sinotruk Howo 3 ton small truck crane Cote d’Ivoire

Name: Sinotruk Howo 3 ton small truck crane Cote d’Ivoire
Brand: Sinotruk HOWO

The Sinotruk HOWO 3 ton small truck crane is a 4x2 chassis vehicle built on a 140HP diesel engine with a 6-speed manual gearbox, designed for urban and rural construction, logistics, and maintenance operations in Cote d’Ivoire and other emerging markets. It carries a 4-ton cargo box and integrates a truck-mounted crane capable of 360-degree rotation, lifting up to 3 tons at maximum outreach. The crane is suitable for loading and unloading freight without requiring a separate crane, reducing downtime and labour costs on site. It is used by contractors, municipal services, and equipment rental companies that need a compact, reliable lifting solution for tight access roads and irregular terrain.

Request A Quote Email Specification

Key Benefits

4x2 HOWO chassis provides stable handling and strong traction on unpaved and uneven roads
360-degree rotating crane with single cylinder synchronization allows precise and efficient lifting
Telescopic or knuckle boom crane options allow adaptation to different load types and site conditions
High-strength steel structure resists deformation under repeated lifting cycles
Float three-point bridge design reduces stress on the chassis during travel
Anti-slewing impulse equipment improves stability and safety during crane operation
Self-designed slewing machine delivers consistent drive force across varied work environments
Radio remote control and top seat control available as optional fittings for improved operator visibility and control

Buyer Profile

Who It Is for

Construction contractors operating in Cote d’Ivoire and West Africa with limited access to heavy lifting equipment
Municipal works departments managing street repairs and utility installations
Equipment rental fleets serving small to medium-sized projects across West Africa
Telecom and power line maintenance contractors needing mobile lifting for pole handling
Agricultural and livestock transport operators moving heavy feed or equipment on farm roads
Logistics companies handling bulky or irregularly shaped freight in urban and rural zones

Operating Problems

Problems It Solves

Lack of access to mobile cranes due to high rental costs or long lead times
Inability to transport and deploy cranes on unpaved or narrow roads common in rural areas
Need for a single vehicle that can carry cargo and perform lifting tasks without extra equipment
High maintenance costs and downtime from imported cranes with limited local support
Inflexible crane operation due to fixed boom or limited rotation in older truck-mounted models
Safety risks from slewing instability or poor load control during lifting in tight spaces

Where It Works

Application Scenarios

Urban construction sites with limited space and narrow access roads
Rural infrastructure projects where road quality is poor and crane transport is difficult
Municipal utility maintenance teams installing or replacing street lights and transformers
Equipment rental companies supplying mobile lifting to small contractors and farms
Port and warehouse loading operations requiring quick turnaround without dedicated crane hire
Telecom and power line maintenance crews deploying poles and transformers in remote areas

Engineering

Technical Features

4x2 HOWO chassis with 140HP diesel engine and 6-speed manual gearbox
Single cylinder synchronization guy cable technology for smooth and balanced boom movement
Pentagon and hexagon boom design with symmetrical center for higher anti-bending strength
Compact hinge point layout reduces overall footprint and improves clearance
Float three-point bridge structure minimizes chassis stress during transit
Anti-slewing impulse system enhances vehicle stability during crane operation
Integral lifting winch improves hydraulic system efficiency and extends service life
Over-wind alarm fitted to prevent boom overextension and potential damage
Optional radio remote control and top seat control for improved operator positioning

Specifications

Technical Data


Model	ZZ1047D3414C143
Chassis	4x2 Sinotruk HOWO left or right hand drive
Engine	JE493ZLQ, 4-cylinder diesel, turbocharged intercooled, 75kW, 102ps, 235N.m, 2771cc, Euro-2
Transmission	WLY6T100, Manual 6F+1R
Axle Base	5825+1350 mm
Overall Dimensions	5995 x 2150 x 3250 mm
Cargo Box Inner Size	3250 x 2050 x 400 mm
Cargo Box Floor Thickness	3 mm
Cargo Box Side Thickness	1.5 mm
Cabin	1880 mm single cab, 2 seats, with A/C
Front Axle	2.0 t, drum
Rear Axle	3.5 t, drum
Frame	Single-layer 170 mm
Suspension	Leaf (F/R)
Crane Capacity	3 tons at maximum outreach
Crane Type	Telescopic or knuckle boom, optional
Lifting Winch	Integral design, improved efficiency
Boom Rotation	360 degrees
Lead Time	20 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

High-strength steel used in all structural components of the crane and chassis
Aluminium alloy used in crane control panels and access doors where weight reduction is needed
Rubber seals and gaskets used in boom joints and door hinges for weather resistance

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and inspected for frame alignment and axle spacing
Crane boom and slewing mechanism are assembled and tested for smooth rotation and load balance
Single cylinder synchronization system is calibrated and tested under load
Float three-point bridge structure is welded and aligned to reduce chassis stress
Anti-slewing impulse and over-wind alarm systems are installed and verified
Cabin is fitted with A/C and seating, and the vehicle is painted to customer specification
Final inspection includes crane operation, load testing, and safety system checks before shipment

Testing

Quality Control

All vehicles undergo 100 percent testing before delivery
Crane systems are tested under full load and extreme rotation angles
Pressure and leak tests performed on hydraulic lines and boom joints
Photos and videos of the finished truck are sent to the buyer before balance payment
In-house testing for structural integrity and safety compliance with local standards

Build to Order

Customization Options

Left or right hand drive chassis to match local traffic rules
Telescopic or knuckle boom crane selected based on lifting requirements
Radio remote control or top seat control added as optional fittings
Cargo box color and logo applied free of charge
Paint finish and livery customized to customer branding or operational needs
Manufacture to customer technical drawings and specifications

Comparison

How It Compares With the Alternatives

6x4 truck crane with 5 ton capacity	Higher lifting capacity but less maneuverable in narrow urban streets and higher fuel consumption
Mobile crane with separate transport vehicle	Higher initial cost and longer setup time, but better reach and stability for heavy lifts
Used truck crane from international auction	Lower upfront cost but higher risk of mechanical failure and no local support or warranty

Operating Notes

Use Guide

Confirm left or right hand drive at order stage as it cannot be changed after production
Use the radio remote control or top seat control for best visibility during lifting operations
Do not exceed 3 tons at maximum outreach; check the load chart before each lift
Engage the anti-slewing impulse system before rotating the boom under load
Inspect hydraulic hoses and boom joints before each shift for leaks or wear
Free operator training is available at the factory before shipment

Buyer Questions About This Truck

What is the lead time for this truck crane?

Generally 20 days after the advance payment is received. The exact date depends on crane type and component availability.

Can the crane be telescopic or knuckle boom?

Yes. Both telescopic and knuckle boom options are available. Specify your preference at order stage.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply left or right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your local traffic regulations. Confirm this at order stage.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the crane be fitted with radio remote control?

Yes. Radio remote control is available as an optional fitment. Specify this when placing the order.
