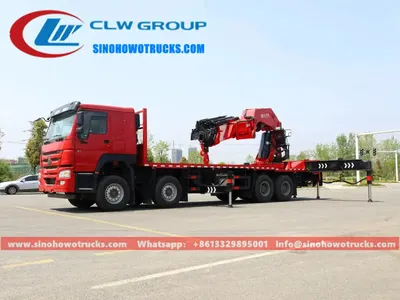

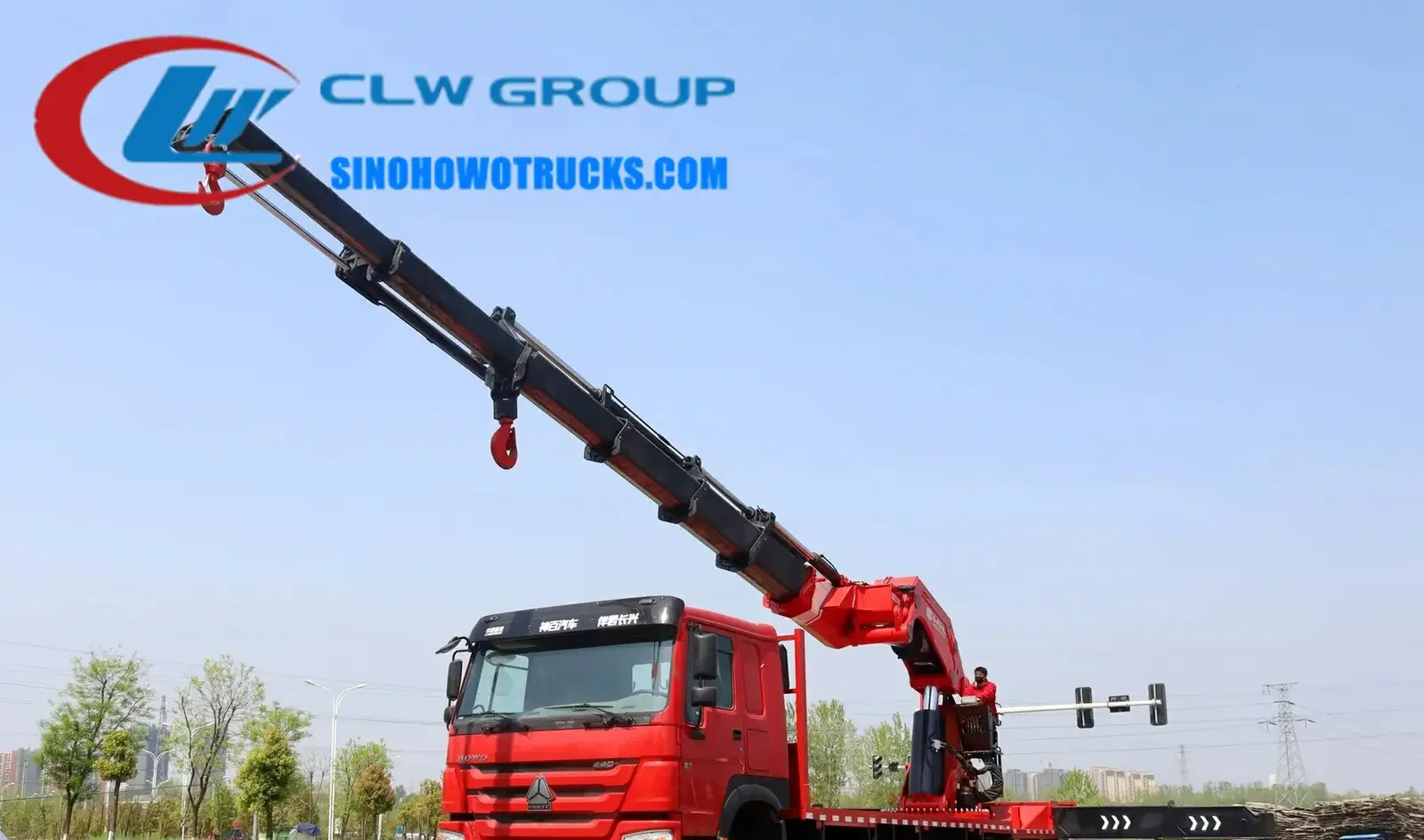

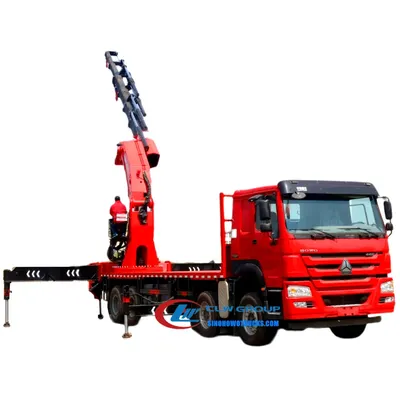

The Sinotruk HOWO 110 ton construction crane truck is a 8x4 heavy-duty truck mounted crane built on a ZZ1317N4667W chassis with a 371 HP diesel engine and 10 speed manual gearbox. It is designed for construction sites, ports, and industrial facilities that require a self-loading crane capable of lifting and transporting heavy materials without relying on external lifting equipment. The crane has a 110 ton capacity and can rotate 360 degrees, extend and raise loads with precision, making it ideal for repetitive loading and unloading tasks in remote or poorly equipped locations.
| Chassis | Sinotruk HOWO ZZ1317N4667W, 8x4 left hand drive |
|---|---|
| Engine | 371 HP diesel |
| Gearbox | 10 speed forward, 2 reverse, HW19710 |
| Overall Size | 12500 x 2550 x 4050 mm |
| Kerb Weight | 21500 kg |
| Gross Weight | 41,000 kg |
| Wheelbase | 1800 + 4600 + 1350 mm |
| Front Axle | SINOTRUK HF7 |
| Rear Axle | SINOTRUK ST16 Heavy reduction drive axle |
| Crane Capacity | 110 tons |
| Crane Type | Telescopic or knuckle boom, optional |
| Lifting Winch | Integral design, improved efficiency |
| Slewing System | Self-developed, high drive force |
| Safety Features | Over-wind alarm, anti-slewing impulse equipment |
| Maximum Speed | 105 km/h |
| Lead Time | 20 days |
| Shipping Port | China main port |
| Payment | T/T |
| Cargo Box Capacity | 15 tons |
| Mobile crane on trailer | More mobile and self-propelled but has lower lifting capacity and less stability on uneven ground |
|---|---|
| Standard truck with external crane | No need for separate crane transport and setup, reduces project time and cost |
| Smaller truck mounted crane | Higher lifting capacity and longer boom reach but requires more space and stronger roads |
Generally 20 days after the advance payment is received. The exact date depends on crane configuration and chassis availability.
Yes. Both telescopic and knuckle boom types are available. Specify your preference at order stage.
T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.
Yes. Radio remote control is available as an optional fitment. It can be added during production or retrofitted later.
Send us your destination port and we will quote price, lead time and freight.
