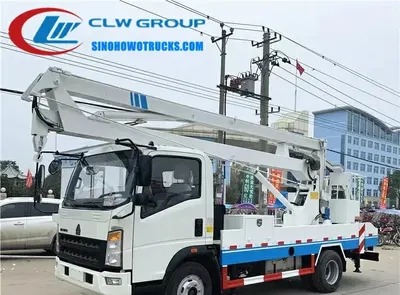

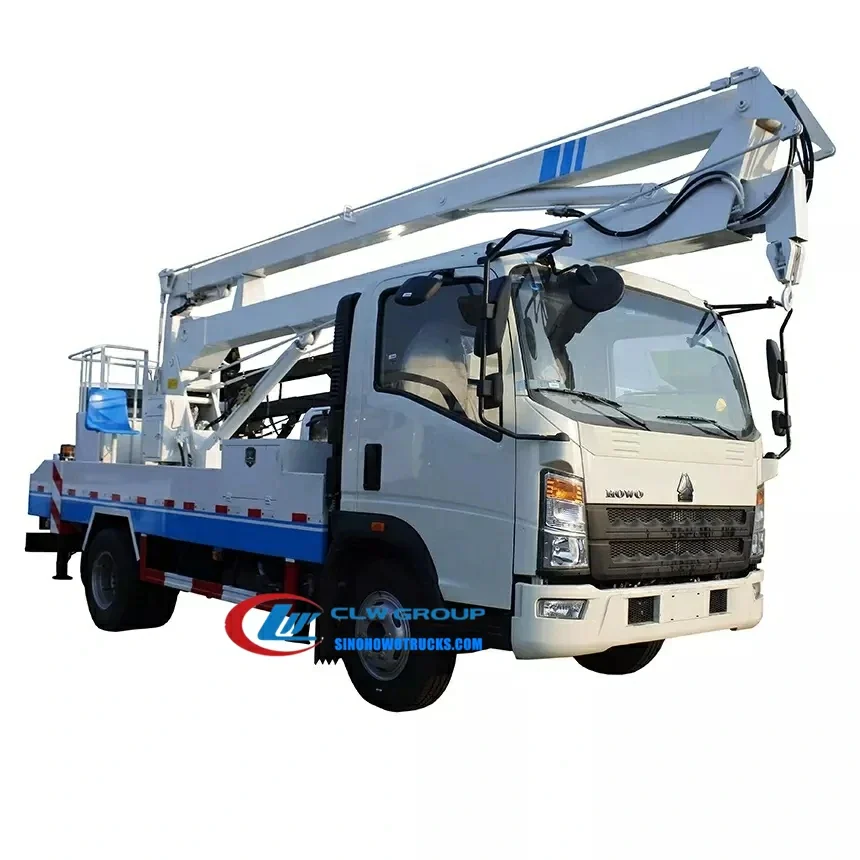

The Sinotruk HOWO 16m cherry picker boom lift is a 4x2 truck-mounted aerial platform built on a ZZ1067F341CD165 chassis with a 141 HP ISF3.8s4R141 engine and 6-speed manual gearbox. It is designed for utility and maintenance crews that need to access elevated work points in urban, industrial, and rural environments without setting up scaffolding or using ladders. The 14m maximum working height and 5.7m maximum outreach allow safe access to traffic signals, street lighting, signage, and tree trimming tasks. The platform supports two people and 200 kg of load, with 360-degree rotation and a 90-degree left/right swing capability. It is built for operation in challenging terrain with a 24-degree approach angle and 11-degree departure angle.
| Chassis Model | ZZ1067F341CD165 |
|---|---|
| Engine | ISF3.8s4R141, 141 HP, 3760 ml |
| Transmission | 6-speed manual with overdrive |
| Drive Configuration | 4x2 |
| Max Working Height | 14 m |
| Max Outreach | 5.7 m |
| Platform Capacity | 200 kg, 2 people |
| Platform Dimensions | 1100 x 570 x 1000 mm |
| Rotation | 360 degrees, 90 degrees left/right swing |

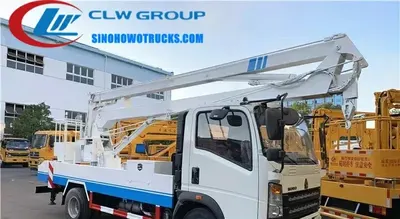

| Outriggers | 4 H-shaped hydraulic outriggers with front support |
| Overall Dimensions | 7400 x 2250 x 3150 mm |
| Wheelbase | 3360 mm |
| Approach/Departure Angle | 24° / 11° |
| Max Speed | 95 km/h |
| Tire Specification | 7.50R16 |
| Electrical System | 24V |
| Control System | Electric-hydraulic, wireless + wired + handle |
| Lead Time | 30 days |
| Shipping Port | China main port |
| Payment | T/T |
| Operation Control Modes | Wireless, wired, handle |
| Safety Devices | Relief valves, balance valves, double-way hydraulic locks, motor emergency system |
| Cage Material | Steel structure or reinforced fiberglass (insulated option) |
| 12m boom lift with 360° rotation | Shorter reach limits access to higher structures but is more maneuverable in narrow city streets |
|---|---|
| Fixed platform lift on a trailer | No mobility between sites but offers greater stability and longer working hours without refueling |
| Used imported cherry picker | Lower upfront cost but lacks long-term spare parts availability and technical support |
Generally 30 days after the advance payment is received. The exact date depends on chassis availability and the hydraulic component choice.
Yes. The standard cage is steel structure. Reinforced fiberglass with insulation is available on request.
T/T with 30 percent deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before the balance payment.
Yes. Hydraulic components can be selected from China or Italy. Specify your preference at order stage.
Yes. The chassis is ordered as left or right-hand drive to match local traffic rules. Confirm this at order stage.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts for two years. We provide 15 years of spare parts and technical support.
Send us your destination port and we will quote price, lead time and freight.
